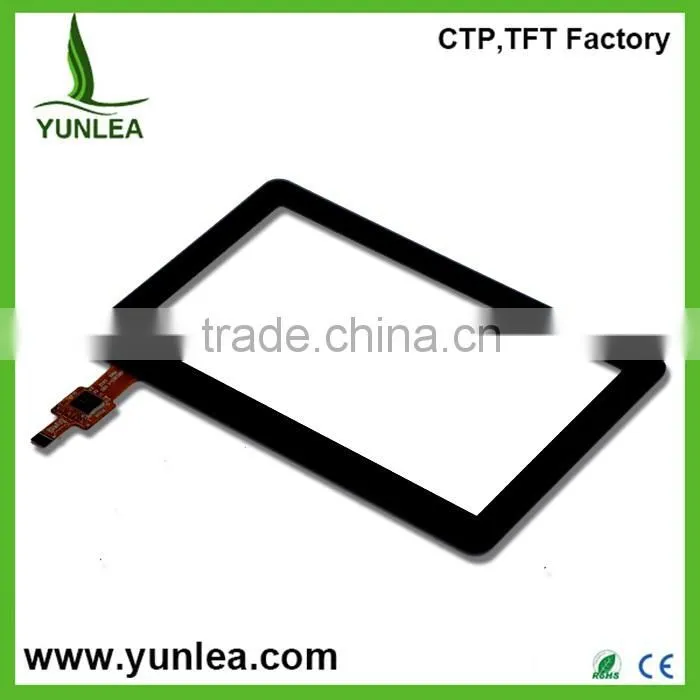

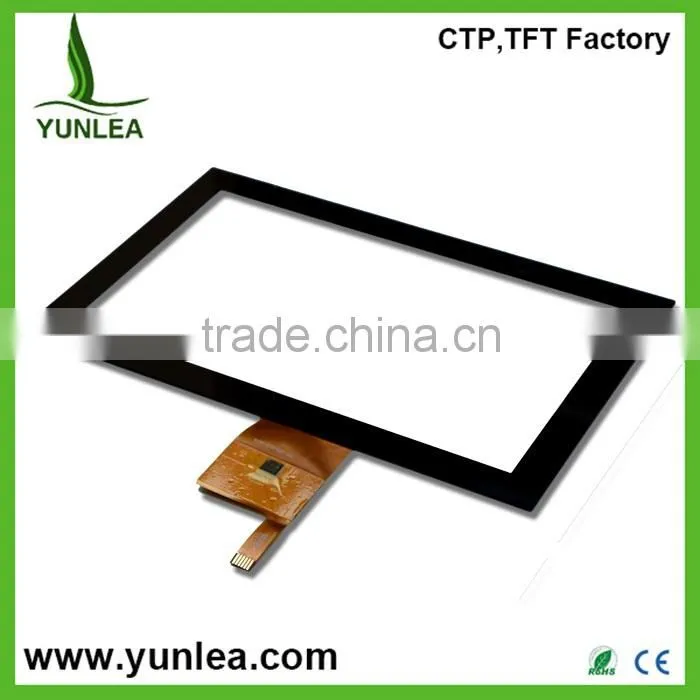

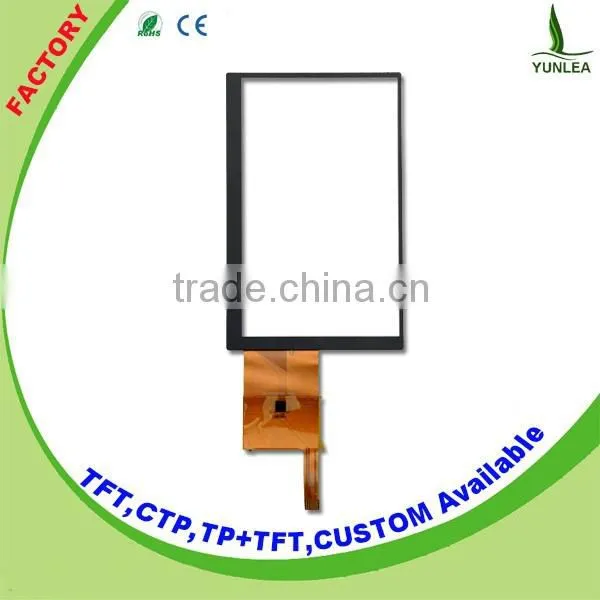

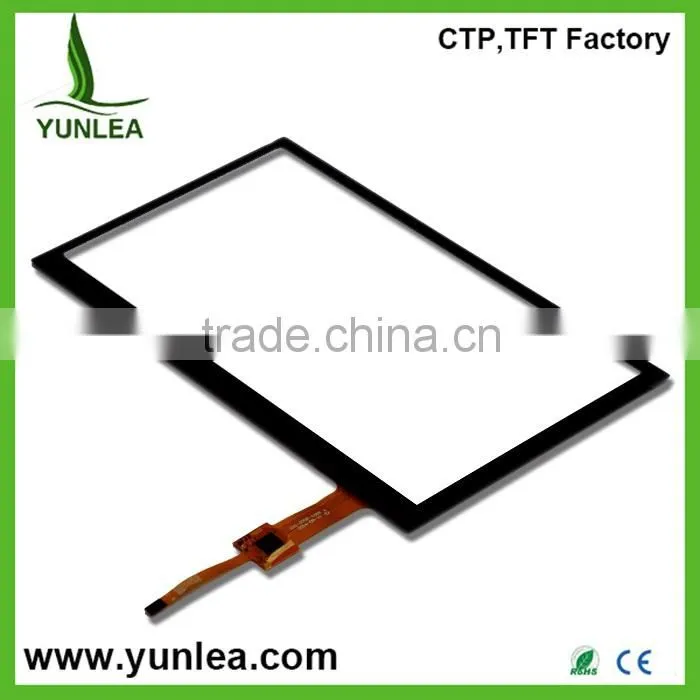

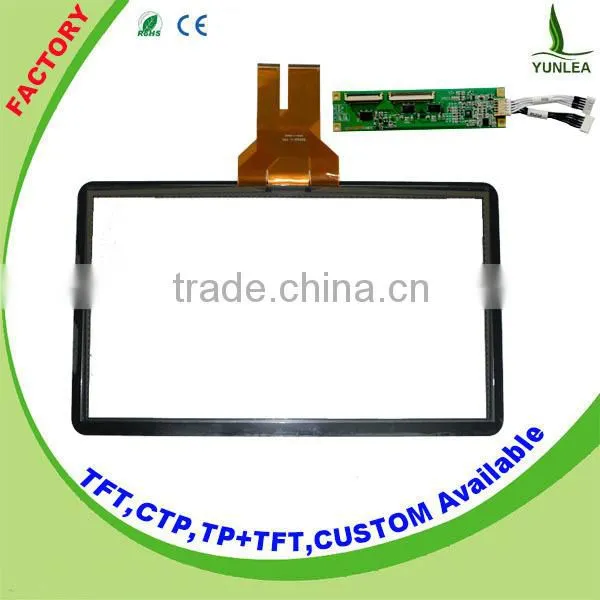

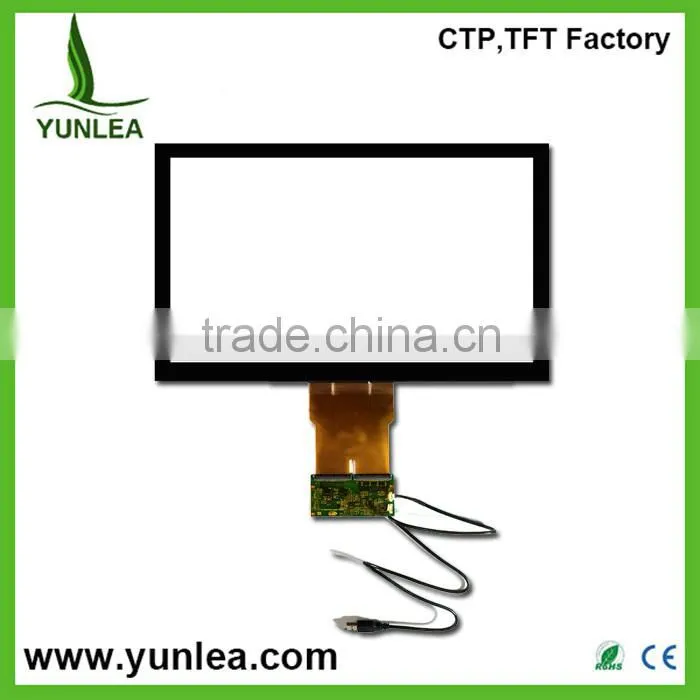

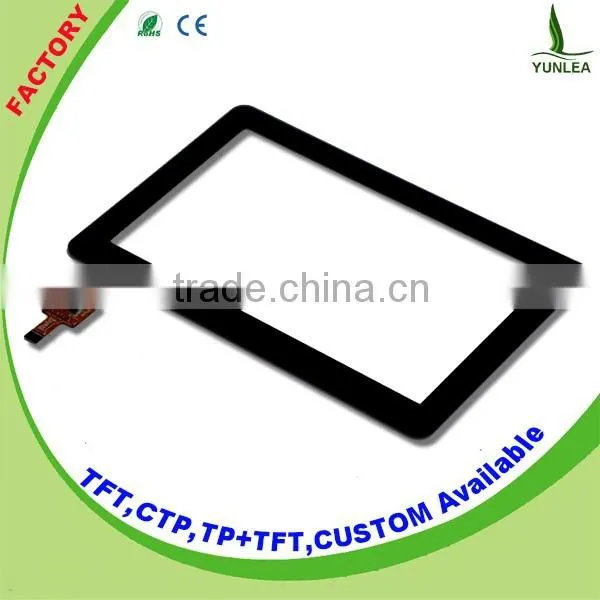

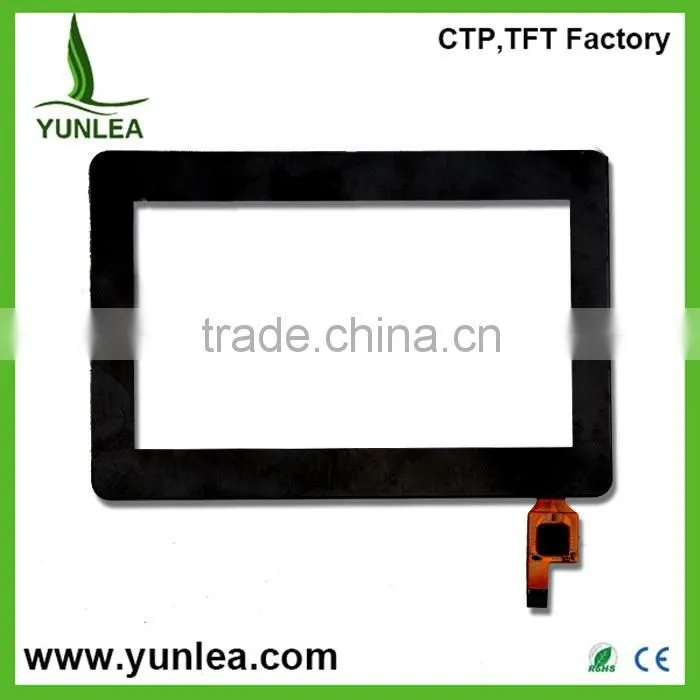

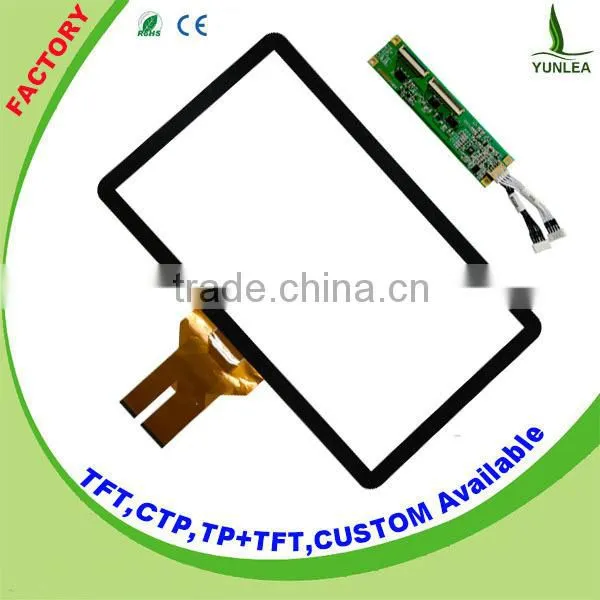

USB/I2C interface 2-10 touch points custom capacitive touch panel
Yunlea customized service for the capacitive touch panel as the following:
| Name | Custom Projected Capacitive Touch Panel (PCAP) |
| Size | 1.28 ~42 inch |
| Controller IC | Cypress, EETI, Atmel, Focaltech,Goodix, etc. |
| Operating system | Windows, Android, Linux, MAC |
| Working Voltage | 3.3V, 2.8V, 1.8V ,5V |
| Touch Points | 1~10 points with gesture |
| Interface | USB, I2C, RS232, SPI |
| Structure | G+G, G+F, G+F+F, OGS |
| Cover Glass Thickness | 0.55, 0.7, 1.1, 1.8, 2.0, 3.0, 4.0, 5.0, 6.0,7.0 mm |
| Surface Hardness | 6H, 7H |
| Cover Lens Brand | Corning, AGC, Schott, etc |
| Cover Lens Treatment | AG, AR, AF, Silk print, Punching, Chamfer |
| Special Function | Touch with water, Glove touch, Sunlight readable |
| Bonding Type | Optical bonding, Tapes bonding with TFT-LCD |
Yunlea standard 3.5 inch to 10.4 inch Capacitive touch panel :
Pictures |
Panel Size |
Part No. | Interface | Outline Dimensions | Structure | Touch Controller | No. of touch | Remarks |
|
3.5 inch | YL035CY03 | I2C | 66.86x94.94x1.3 | Glass+Glass | MSG2133A | 2 Points | Read More |
| 4.3 inch | YL043CY01 | I2C | 118x61.46x1.28 | Glass+Glass | MSG2138A | 3 Points | Read More | |
| 5.0 inch | YL050CY01 | I2C | 127.0x85.8x1.83 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 7.0 inch | YL070C701 | I2C | 163.5x99.6x1.43 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 10.1 inch | YL1012934 | I2C and USB | 251x 174 x 1.1 | Glass+Film+Film | GT9271 | 5 Points | Read More | |
| 10.4 inch | YL1042934 | I2C | 227X175.8X2.2 | Glass+Flim+Flim | EETI | 5 Points | Read More |
Standard 10.1 inch to 42 inch capacitive touch panel:
| Part Number |
Size (Inch) |
IC | Rate | Lens VA | Sensor | Interface | Touch Points | OS |
| YL-101Y2-V2 | 10.1 | EETI | 16:10 | 217.96x136.6 | 233.96x170.6 | USB,RS232,I2C | 2-10 | Win7, Win8, Win CE,Android,Linux |
| YL-104Y2-V2 | 10.4 | EETI | 4:3 | 236.20x160.40 | 253.02x177.40 | USB,RS232,I2C | 2-10 | Win7, Win8, Win CE,Android,Linux |
| YL-G121Y2-V2 | 12.1 | EETI | 4:3 | 246X184.5 | 280X210.5X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G150Y2-V2 | 15 | EETI | 4:3 | 305X229.01 | 251.79X323.1X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G156Y2-V2 | 15.6 | EETI | 16:9 | 344X194 | 362X222X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G170Y2-V2 | 17 | EETI | 4:3 | 338.92X271.34 | 363.92X301.34X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G173Y2-V3 | 17.3 | EETI | 16:9 | 383X216 | 425.9X254.6X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G185Y2-V2 | 18.5 | EETI | 16:9 | 410.8X231.4 | 430.8X412.8X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G190Y2-V2 | 19 | EETI | 4:3 | 377.32X302.06 | 402.32X334.06X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G215Y2-V2 | 21.5 | EETI | 16:9 | 478X269.8 | 508X271.8X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G230Y2-V2 | 23 | EETI | 16:9 | 511.18X288.42 | 531.18X324.42X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G236Y2-V2 | 23.6 | EETI | 16:9 | 525.5X297 | 545.5X333X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G270Y2-V2 | 27 | EETI | 16:9 | 598X336 | 640.X381X0.7 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G320Y2-V2 | 32 | EETI | 16:9 | 798.7X393.3 | 750X450X1.1 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE,Android,Linux |
| YL-G420Y2-V2 | 42 | EETI | 16:9 | 930.20X524.20 | 934.20X528.20 | USB,RS232,I2C | 2-10 | Win7,Win8,Win CE, Android, Linux |
1. Optical bonding solution(Sun readable solution):
2. Customizing Solution:
Why choose Yunlea?
(1)13000 Square meter factory,main for CTP and TFT ,larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE,ROHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome,12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
