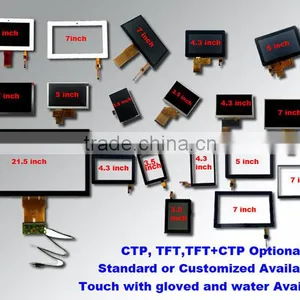

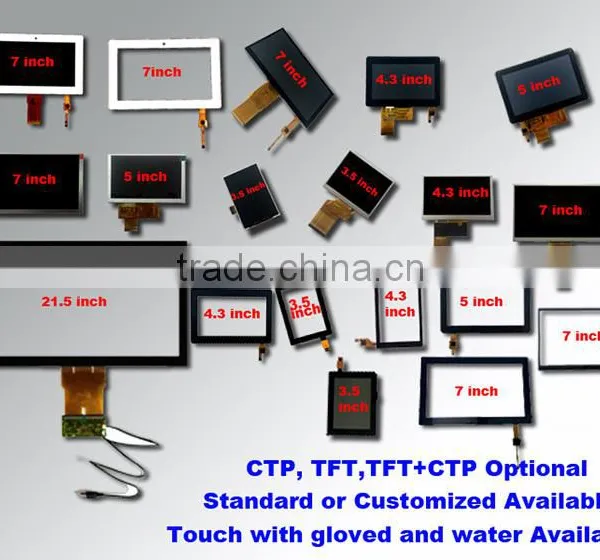

Yunlea Factory standard 2.8 , 3.5 , 4.3 , 5 , 7 inch capacitive touch screen panel
3.5 inch capacitive touch screen module specification:
| Item | Specification | Unit |
| Product name | 3.5 lcd capacitive touch screen module | |
| Part number | YL035MY01 | |
| Size | 3.5 | inch |
| Active area | 48.96x73.44 | mm |
| TFT interface | RGB 18 bit + SPI-3 | |
| Touch controller | MStar 2133A | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Operating temp | -20 to 70 | degree |
| Item | Specification | Unit |
| Size | 4.3 | inch |
| Model number | YL043MY01 | |
| product name | 4.3" tft lcd touch screen | |
| Type | LCD + CTP | |
| Active area | 95.04x53.86 | mm |
| Touch controller | MSG2138A | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Touch Points | 3 | points |
| Operating temp | -20 to 70 | degree |
| Item | Specification | Unit |
| Size | 5 | inch |
| Product name | 5" lcd capacitive touchscreen module | |
| Model number | YL050MY01 | |
| Type | LCD + CTP | |
| Outline Dimension | 127x85.8x4.93 | mm |
| Active area | 108x64.8 | mm |
| Resolution | 800x480 | dots |
| Brightness | 250 ~ 1000 cd/2 available | cd/m2 |
| Touch controller | FT5316 | |
| Interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Touch Points | 5 | points |
| Operating temp | -20 to 70 | degree |
| Item | Specification | Unit |
| Size | 7 | inch |
| Product name | 7 inch capacitive touch screen | |
| Type | LCD bonded capacitive touch screen | |
| Model number | YL070MY01 | |
| Active area | 154.08x85.92 | mm |
| Resolution | 800x480 | dots |
| TFT interface | RGB / TTL / LVDS | |
| Brightness | 360 ~1000 cd/m2 available | cd/m2 |
| Touch controller | FT5316 | |
| CTP interface | I2C | |
| Surface Hardness | 6H | |
| Transparency | 85%min | |
| Touch Points | 5 | points |
| Operating temp | -20 to 70 | degree |
Other hot selling touch screen module and touch screen
| Standard Capacitive Touch Screen Module(TFT bonded CTP) List: | ||||||||
| Pictures | Panel Size | Part No. | Resolution | Outline Dimensions | Active area | Brightness | Contrast Ration | Remarks |
|
3.5 inch |
YL035MY01 | 320xRGBx480 | 66.86x94.94x3.3 |
95.04x53.86 | 300 |
500:1 | Read More |
4.3 inch |
YL043MY01 | 480xRGBx272 | 114x77x4.48 | 95.04x53.86 | 340 | 400:1 | Read More | |
|
5.0 inch |
YL050MY01 | 800xRGBx480 | 127x85.8x4.93 | 108x64.8 | 250 | 700:1 | Read More | |
| 7.0 inch | YL070MY01 | 800xRGBx480 | 164.9x100x6.93 | 154.08x86.42 | 360 | 500:1 | Read More | |
| Standard Capacitive Touch Screen List: | ||||||||
Pictures |
Panel Size |
Part No. | Interface | Outline Dimensions | Structure | Touch Controller | No. of touch | Remarks |
|
3.5 inch | YL035CY03 | I2C | 66.86x94.94x1.3 | Glass+Glass | MSG2133A | 2 Points | Read More |
| 4.3 inch | YL043CY01 | I2C | 118x61.46x1.28 | Glass+Glass | MSG2138A | 3 Points | Read More | |
| 5.0 inch | YL050CY01 | I2C | 127.0x85.8x1.83 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 7.0 inch | YL070C701 | I2C | 163.5x99.6x1.43 | Glass+Glass | FT5316 | 5 Points | Read More | |
| 10.1 inch | YL1012934 | I2C and USB | 251x 174 x 1.1 | Glass+Film+Film | GT9271 | 5 Points | Read More | |
| 10.4 inch | YL1042934 | I2C | 227X175.8X2.2 | Glass+Flim+Flim | EETI | 5 Points | Read More |
|
The solution and application of all touch screen and touch screen module
Why choose Yunlea?
(1)13000 Square meter factory,main for CTP and TFT ,larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE,ROHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome,12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
