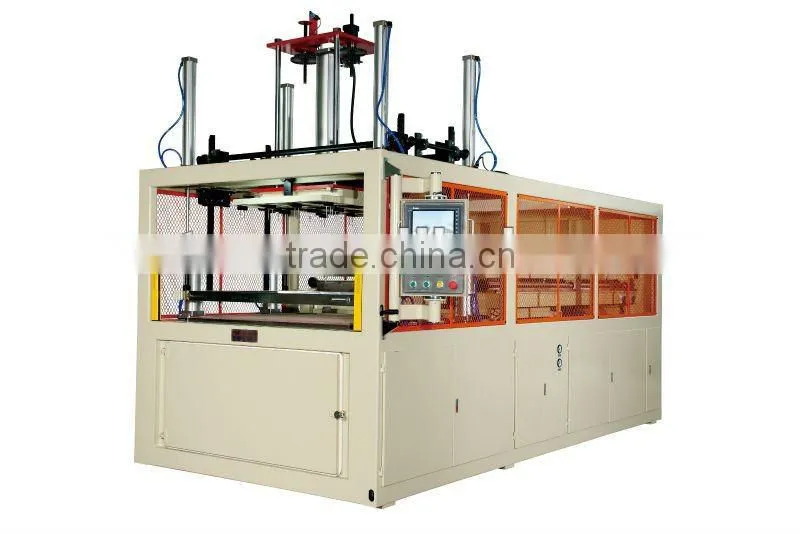

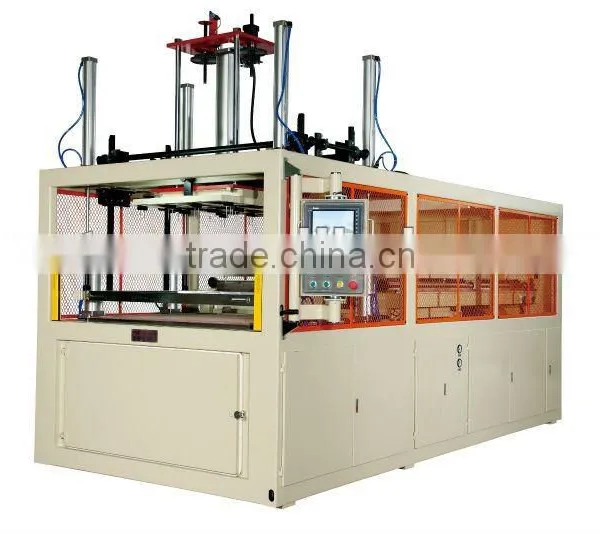

Help CenterXCH130/110/13.5 Thick Sheet Vacuum Forming Machine
Related Products
-
QZC46-71/54-CWF3 Full Automatic Egg Tray Making MachineNegotiableMOQ: 1 Set -
QZC50-76/36-CWF3 Automatic Plastic Container Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Thermoform Plastic Container Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Auotomatic Paper Cover Making MachineNegotiableMOQ: 1 Set
-
QZC46-71/54-CWF3 Automatic High Speed Thermoforming Plastic Cup Lid Making MachineNegotiableMOQ: 1 Set
Specifications
1,PLC touch screen2,Lower energy consumption,long service life
3,Mechanical feeding device,saved labour intensity
Feature Function:
01. Mechanical , Pneumatic and Electrical combine. All action are controlled by PLC programme , touch screen input , easy and convenient .
02. Sheet loading easiy , save up the waste sheet .
03. Heater Motor Driven , Inverter Control and high speed and precision .
04. Heater with Intellectual Temperature Control System , autocompensation , secion individualcontrol , digital touch screen input , mini-adjust , precision and fast ( 0-400 degree takes 5 min ) . stable and no effect by outter voltage . Lower power consumption , ( save up 15% ) , longer life of heater with auto heater checking function .
05. Suitable for Male Mold Forming , Reliable and high qaulity of finished products .
06. Up mold motor stroke electrical adjust , convenient .
07. Machine with fan cooling structure , fast forming .
08. Counting , automatic stop or advance alarm & stop , with record function , can storemore than 230 production data .
09. Up Mold with self-lubrication function , reliable and longer life .
10. Mold with clamp structure and synchromesh gear chain structre , longer life of cylinder .
11. Operation with safe protection function to protect the safe of worker for operation .
Technical Parameter:
| Max Forming Area | 1300mm*1100mm | |
| Min Forming Area | 1200mm*1000mm | |
| Sheet specifications (MAX) | 1370mm*1170mm | |
| Thickness of sheet applied | 0.8-3mm | |
| Max molding heigh | 135mm | |
| Capacity | 1-3(Times/min) | |
| Gas Source | Air Vol(m3/min) | ≥2 |
| (MPa) Pressure | 0.6Mpa(inlet 0.8-1Mpa) | |
| Vacuum Pump ( Outlay ) | Busch R5 0100 | |
| Power | 380V/ 220V 50Hz | |
| General Power(kw) | 64KW | |
| Dimension(L×W×H)(mm) | 4200*2410*2900 | |
| Weight(kg) | 4000 KG | |
Component:
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Inverter | Taiwan Delta |
| Feeding Motor(0.75kw) | CHINA |
| Heater | CHINA |
| Solid State Relay | CHINA |
| Contactor | German Siemens |
| Thermo Relay | German Siemens |
| Relay | JAPAN Omron |
| Vacuum Pump | Busch R5 0100 |
| Pneumatic | KOREA |
| Cylinder | CHINA |
| Fan Blower | CHINA |
