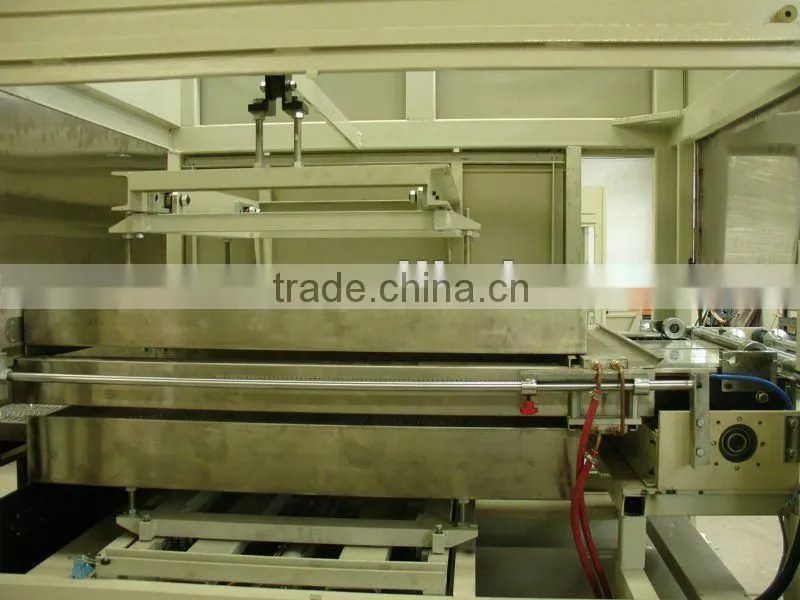

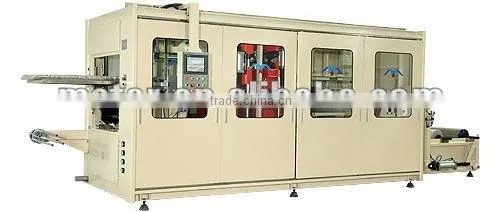

Help CenterQZC50-76/36-CWF3 Automatic Thermoform Plastic Container Making Machine
Related Products
-
QZC50-76/36-CWF3 Auotomatic Paper Cover Making MachineNegotiableMOQ: 1 Set -
QZC46-71/54-CWF3 Automatic High Speed Thermoforming Plastic Cup Lid Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Thermoform Egg Box Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Thermoform Lid Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Thermoform Plastic Lid Making MachineNegotiableMOQ: 1 Set
Specifications
1.fully automatic forming,2,fully computerize
3,cutting,stacking in line
Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Feature Function :
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating,Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won’t effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding Chain Width separate adjust and Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labour.
Technical Components
PLC |
Taiwan Delta |
Touch Screen Monitor ( 10.4″inch /Color ) |
Taiwan Delta |
Feeding Servo Motor(3.0kw) |
Taiwan Delta |
Stacking Servo Motor (1.5kw) |
Taiwan Delta |
Heater (72PCS ) Heater |
GERMAN |
Solid State Relay (72 PCS ) |
CHINA |
Contactor |
Germany Siemens |
Thermo Relay |
Germany Siemens |
Relay |
JAPAN Omron |
Vacuum Pump |
Busch R5 0040 |
Pneumatic |
JAPAN SMC |
Cylinder |
CHINA |
Technical parameters
Sheet Width (mm) |
500-760 |
|
Sheet Thickness (mm) |
0.2-1.5 |
|
Max Roll Sheet (mm) |
600 |
|
Forming Mold Stroke (mm) |
2×155 |
|
Cutting Mold Stroke (mm) |
155 |
|
Cutting Base Stroke (mm) |
Max 100 |
|
Max Forming Area (mm2) |
720×360 |
|
Max Forming Depth / Height (mm) |
80/50 |
|
Max Cutting Force(kgf) |
30000 |
|
Working Capacity ( Cycle / min) |
4-18 ( Max capacity is 18 Cycle/ Per Min ) |
|
Forming Cooling |
Water Cooling |
|
Air Source |
Air (m3/ min) |
≥5 |
Air Pressure (MPa) |
0.8 |
|
Vacuum Pump |
Busch R5 0040 |
|
Power |
3 Phase 4 Line 380V50Hz |
|
Heater (kw) |
43.2 |
|
Max Power (kw) |
49.4 |
|
Max Dimension (L×W×H) (mm) |
7400×2100×2370 |
|
Max Weight (kg) |
≈7500 |
|
