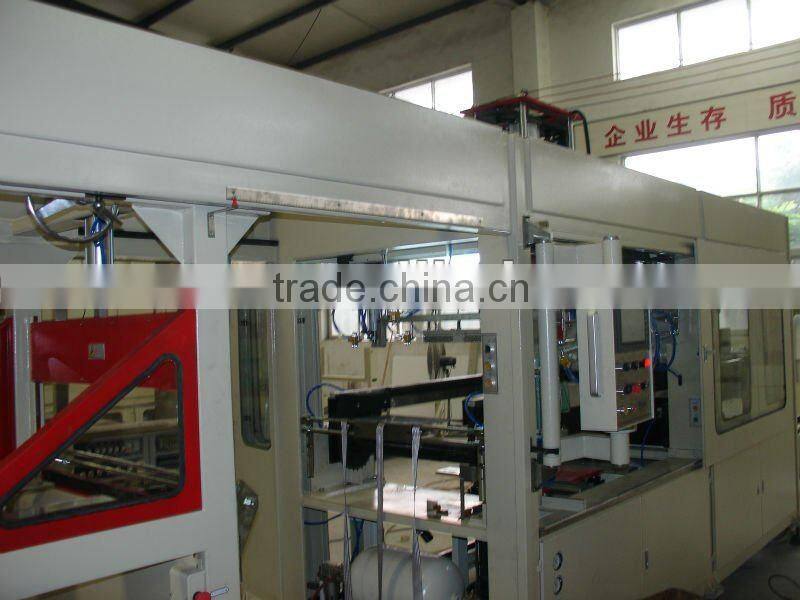

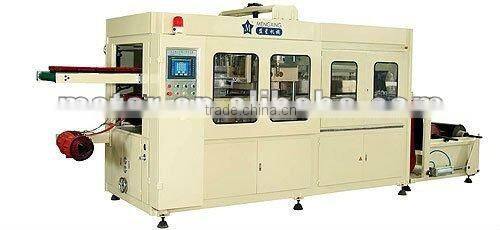

Help CenterQZC46-71/54-CWF3 Automatic High Speed Thermoforming Plastic Cup Lid Making Machine
Related Products
-
QZC50-76/36-CWF3 Automatic Thermoform Egg Box Making MachineNegotiableMOQ: 1 Set -
QZC50-76/36-CWF3 Automatic Thermoform Lid Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Thermoform Plastic Lid Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Full Automatic Plastic Cover Making MachineNegotiableMOQ: 1 Set
-
QZC50-76/36-CWF3 Automatic Plastic Egg Tray Making MachineNegotiableMOQ: 1 Set
Specifications
Full Automatic and ComputerizedFull PLC Touch Screen operation
Forming,Cutting, Stacking, Three Working Station In One Line
Usage:

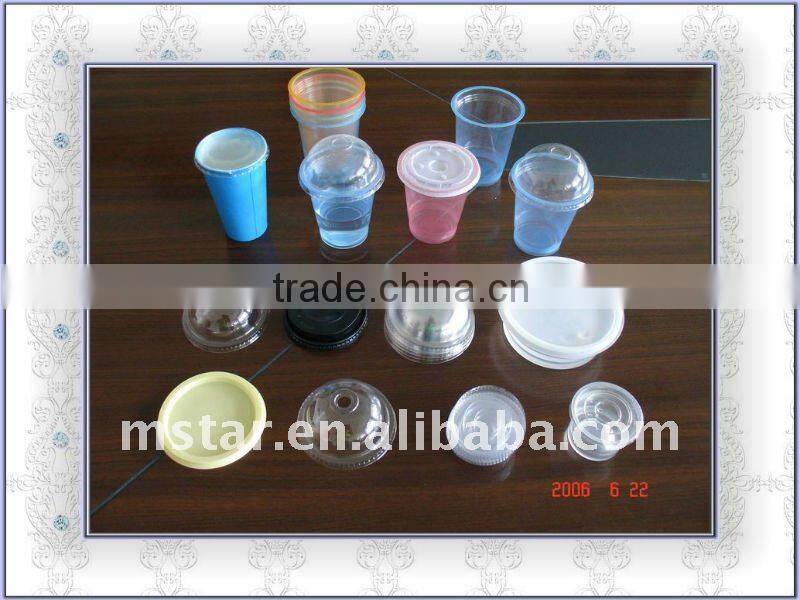

The automatic plastic cup lid making machine is designed for producing various of open-wide plastic containers , such as food trays , plastic trays , cosmetic trays , blister , clamshells , plates and other plastic related items .
Suitable Sheets:
PVC,PP,PS,HIPS,PET,APET,PETG , Etc
Feature Function:
* All actions are controlled by PLC.Touch Screen (HMI) Operation, Easy and Convenient . All production data can record and recall any time .
* Production counting , which can auto-stop or alarm advance , it also has store function , which can store 230 production data .
* Inverter Feeding,Feeding Length Stepless adjust , High Speed ( Max. Sheet Feeding 1000mm/ s) , Accurate and Steady .
* Computer Intellectual Control System , which has the advantage of maintaining temperature stable , lower consumption , long life span . Individual heater control .
* Auto Far Infrared ray Ceramic heater & Solid State Relay self-checking function .
* Heater Stove Tri-section heating .
* Upper/Down Mold Forming
* Positive, Negative Forming
* Forming , Trimming / Same position
* Finished Products Stacked & Auto counting
* Edge Sheet material & Auto rewinder function
* Feeding With motor adjust
* Feeding Chain Width can separate /synchronization electromotion adjustment.
* Heater Stove Auto-push Structure , it can push out under non-stop production , which can save the sheet material .
* Cylinder Sheet Loading Structure , easy for install the sheet .
Technical Parameter
Model NO. |
QZC46-71/54-CWF3 |
|
Adjustable Sheet Width (mm) |
460-710 |
|
Sheet Thickness (mm) |
0.2-1.5 |
|
Max Roller Sheet Dimension (mm) |
600 |
|
Mold ( Die) Stroke (mm) |
150 |
|
Mold ( Die ) Base Stroke (mm) |
93 |
|
Max Forming Area (mm2) |
680×400 |
|
Max Forming Height/Depth (mm) |
50 |
|
Max Cutting Force(kgf) |
2500 |
|
Capacity (shot/ min) |
4-10 |
|
Cooling Pattern |
Water-cooling |
|
Gas source (outer) |
Air (m3/ min) |
≥3 |
Pressure (MPa) |
0.8 |
|
Vacuum Pump(Outer) |
Busch R5 0100 |
|
Power |
3 Phase 4 Line 380V50Hz |
|
Heater (kw) |
36 |
|
General Power (kw) |
42 |
|
Dimension (L×W×H) (mm) |
6225×1650×2450 |
|
Machine Weight (kg) |
5000 |
|
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding Servo Motor(3.0kw) | Taiwan Delta |
| Stacking Servo Motor (1.5kw) | Taiwan Delta |
| Heater (72PCS ) Heater | GERMAN |
| Solid State Relay (72 PCS ) | CHINA |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | JAPAN Omron |
| Vacuum Pump | Busch R5 0040 |
| Pneumatic | JAPAN SMC |
| Cylinder | CHINA |
