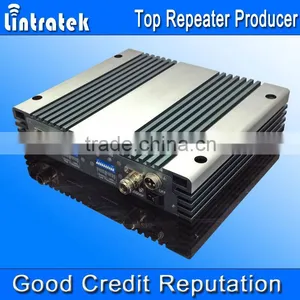

Help CenterDual Band Selective Amplifier With Long Distance Wireless Antenna
Related Products
-
Dual Band Selective Repeater Good for Mobile Phone Operator Use RepeaterNegotiableMOQ: 2 Pieces -
Selective Gsm Repeater Cheaper PriceNegotiableMOQ: 1 Piece
-
GSM Selective Band Signal Repeater Dcs/wcdma 3g RepeaterNegotiableMOQ: 1 Piece
-
27dbm Output Power 5000sqm Work GSM Selective Band Singal Booster Amplifier KS27C-GSMNegotiableMOQ: 20 Pieces
-
850 Coverage 5000sqm Work Outpower 27dbm Gain 70db Special Selective Band CDMA Signal Amplifier KS27C-CDMANegotiableMOQ: 20 Pieces
Specifications
good receiver booster1. Cover 300-2000 m2.
2. ALC,MGC
3. gain 70dbi
4. output power 20dbm
dual band selective amplifier with long distance wireless antenna
Why do you need to buy repeater/booster?
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- Parking lots, tunnels
- Big stores, office buildings
- Cars, boats etc.
- House in remote areas
How can repeater bring your mobile phone better signal?
-
•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off
A regular cell phone repeater consists of: (full kit)
-
- 1 - Outdoor antenna log periodic antenna(or wall mounted antenna,yagi)
- 2 - Indoor Omni ceiling antenna (panel antenna)
- 3 – Power adapter
- 5 - User manual
- 6 - Cell phone repeater
- 7. 10 meters outdoor cable and 1 meter indoor cable
Specification should care about
Model No |
KS20E-GD |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
WCDMA |
customize |
:customize |
Output Power |
20±2dBm |
20 ±2dBm |
|
Gain |
65±2 dB |
70±2dB |
|
Bandwidth |
25M/65M |
||
Ripple in Band |
WCDMA≤5dB |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:100~240V, 50/ 60Hz;DC:5V 1A |
||
Power Consumption |
< 5W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female N |
||
Dimensions (D*W*H ) |
250*220*53 (mm) |
||
Net weight |
2.5Kg |
||
Packing size (D*W*H ) |
280*250*83mm |
||
Gross weight |
< 3.5Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
After- Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
6. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
