GSM Selective Band Signal Repeater Dcs/wcdma 3g Repeater
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Lintratek
Model Number:
KS20E-GSM
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
27dbm Output Power 5000sqm Work GSM Selective Band Singal Booster Amplifier KS27C-GSMNegotiableMOQ: 20 Pieces -
850 Coverage 5000sqm Work Outpower 27dbm Gain 70db Special Selective Band CDMA Signal Amplifier KS27C-CDMANegotiableMOQ: 20 Pieces
-
Lintratek Brand 3G WCDMA 2100 10 Dbm Selective Band Repeater Supplier in China Signal Booster Mobile Network SolutionNegotiableMOQ: 5 Pieces
-
2000-5000sqm Work High Gain 70db GSM900/1800/2100MHZ Trip-Band Repeater KW24C-GDWNegotiableMOQ: 1 Piece
-
GSM Globe & Smart Signal Booster / Repeater / AmplifierNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Lintratek
Model Number
KS20E-GSM
Product Description

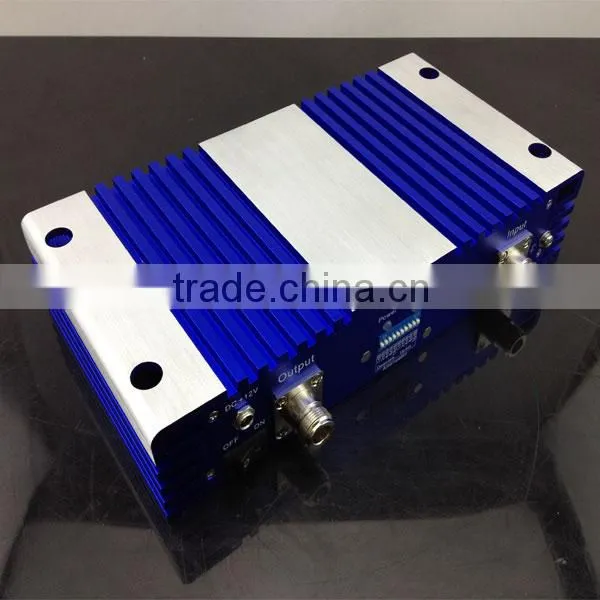

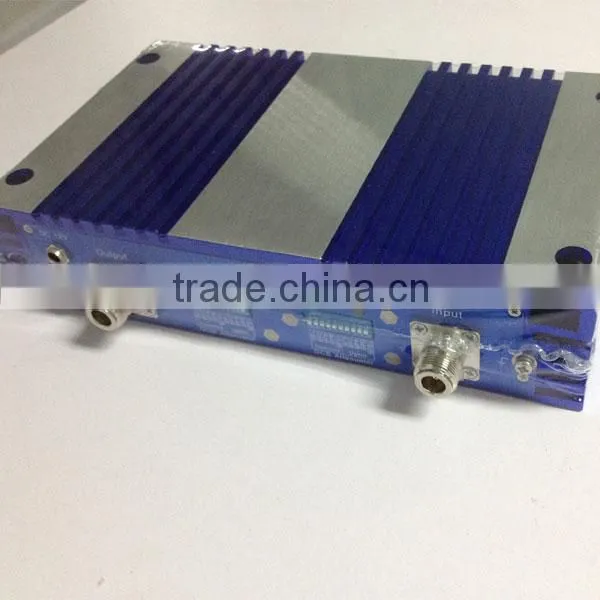

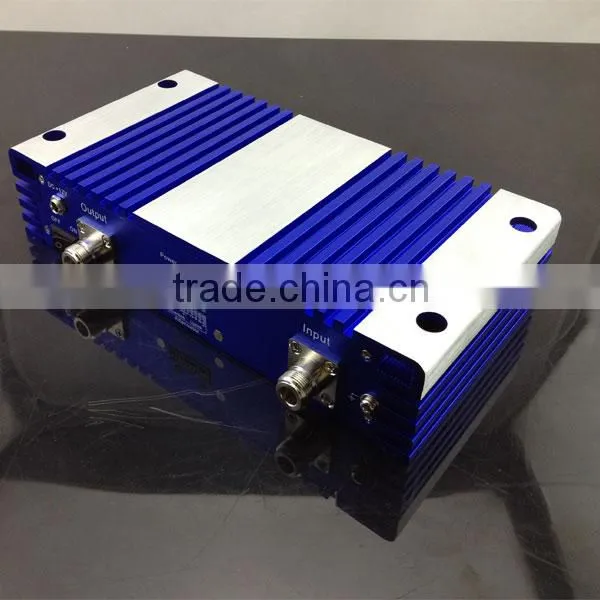

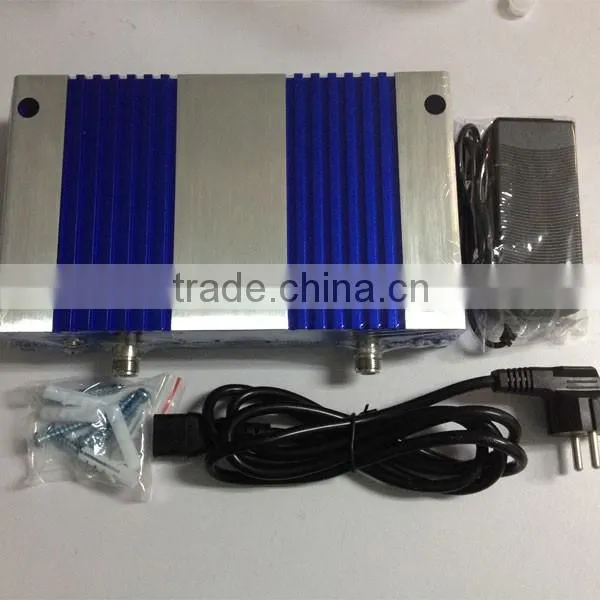

GSM selective band signal repeater dcs/wcdma 3g repeater
1.Built-in AGC,MGC function
2.Low power consumption
3.Elegant and compact design
Specification
| Model No | KS20E-GSM | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 890-915/1710-1785/1920-1980MHz | 935-960/1805-1880/2110-2170MHz | |
| Output Power (ALC) | 15±1dBm | 20 ±1dBm | |
| Gain | 65±2 | 70±2dB | |
| Bandwidth | Wide Band | ||
| ALC | ≤ 2 | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -20 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 7 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC110V~220V DC+9V/3A | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||

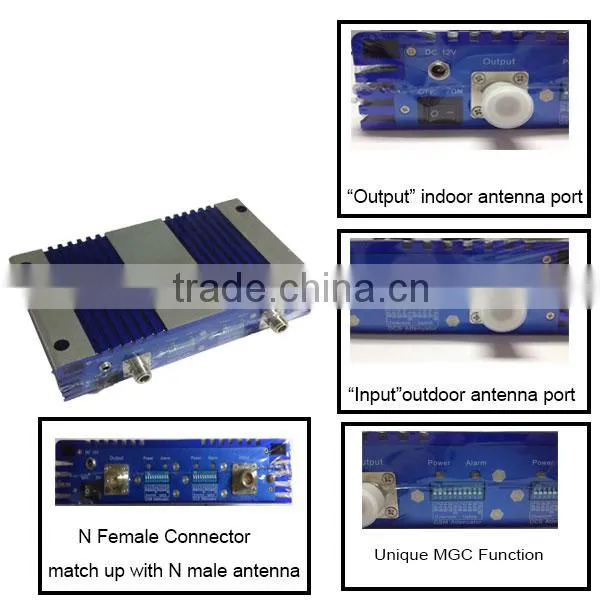

| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 250*165*53 (mm) | ||
| Weight | 2.5KG | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
