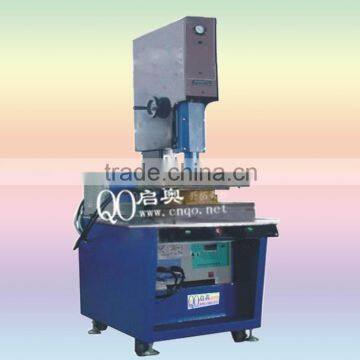

Speaker mesh implant machine, high frequency horn mesh welding machine
- 100 Piece / Pieces per Month
- shenzhen
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Guangdong, China | Brand Name: | QO | Model Number: | QO-15KWLB |
Voltage: | 110V/220V/380V/Customize | Power: | 15KW | Frequency: | 50-60HZ |
Welding Area: | 1-18mm | Dimensions: | 1790*1140*1500mm | Weight: | 25-500KG |
Usage: | Plastic Welding | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
First, the high-frequency speaker mesh implant machine Introduction:

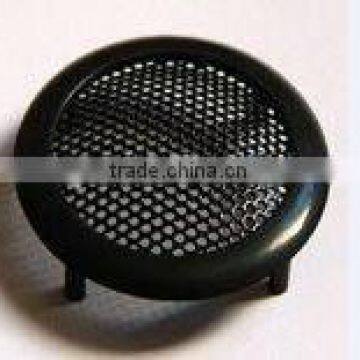

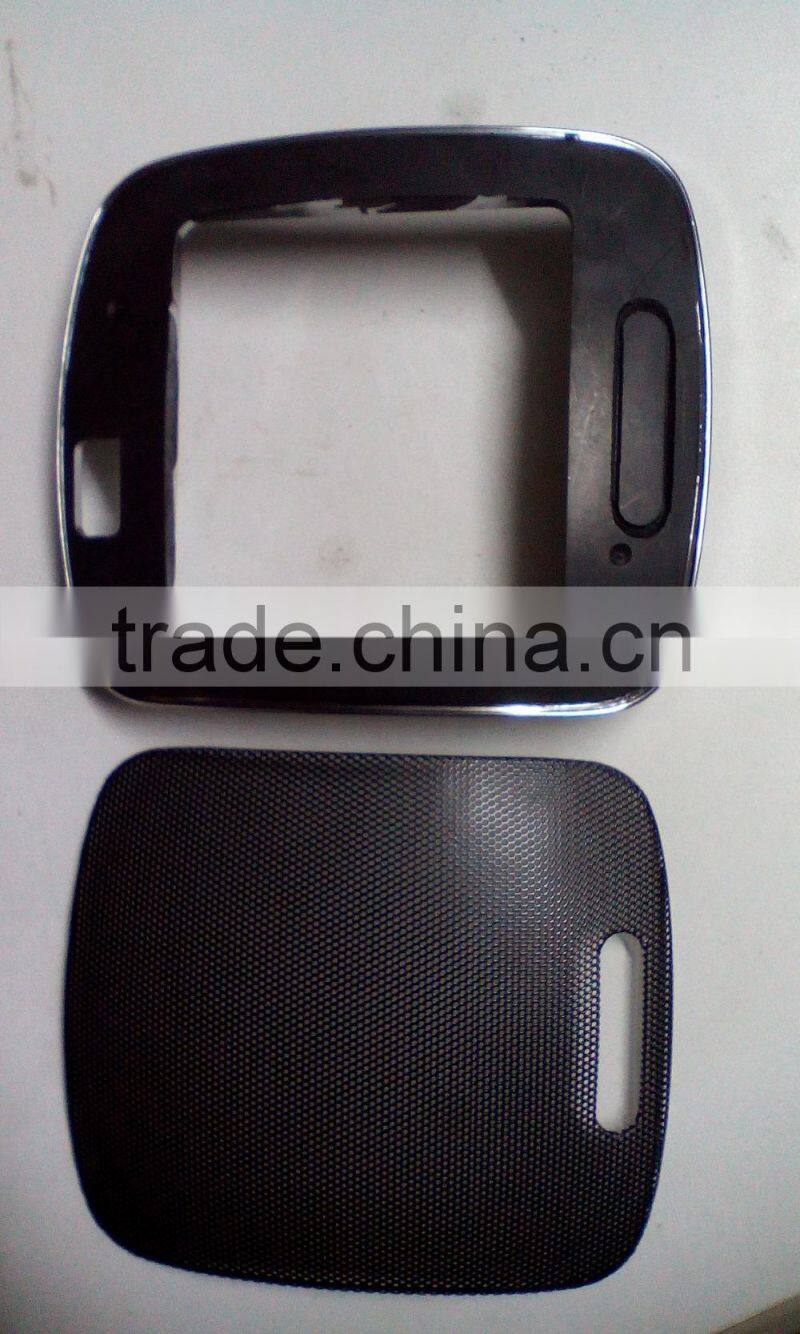

High frequency speaker mesh implant machine, also known as high-frequency speaker mesh implant or said welding machines, welding machines. Mainly the use of frequency induction heating machine rapid heating, the horn mesh or metal pieces instantly reach the melting temperature of the plastic, and then through the machine pressure to achieve the speaker mesh or metal or plastic implants in said welding results. Frequency induction heating machine high frequency machine is referred to as the metal material is heated the most efficient and fastest, low energy saving type of induction heating equipment. Wide range of applications.
Second, the high-frequency speaker mesh implant machine features:
Easy installation: just connect the power, the product can be used molds and access to water;
Simple: a few minutes to learn;
Power consumption: energy-saving equipment than the old-fashioned tube about 70%, less power consumption, the less the workpiece;
Using a wide range: all kinds of metal materials can be heated products, metal parts of all kinds of shapes (which can replace the removable mold according to the different shape of the workpiece), and then the plastic pieces fused, to implant welding results.
Use speed: the fastest heating rate of less than one second, speed, speed can be adjusted to control, pressing time is also about containing the nose up and down 1-2 seconds;
High frequency speaker mesh implant machine protection-all: with over-voltage, overcurrent, overheating, water shortages, and other alarm indicator, and automatic control and protection
Temperature controlled: By setting the heating time to control the temperature of heating the workpiece implanted depth, this can be put on the heating temperature control to a technical point
Third, the high-frequency speaker mesh implant machine specifications:
Product Type: QO-15KWLB
Input Power: 15KW
Input voltage: 220V
Oscillation frequency: 30-80KHZ
Output current: 200-1200A
Voltage Board Size: 200 * 400mm
Maximum pressure: 200KG
Time control: 1-99S
Water temperature requirements: Within 40 degrees
Demand pressure: 0.06Mpa-0.12Mpa 7.3 L / min
Welcome to buy Kai Austrian high-frequency speaker mesh implant machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!
.
