Semi Auto PVC Cylinder Curling High frequency Machine Introduction:
Cylinder curling machine, just as its name implies is used as the volume both ends of the cylinder or single head side of the machine, but here refers to the cylinder is mainly plastic cylinder, including such as: PP, PVC, PET and other plastic sheet holds good drum roll up of the metal or hard plastic cylinder, the machine doesn't work.The production principle of the cylinder curling machine, use a metal mold, processing the circular ring groove, cylinder after preheating, first into the already heated mold, after again after a certain pressure, pressure to side slowly inward volume approach, the cylinder to form a good circular coil, the cylinder mouth become beautiful and smooth.Cylinder curling machine is usually with the cylinder machine, cylinder end of welding machine.
Machine category:
- Automatic cylinder curling machine
- 2.Semi-automatic crimping machine
- 3.Plastic Thermoforming Machine
Design Features:
1.Automatic Cylinder Curling Machine can process cylinder edge curling with different length, diameter and thickness
2.Automatic, and wonderful performance
3.Suitable for materials like PVC,APET,PETG .etc.
4.Special adjustment is available upon customer's requirement
Features:
PLC precision control circuit,auto overload protection system.
Taiwan high precision decollator,zero error.
With digital code switch,1/100 accurately set quadruple point balance adjustment,easy to regulate horn.
High Q value transducer, big output power.
Idle load with resonance,no need regulate frequency of the horn.
Upright column,cylinder choice,guide bearing,accurate vernier regulation. Stroke regulated by turbine rotary device which solve the regulating abuse of the common equipment.
Alloy steel amplitude transformer,sound wave strong and stable.
The welding mould with the material of 7075,6064 aluminium alloy,durable in use.
Electronic parts from Italy,Japan,America,Korea,Taiwan,reliable performance. One-piece big power equipment,suitable for high desired impact of products.
Auto protective layer device,according to the welding surface decide whether need this device or not.
Technique Specifications:
Model:QO-5KWJBS
Material:PVC,APET,PETG .etc.
Power:5000W
Diameter:Within300mm
Length:Within 300mm
Cylinder thickness:0.17mm-0.45mm
Speed:4sec/piece

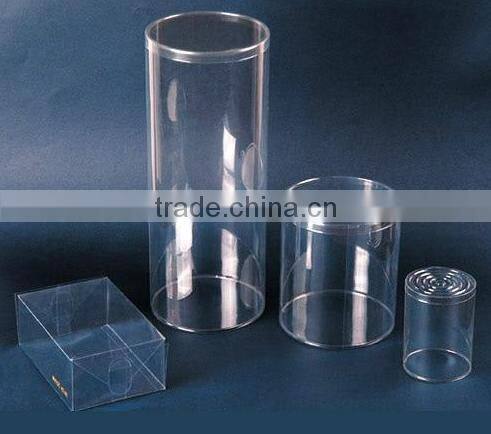

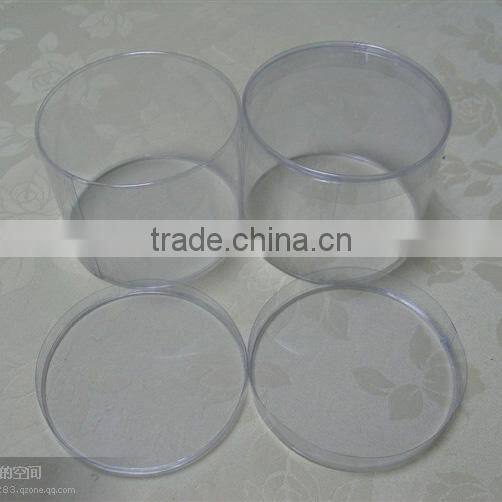

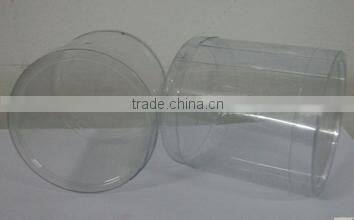

Product sample:
| Packaging Details: | wooden case, fumigation-free material |
|---|---|
| Delivery Detail: | 20 working days after payment |
Shenzhen QI AO Machinery Co., Ltd. is a professional factory direct high frequency, high frequency machine, high frequency fusing machine, high frequency welding machine, blister packing machine, blister sealing machine, cylinder machine, cylinder curling machine, cylinder welded bottom machine vacuum packaging machines, skin packaging machines, shrink packaging machines, balers, packaging equipment and ultrasonic, ultrasonic plastic welding machine, ultrasonic welding machine, ultrasonic spot welding, ultrasonic welding machines, high frequency welding machine, High frequency metal mesh preparetions machine, high frequency heating machine, welding equipment, high-frequency furnace.
