Ultrasonic welding machine

A, 20K ultrasonic welding machine, ultrasonic plastic welding machine principle:

        20K ultrasonic welding machine, ultrasonic plastic welding machine by the ultrasonic generator 50/60 Hz current into 15KHZ, 20KHZ, 35KHZ kHz high frequency electrical energy is converted into electrical energy by high frequency ultrasonic transducer again be converted into an equivalent frequency mechanical movement, followed by a set of mechanical movement can be changed amplitude modulator means is transmitted to the ultrasonic horn. Welding head will receive the ultrasonic vibration energy is transmitted to the workpiece to be welded joint. In this region the ultrasonic vibration energy is converted into heat by way of high-speed friction, the plastic melt. Ultrasonic plastic welding machine welding time and welding head pressure is adjustable amplitude is determined by the transducer and horn.

    Two, 20K ultrasonic welding machine, ultrasonic plastic welding machine Category:

    A, 20K ultrasonic welding machine, ultrasonic plastic welding machine called ultrasonic machines, ultrasonic plastic welding machine according to power and performance is mainly divided into:

    1, low-power high-frequency, such as: QO-2830 handheld spot welder, handheld hot beads machine!

    2, high-power high-frequency machines, such as: high-precision welding of 800W 28K, 35K, etc., 1000W desktop, split ultrasound machine.

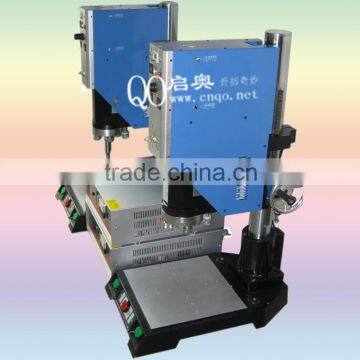

    3, medium frequency and power of popular models, such as the commonly used 20K, 1500W machine, 20K, 2000W of split-in-one machine

    4, low frequency high-power machines, such as 3200W. 4200W of one machine!

    B, according to the frame structure is divided into a handheld ultrasound machine, split ultrasonic plastic welder with integrated ultrasonic welding machines and automatic rotary ultrasonic welding machines

    C, according to the operation mode, the main points handheld, manual and automatic ultrasonic machine.

    Three, 20K ultrasonic welding machine, ultrasonic plastic welding machine features:

    Machine CNC machining, high precision

    New and improved, more optimized performance

    Original piezoelectric ceramic transducer, output strong and stable

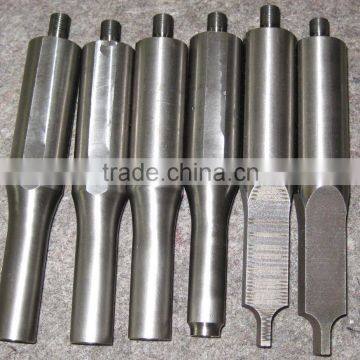

    Titanium Horn, durable

    FM and frequency of automatic compensation circuit

    Debug Settings soft-start circuitry to prevent damage to the mold

    A full set of high-quality imported parts assembly, quality assurance

    High welding efficiency, low non-performing

    Four, 20K ultrasonic welding machine, ultrasonic plastic welding machine uses:

    Ultrasonic welding: ultrasonic vibration as ultrasonic welding mold, the ultrasonic energy is conducted to the plastic surface of the weld, resulting in local temperature, so that the plastic surface of the melt. Under pressure ultrasonic welding machine, so that the two pieces of plastic to weld, beautiful, strong effect.

    Ultrasonic implants: the nut screw or other metal into the plastic parts. Through ultrasound machine ultrasonic energy transmitted to the metal. After subjected to high heat vibration, ultrasound machine at a pressure of the metal was embedded directly into the plastic inside.

    Ultrasonic spot welding: the use of ultrasound machines small welding head, the two pieces of plastic into multiple spot welding, or welding head row of dentate direct pressure on the two plastic parts, so as to achieve the effect of ultrasonic spot welding.

    Ultrasonic riveting: metal and plastic or different plastic two properties joined together, can make use of ultrasound machines riveting, welding pieces so hard brittle, beautiful, strong.

    Ultrasonic molding: the use of ultrasound machines will instantly melt plastic parts molding, when the plastic solidified, metal or other materials can plastics firm.

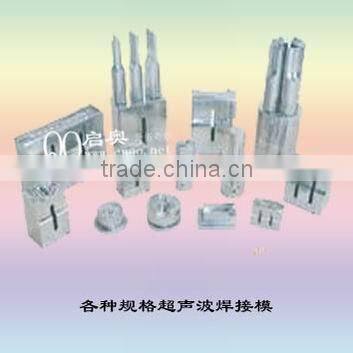

    Ultrasonic cutting: the use of ultrasonic welding mold and bottom with a specially designed way to reach the ultrasonic removal of cloth or plastic ultrasonic conduction effect.

    Five, 20K ultrasonic welding machine, ultrasonic plastic welding machine specifications:

    Specifications: QO-2015 QO-2020 QO-1526 QO-1532 QO-1542

    Output power (W): 1500W 2000W 2600W 3200W 4200W

    Frequency (KHz): 20KHZ 20KHZ 15KHZ 15KHZ 15KHZ

    Input voltage (V): 220V 220V 220V 380V 380V

    Welding head stroke: 100MM

    Output Time (S): 0.01-6S

    Pressure (bar): pressure range 1-7bar

    Welding area (mm): 200 220 250 310 400

    Using a compressor: 2HP

    Dimensions mm: Host size 700 × 400 × 1300 Chassis dimensions 600 × 440 × 160

    Weight (kg): 120kg 124kg 128kg 132kg 136kg

    Welcome to buy QIAO Austrian 20K ultrasonic welding machine, ultrasonic plastic welding machines, all kinds of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!
