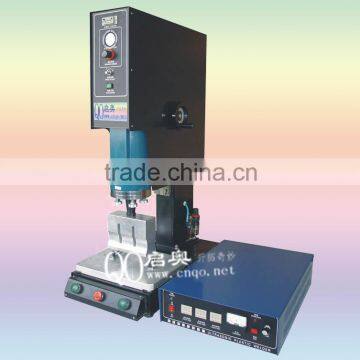

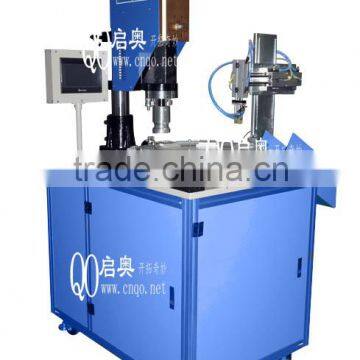

Name: 15KHZ-20KHZ Ultrasonic Plastic Welding Machine
Main Application: Apply for ABS, PE, PC, PS, PVC, PP, ABS & PC complex, Acrylic etc. materials.
Principle of ultrasonic welding:
Ultrasonic Vibration transmit the energy via welding horn to plastic workpiece surface, generating localized hyperthermia to melt the plastic surface. Under pressure of the ultrasonic welding machine, make 2 pieces of plastic workpiece to weld, get a good-looking and stable entire product.
Features:
PLC precision control circuit,auto overload protection system.
Taiwan high precision decollator,zero error.
With digital code switch,1/100 accurately set quadruple point balance adjustment,easy to regulate horn.
High Q value transducer, big output power.
Idle load with resonance,no need regulate frequency of the horn.
Upright column,cylinder choice,guide bearing,accurate vernier regulation. Stroke regulated by turbine rotary device which solve the regulating abuse of the common equipment.
Alloy steel amplitude transformer,sound wave strong and stable.
The welding mould with the material of 7075,6064 aluminium alloy,durable in use.
Electronic parts from Italy,Japan,America,Korea,Taiwan,reliable performance. One-piece big power equipment,suitable for high desired impact of products.
Auto protective layer device,according to the welding surface decide whether need this device or not.
Techinical Parameters:
Model |
QO-2015 QO-3215 QO-4215 |
Power |
2000W 3200W 4200W |
Voltage |
220V 220V 220V |
Frequency |
15KHZ |
Max Input power |
1.2KW |
Stroke |
70MM |
Vibration system |
Auto-stimuilating |
Output time |
0.1-99s |
Range of pressure |
1-7bar |
Air compressor |
1 - 5 PSI |
Net weight |
120~400KGS |
Gross weight |
180~550KGS |
|
| Packaging Details: | wooden case, fumigation-free material |
|---|---|
| Delivery Detail: | 20 working days after payment |
Shenzhen QI AO Machinery Co., Ltd. is a professional factory direct high frequency, high frequency machine, high frequency fusing machine, high frequency welding machine, blister packing machine, blister sealing machine, cylinder machine, cylinder curling machine, cylinder welded bottom machine vacuum packaging machines, skin packaging machines, shrink packaging machines, balers, packaging equipment and ultrasonic, ultrasonic plastic welding machine, ultrasonic welding machine, ultrasonic spot welding, ultrasonic welding machines, high frequency welding machine, High frequency metal mesh preparetions machine, high frequency heating machine, welding equipment, high-frequency furnace.
