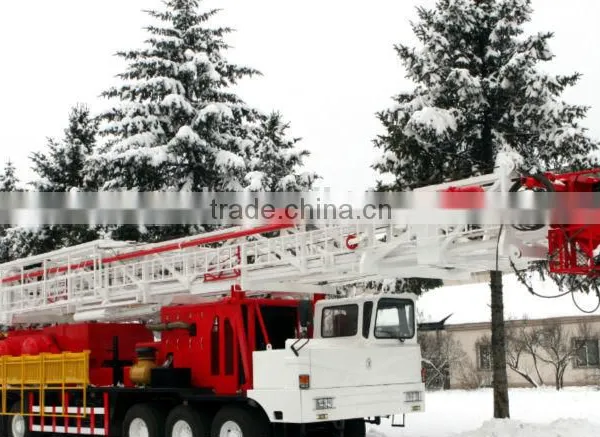

350hp workover rig for low temperature
Specification
1.The 350hp workover rig is the most famous product in interantional workover rig market.
2.We has developed the XJ350 series based on different chassis, engines and configurations to achieve various types of operation including well workover,well serivce and well drilling.
3. The 350hp workover rig has a good market in U.S, Columbia, Kazakhstan and Syria.
Technical specification
Description |
350hp Workover Rig (Overhaul) |
350hp Workover Rig (Servicing) |
|
Workover depth |
3,200m (10,500ft, 2-7/8” DP) 2,500m (8,200ft, 3-1/2” DP) |
||
Servicing depth |
4,000m (13,120ft, 2-7/8” DP) |
||
Rated hook load |
600kN(134,900lbf) |
||
Max. hook load |
900kN(202,330lbf) |
||
Traveling system |
3×4(Φ26mm(1”) wireline) |
||
Hook hoistin speed |
0.25-1.4m/s(0.82-4.6ft/s) |
||
Overall dimensions (L×W×H) |
18.5×2.9×4.2m 60.7×9.5×13.8ft |
18.5×2.85×4.2m 60.7×9.4×13.8ft |
|
Total weight |
51,000kg(112,440lb) |
49,500kg(109,130lb) |
|
Max. travel speed |
45km/h(28mil/h) |
||
Carrier |
Self-propeller 10×8 |
||
Engine model and rated power |
Caterpillar C9 260kW(350hp)/2,100rpm |
Detroit S6063 298kW(400hp)/2,100rpm |
|
Transmission |
Allison 4700 OFS |
Allison M5610s |
|
Derrick height |
31.7m(104ft) |
||
Max. static load |
900kN(202,330lbf) |
||
Racking board capacity |
4,000m(13,120ft, 2-7/8 EUE Tubing) |
||
Racking board height |
16.8m(55ft) |
|
|
Drawwork rated power |
224kW(300hp, double drum) |
238kW(320hp) |
|
Main drum |
Φ406×890mm(Φ16”×35”) |
Φ429×965mm (Φ16.9”×38”) |
|
Max. faster line pull |
180kN(40,470lbf) |
||
Sanding drum |
Φ965×264mm(Φ38”×10.4”) |
||
Air assist brake system |
KOBELT Disc4-7-35 Caliper 5026-CM |
KOBELT Disc4-7-48 Caliper 5026-CM |
|
Drill floor(L×W×H) |
4.2×4.2×3.7m(13.8×13.8×12.1ft) |
|
|
Swivel model |
SL90 |
|
|
Max. load |
900kN(202,330lbf) |
|
|
ZP125 rotary table |
Max. load 900kN (202,330lbf) Max. open Dia.292mm(11.5”) |
|
|

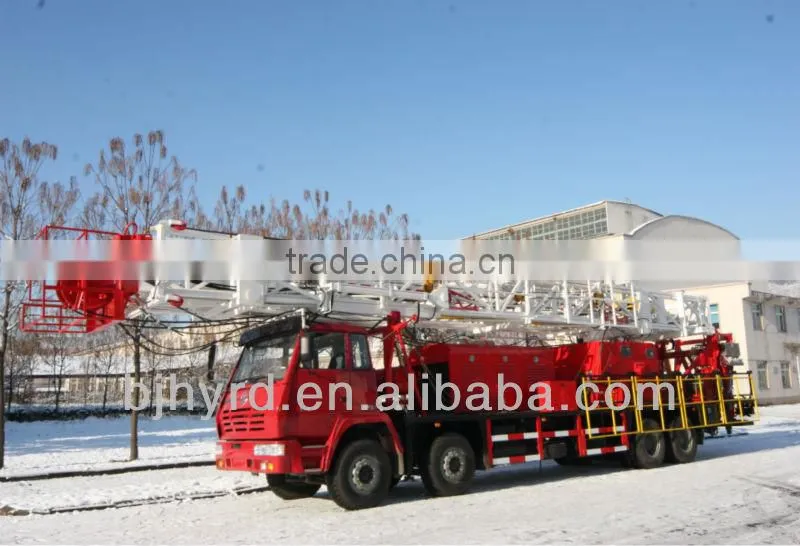

XJ350 Workover rig for low temperature
