Home > Products > Workover rig > XJ450 oil well workover rig for sale
XJ450 oil well workover rig for sale
- 100 Set / Sets per Month
- Beijing/Tianjin
- T/T Credit Card
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Power(W): | 440hp | Place of Origin: | Jilin, China | Brand Name: | OCEAN RENDA |
| Model Number: | XJ450 | Voltage: | 380V | Dimension(L*W*H): | 18.5*3.1*4.2m (60.7*10.2*13.8ft) |
| Weight: | 55,000kg (121,250 lbs) | Certification: | API | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

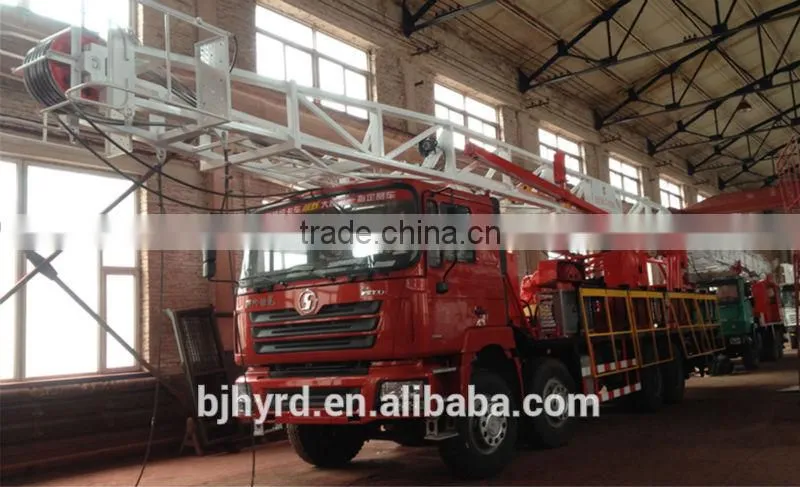

XJ450 oil well workover rig for sale
Specification
1. XJ450(80t) workover rigs have a workover depth up to 5,800m and a service depth up to 7,000m.
2.Equipped with rotary table, swivel and drilling tools, they can perform as a mobile drilling rig up to 1,500m depth.
3.The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.
Technical specification
Description | XJ450 workover rig |
Workover depth | 4,500m (14,760ft, 2-7/8” DP) 3,500m (11,480ft, 3-1/2” DP) |
Servicing depth | 5,500m (118,045ft, 2-7/8” EUE Tubing ) |
Rated hook load | 800kN (179,850 lbf) |
Max. hook load | 1,125 kN(252,900lbf) |
Traveling system | 4*5 (Φ26mm /1” wireline) |
Hook hoisting speed | 0.25-1.4m/s (0.82-4.6 ft/s) |
Overall dimensions (L*W*H) | 18.5*3.1*4.2m (60.7*10.2*13.8ft) |
Weight | 55,000kg (121,250 lbs) |
Max. travel speed | 45 km/h (28m/h) |
Carrier | Self-propeller 10*8 |
Engine | Model Caterpillar C13, Rated power 325 kW(440hp), 2,100 r/min |
Transmission | Allison 4700 OFS |
Derrick height | 3.4m (112ft) |
Max. static hook load | 1125kN(252,900lbf) |
Racking Board Capacity | 5,500m (18,045 ft, 2-7/8”EUE Tubing) |
Racking Board Height | 20.9m (68.6ft) |
Drawwork rated power | 235kW(320hp) |
Main drum | Φ406X94mm (Φ16”*37.3”) |
Max. faster line pull | 180kN (45,500lbf) |
Sanding drum | Φ965X264mm (Φ38”*10.4”) |
Air assist brake system | KOBELT Disc4-7-48 Caliper 5026-CM |
Drill floor (L*W*H) | 6.74*5*5m(22.1*16.4*16.4ft) |
Swivel model and max.load | SL110 , 1,100kN(247,290 lbf) |
ZP175 rotary table | Max. load: 1,350 kN(303,500lbf); Max. open dia.:444.5mm(17.5”) |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
