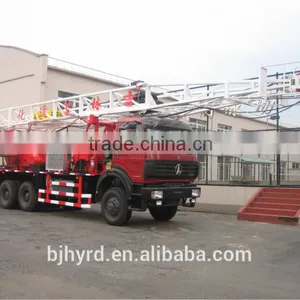

XJ250 oilfield workover rig
Specification
XJ250 Workover Rig features fast moving speed and high service efficiency. Equipped with Caterpillar C9 and Allison 4700 transmission, the XJ250 workover rig can reach up to 3,500m for workover and well service. The rig is rated by customer all over the world as the best economic workover rig for its reliable performance, innovative design and economical cost.
Technical specification
Description |
XJ250 Workover Rig (Overhaul) |
XJ250 Workover Rig (Servicing) |
||
Workover Depth |
3,200m(10,500ft, 2-7/8'' DP) 2,000m(6,560ft, 2-7/8'' DP) |
|
||
Servicing Depth |
3200m (10,500ft, 2-7/8''EUE Tubing) |
|||
Rated Hook Load |
400kN (90,000 lbf) |
|||
Max. Hook Load |
735kN (165,000 lbf ) |
675kN (151,700 lbf) |
||
Traveling System |
3×4 {Φ22mm (7/8'') Wireline) |
|||
Hook Hoisting Speed |
1.5m/s (4.92ft/s) |
|||
|
Overall Dimensions (l×w×h) |
18.5×2.9×4.2m 60.7×9.5×13.8ft |
16.5×2.9×4.2m 54.1×9.5×13.8ft |
||
Weight |
50,000kg (110,230 lb) |
45,000kg (99,200lb) |
||
Max. Travel Speed |
60km/h (37mph), but limit 45km/h(28mph) |
|||
Carrier |
Self-propeller 10×8 |
Self-propeller 6×4 |
||
|
Engine Model and Rated Power |
Caterpillar C9/ATAAC 260kW(350hp/2100rpm) |
|||
Transmission |
Allison 4700 OFS |
|||
Derrick Height |
31m (102ft) |
27m (89ft)
|
||
Max. Static Hook Load |
735kN (165,000 lbf) |
675kN (151,700 lbf) |
||
Racking Board Capacity |
3200m (10,500 ft, 2-7/8'' EUE TB) |
|||
Racking Board Height |
20.1m (66 ft), 16.8m (55ft) |
16.8m (55ft) |
||
Drawwork Rated Power |
185kW (250hp, Double drum) |
|||
Main Drum |
Φ336×828mm (Φ13.2'' ×32.6'') |
|||
Max. Faster Line Pull |
145kN (32,600 lbf) |
|||
Sanding Drum |
Φ315 mm×908mm (Φ12.4'' ×35.7'') |
|||
Air Assist Brake System |
KOBELT Disc 4-7-35'' Caliper 5026-CM
|
|||
Drill Floor (l×w×h) |
4.2×4.2×3.3m (13.8×13.8×10.8 ft) |
|
||
|
Swivel Model and Max. Load |
SL90 900kN (202,330 lbf) |
|
||
ZP125 Rotary Table |
Max. Load 900kN (202,330 lbf) Max. Open Dia. 292mm (11.5'')
|
|
||
