Blow Moulding Machine Pet Bottle Making Machine
- shanghai
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | winmark | Model Number | WM | |
| Voltage | according to user | Power(W) | subject to model | |
| Dimension(L*W*H) | subject to model | Weight | subject to model | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
blow moulding machine pet bottle making machine-pet bottle make
-1000~6000bph
-size 0.1-2L
-Mittisubishi Schneider Festo

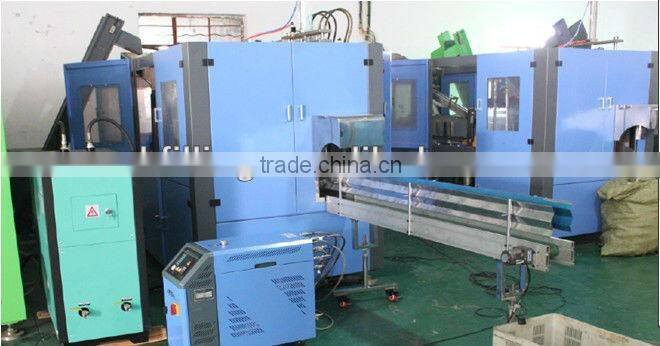

blow moulding machine pet bottle making machine
WORKING PRINCIPLE:
First, put the performs in the hopper; Second, the performs are carried into the machine automatically by the conveyer; third, the performs are carried through the preheater and then into the mould and are blowed ; fourth, the finished bottles come out from the machine directly.
Technical Parameters:
Model Information |
| WM-1800B | WM-3500B | WM-5500B |
Clamping Force |
| 180KN | 370KN | 565KN |
Clamping Stroke |
| 120-175MM | 120-175MM | 80-130mm |
Max. Stretching Stroke |
| 370MM | 370MM | 370mm |
Bottom Moving Stroke |
| 70MM | 70MM | 0-70mm |
Number of Cavities |
| 2 Cavity | 4 Cavity | 6Cavity |
Theoretical Output |
| 2000 BPH | 4000 BPH | 5500BPH |
Max. Mould Thickness |
| 250MM | 250MM | 300mm |
Space Between Tie Bars |
| 400*380MM | 640*380MM | 780x380mm |
| ||||
Voltage Standard | 380v/3PH/50Hz or special order | |||
Number of Heating Zone |
| 2 Sections | 4 Sections | 4 Sections |
Total Power (Full Loaded) |
| 28KW | 60KW | 75KW |
| ||||
Max. Container Volume |
| 1.5L | 1.5L | 1.5L |
Neck Diameter Range |
| 16-38mm | 16-38mm | 16-38mm |
Max. Container Diameter |
| 110mm | 110mm | 110mm |
Max. Container Height |
| 380mm | 380mm | 360mm |
| ||||
Low Air compressor |
| 10Bar | 10Bar | 10Bar |
High Air compressor |
| 30-40Bar | 30-40Bar | 30-40Bar |
| ||||
Blow molding machine |
| 2.1*1.5*2.0m | 3.55*1.5*2.0m | 4.25*1.5*2.0m |
Preform Autoloader |
| 1.1*1.2*2.2m | 1.1*1.2*2.2m | 1.1*1.2*2.2m |
Net Weight |
| 2T | 3.5 T | 4T |
