Specifications
Semi-automatic pet stretch blow moulding machine1-Mittisubishi PLC
2-Festo pneumatic
3-OMRON Schneider electronics

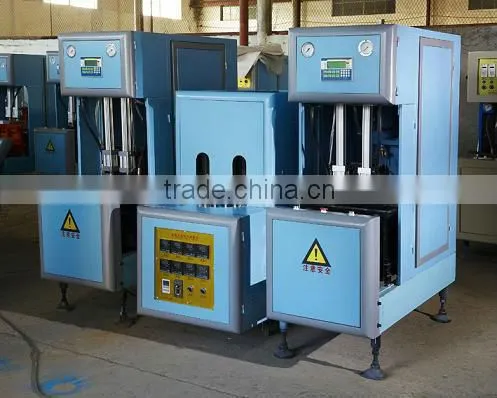

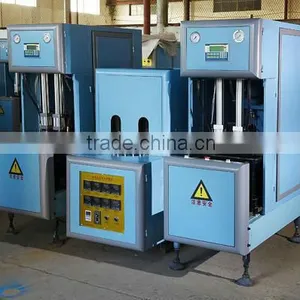

Semi-automatic pet stretch blow moulding machine
Brief Introduction:
WK-II-I semi-automatic stretch blow molding machine has been improved on the base of WK-1500, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. WK-1500 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.
Features:
Produce bottle from 0.1L to 1.5L(2 cavity)
Output capacity up to 850 for 0.1L using two-cavity blow mold
Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
Equipped with special designed air storage unit
Using Infrared preform heater
Independent Temperature Control for different heating lamp to get ideal preform heating results
Heating lamps are adjustable in directions to suit various preforms.
Operated only by one person without special training.
Simple installation & startup adjustment.
Waste rate of finished bottle is less than 0.3%.
Technical Parameters:
TYPE |
ITEM |
UNIT |
|
WK-II-I TWO MACHIEN ONE HEAT Technical data |
Container |
Product material |
/ |
|
PET |
Container volume |
L |
|
0.1-1.5(2-cavity) |
|
Theoretic output |
Psc/hr |
|
0.1-1.5L: 1600 |
|
Max bottle height |
M |
|
340 |
|
Max bottle diameter |
mm |
|
170 |
|
Molding |
Max mold plate dimension |
mm |
|
420*500 |
Max mold thickness |
mm |
|
250 |
|
Clamping force |
KN |
|
160 |
|
Mold opening stroke |
mm |
|
230 |
|
Air compressor |
Air compressor |
M 3 /Mpa |
|
>=0.63/3.0 |
Air pressure for blowing |
Mpa |
|
2.0-3.0 |
|
Power |
KW |
|
10.8 |
|
Main machine electricity |
Voltage / frequency |
V / Hz |
|
380/50-60(3phase) |
Main machine |
M |
|
1.43×0.59×1.7 |
|
Machine size and weight |
Main machine weight |
T |
|
0.6 |
Heater |
M |
|
1.80*0.57*1.40 |
|
Heater weight |
T |
|
0.22 |
|
High pressure compressor |
M |
|
1.90×0.75×1.5 |
|
Air filter |
Kg |
|
2pcs |
|
Safety |
Auto emergency alarm |
Safety inter-locking device |
||
