Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Jiangsu Zhangjiagang City Automatic Pet Bottle Blowing Machine

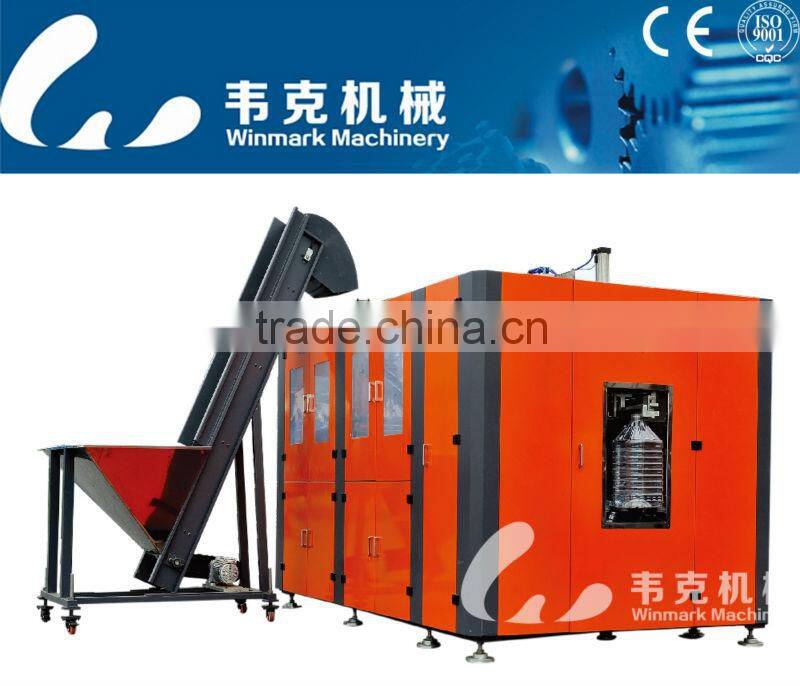

Jiangsu Zhangjiagang City Automatic Pet Bottle Blowing Machine

Name: Jiangsu Zhangjiagang City Automatic Pet Bottle Blowing Machine
Brand: winmark
SKU: 109366355
Availability: InStock

Jiangsu Zhangjiagang City Automatic Pet Bottle Blowing Machine thumbnail-1

Jiangsu Zhangjiagang City Automatic Pet Bottle Blowing Machine photo-1

US$ 12,500 - 58,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Contact Supplier Request Quote Chat Now

Zhangjiagang Winmark Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Yes

Place of Origin Zhejiang, China

Brand Name winmark

Model Number WM

Voltage according to user

Power(W) subject to model

Dimension(L*W*H) subject to model

Weight subject to model

Certification CE ISO

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

pet bottle blowing machine bottle machine
-pet bottle make
-1000~6000bph
-size 0.1-2L
-Mittisubishi Schneider Festo

Automatic pet bottle blowing machine

WORKING PRINCIPLE:

First, put the performs in the hopper; Second, the performs are carried into the machine automatically by the conveyer; third, the performs are carried through the preheater and then into the mould and are blowed ; fourth, the finished bottles come out from the machine directly.

Technical Parameters:

Model Information		WM-1800B	WM-3500B	WM-5500B
Clamping Force		180KN	370KN	565KN
Clamping Stroke		120-175MM	120-175MM	80-130mm
Max. Stretching Stroke		370MM	370MM	370mm
Bottom Moving Stroke		70MM	70MM	0-70mm
Number of Cavities		2 Cavity	4 Cavity	6Cavity
Theoretical Output		2000 BPH	4000 BPH	5500BPH
Max. Mould Thickness		250MM	250MM	300mm
Space Between Tie Bars		*400380MM**	*640380MM**	780x380mm
Electrical System
Voltage Standard	380v/3PH/50Hz or special order
Number of Heating Zone		2 Sections	4 Sections	4 Sections
Total Power (Full Loaded)		28KW	60KW	75KW
Container
Max. Container Volume		1.5L	1.5L	1.5L
Neck Diameter Range		16-38mm	16-38mm	16-38mm
Max. Container Diameter		110mm	110mm	110mm
Max. Container Height		380mm	380mm	360mm
Air system
Low Air compressor		10Bar	10Bar	10Bar
High Air compressor		30-40Bar	30-40Bar	30-40Bar
Dimension & Weight
Blow molding machine		*2.11.52.0m*	*3.551.52.0m*	*4.251.52.0m*
Preform Autoloader		*1.11.22.2m*	*1.11.22.2m*	*1.11.22.2m*
Net Weight		2T	3.5 T	4T
