High quality mono/ poly solar module manufacture price
We are manufacturer of high quality
We have over 19 years’ experienceof manufacturing outdoor lighting. We own the serious machine for the whole set making process . You can find our Solar LED Street Light all over the China and they are also installed in north America, south America, Africa, Europe and etc.
| Product name: | ||||||
| Model | JX156-60P Series | |||||
| Solar cell | 156×156mm | |||||
| No. of cells and connections | 60(6×10) | |||||
| Dimension(mm) | 1640×992×40 | |||||
| Weight(kg) | 21 | |||||
| Electrical Characteristics | ||||||
| Maximum Power(Pm) | 260Wp | 255Wp | 250Wp | 245Wp | 240Wp | 235Wp |
| Open-circuit voltage(Voc) | 38.0V | 37.8V | 37.6V | 37.4V | 37.2V | 37.0V |
| Short-circuit current(Isc) | 8.95A | 8.85A | 8.75A | 8.65A | 8.55A | 8.4A |
| Voltage at Pmax(Vmp) | 32.0V | 31.7V | 31.4V | 31.1V | 30.8V | 30.5V |
| Current at Pmax(Imp) | 8.13A | 8.05A | 7.98A | 7.89A | 7.8A | 7.71A |
| Temperature and Coefficients | ||||||
| NOCT(Nominal Operating Cell Temp) | 48℃±2℃ | |||||
| Short-circuit current temp coefficient | (0.03±0.01)%℃ | |||||
| Open-circuit current temp coefficient | —(0.36±0.02)%℃ | |||||
| Peak power temp coeffficient | —(0.55±0.05)%℃ | |||||
| Power Tolerance | ±3% | |||||
| Type of output terminal | Junction Box | |||||

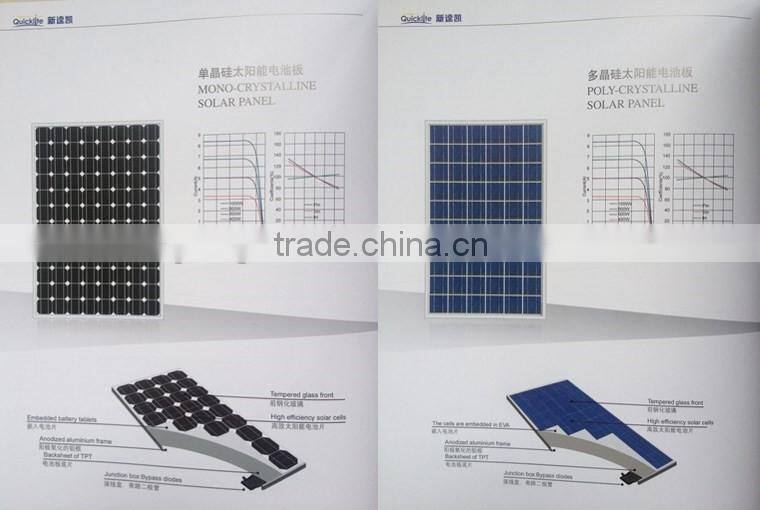

| Components&Mechanical Data | ||||||
| Front Glass | High Transparency Tempered Glass, 3.2mm | |||||
| Junction Box | Pass the TUV Certificate PPO(black/IP65) | |||||
| Output Cables | 4 mm2 / 900mm | |||||
| Connectors | MC4(UV resistance and self-locking/IP 67) | |||||
| Frame | Anodized aluminum alloy type 6063-T5, white | |||||
| Encapsulation Material | EVA (0.50±0.03mm thickness) | |||||
| Back Foil | Transparent TPT (0.32±0.03mm thickness) | |||||
| Fixing adhesive | Silicon Sealant (white) | |||||
| Maximum System voltage | 1000VDC | |||||
| Temperature Rang (°C) | -40℃ ~ +90℃ | |||||
| Max Load(Kpa) | 2.4 wind load / 5.4 snow load | |||||
Why Us
One-stop Service
You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.
Vertically Integrated Production System
You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.
18 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 15 years’ experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Advanced Technology
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Cost Efficiency
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There’s no middleman between the manufacturer BAODE and domestic and oversea buyers.
1. Price Term: EXW, FOB, CFR or CIF.
- The price includes pole shaft, base plate, crossarm and anchor bolt.
- Shipping seaport: Shanghai Seaport.
- Please provide drawings if you have so that we can calculate the accurate price for you.
- We also provide design according to your requests, if you don't have drawings.
2. MOQ: 1 set for Customized.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.
|
