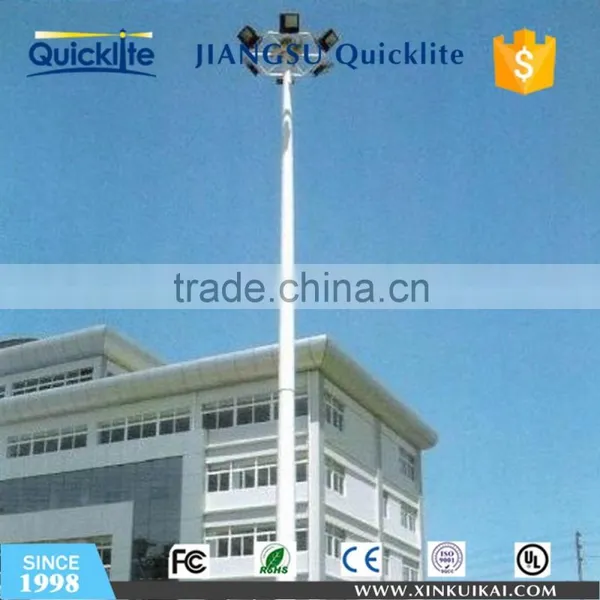

15m high mast pole lamp high mast galavnized pole manufacture
We are manufacturer of high quality
We manufacture galvanized light pole, whose height are from 5M to 60
We have over 19 years’ experienceof manufacturing Street Light Poles. We own the big bending machine with the complete set for the pole. You can find our Street Light Pole all over the China and they are also installed in north America, south America, Africa, Europe and etc.
| Height | From 15 m to 50m |
| Suit for | Airport ,seaport,plaza,stadium ,square,highway station,street way ,etc |
| Shape | round or polygon |
| Material | Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 |
| Torrance of dimension | -0.02 |
| Lighting Source | 400 W- 5000 W high pressure sodium flood light,light extension :up to 30 000 m² |
| Light plate | Various figure of selection ,material with hot dip galvanization steel frame |
| Lifting system | Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute,Equipped e;antiferromagnetism brake and break –proof device,manual operation applied under power cut |
| Electric appliance control device | Electric appliance box to be be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,inner flange mode,face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 80 Km/Hour |
| Welding | We has past flaw testing.Internal and external double welding makes the welding in shape |
| Thickness | 6 mm to 20 mm |
| Production Process | Raw material test→Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding→Hole drilling→Calibration→Deburr→Galvanization or powder coating ,painting→Recalibration→Thread→Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required |
Why Us
One-stop Service
You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.
Vertically Integrated Production System
You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.
18 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 15 years’ experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Advanced Technology
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Cost Efficiency
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There’s no middleman between the manufacturer BAODE and domestic and oversea buyers.
1. Price Term: EXW, FOB, CFR or CIF.
- The price includes pole shaft, base plate, crossarm and anchor bolt.
- Shipping seaport: Shanghai Seaport.
- Please provide drawings if you have so that we can calculate the accurate price for you.
- We also provide design according to your requests, if you don't have drawings.
2. MOQ: 1 set for Customized.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.
|
Highway lighting pole Main roads Lighting pole Secondary roads lighting pole Storage-yard Lighting pole Industrial-plant Lighting pole |
Park Lighting pole Dock Lighting pole Stadiums Lighting pole Overpass Lighting pole Toll-station Lighting pole |
