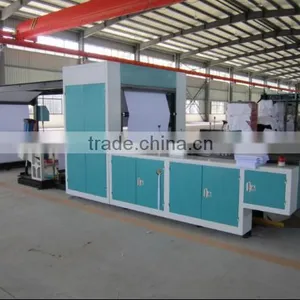

Automatic A4 paper cutting machine & packaging machine / A4 paper processing equipment

Application:

Full automatic A4 paper cutting and packing machine is suitable for cutting all kinds of office paper,like A3,A4,A5 ;

Performance and features:

1.It adopts PLC touch screen control, servo motor for controlling constant-length cutting.

2.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric,gas together,it has the functions of easy operation,high precision,good stability,low noise

3.This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically,adopt blower to get rid of waste.

4.We have three types machine of single roll,double roll and four roll loading. It can cut one, two or four paper material rolls at the same time, which decide the speed.

Technical parameter

 Main equipments details

1.Unwinding device adopts the automatic feeding mechanism(150#cylinder*8set)

2.Feeding tension using automatic tension control system(4s et)

3.Rolling tension is controlled by magnetic powder brake(20kg 4set)

4.The machine adopt automatic correction device system

rrection device system using 130 type synchronous motor control

cell eye (4 piece)

7.Main motor adopt frequency conversion adjustment and control.(3.0kw 1set)

8.Inverter adopts 3kw(lanhai huateng)

9.Feed machine adopts servo control system(4.4kw 1set)

10.Traction adopts frequency conversion motor(1.5kw 4set)

11.frequency converter (1.5kw 4set)

12.Cutting device adopts Vertical shear device

13.Longitudinal cutting adopts circular knife slitting device up and down

14.Waste removal by fan automatic discharge(1.5kw1set)

15.The loading device adopts automatic transmission mechanism of conveyor belt

16.Conveyor belt adopts synchronous motor drive(0.75kw set)

17.The whole machine adopts PLC control system

18.PLC text adopt Taiwan wei lun, controller adopts Japan panasonic

19.Transmission frequency converter adopt (0.75kw1set)

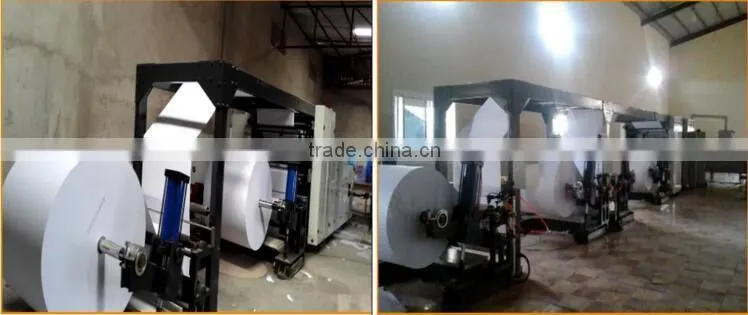

Unwinding stand parts

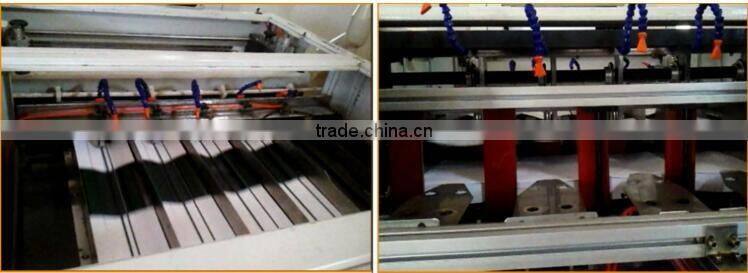

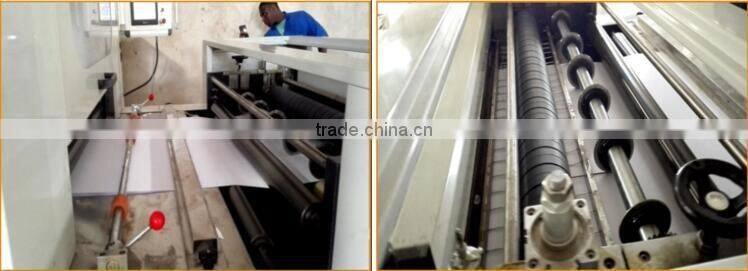

Paper cutting parts

Paper stacking and collecting parts

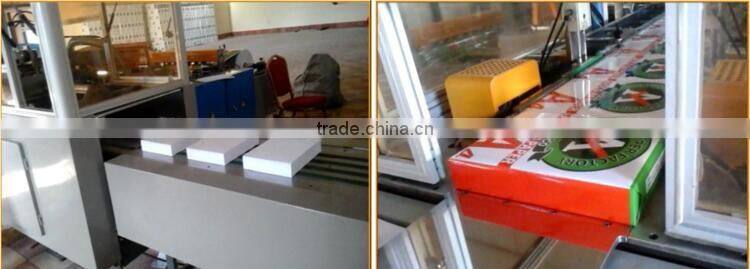

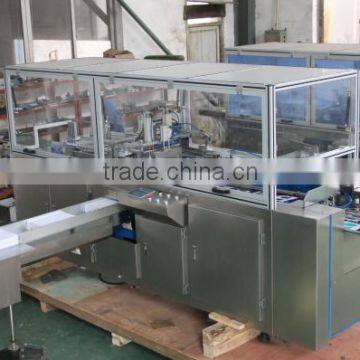

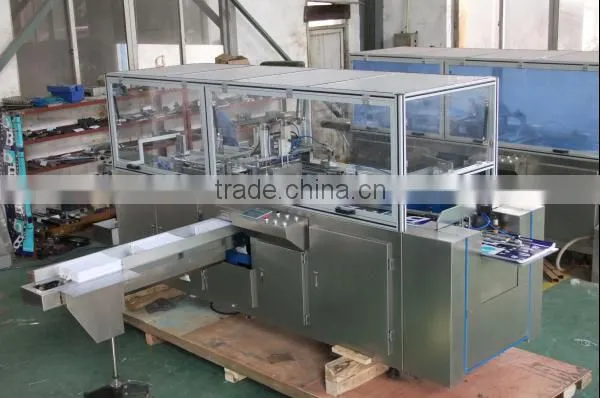

A4 paper packing parts

A4 paper photos

· Covered machine parts with plastic films.

· Wrapped with the fumigated plywood pallet.

· Wrapped with wooden board around and nailed on.

Shipments and delivery:

· sea delivery from Qingdao ports .

·delivery time is decided by your required machines or machine parts. But we try our best meet your requirements.
