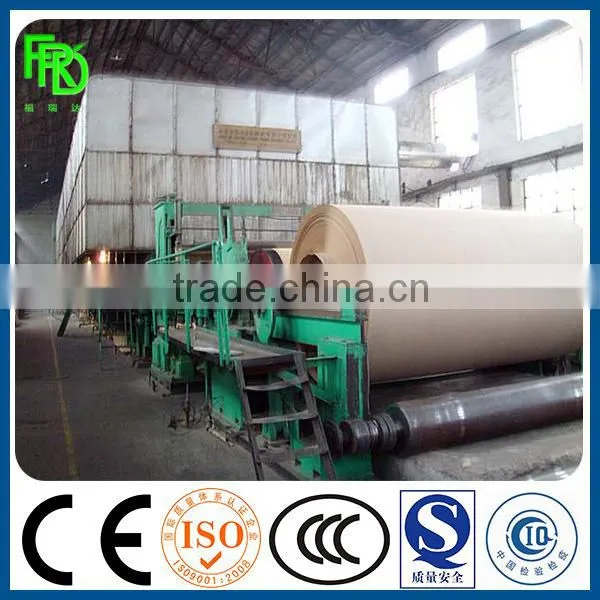

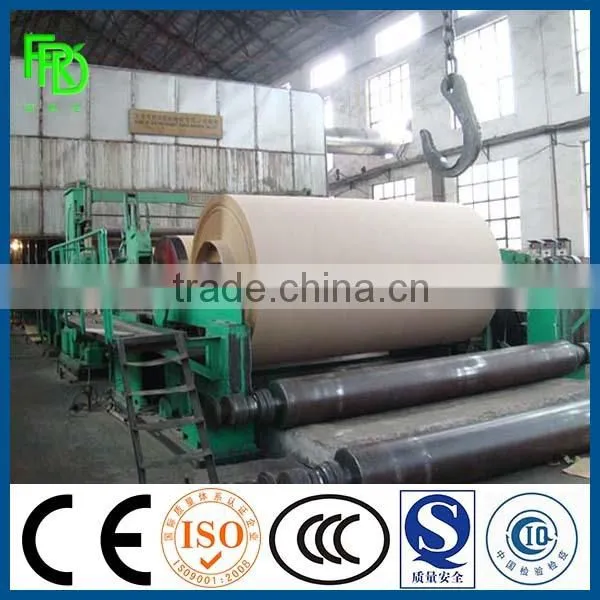

Help Center2100mm Waste Carton Box Pulping Kraft Corrugated Paper Making Machine
Related Products
Buy guides
Dear Sir/Madam,
How are you? Thanks for your interest in our paper making machine.In order to recommend proper
machine and make detailed technical proposal for you as soon possible ,please tell us the following
technical parameters:
(1)what kind of paper do you want to produce?
(2)what kind of raw material you will use?
(3)how many tons do you want to produce per day(24hours)?
(4)what is the output paper width of jumbo roll?--mm;
(5)What is the output paper weight(thickness)?--gsm.
Thanks for your cooperation!

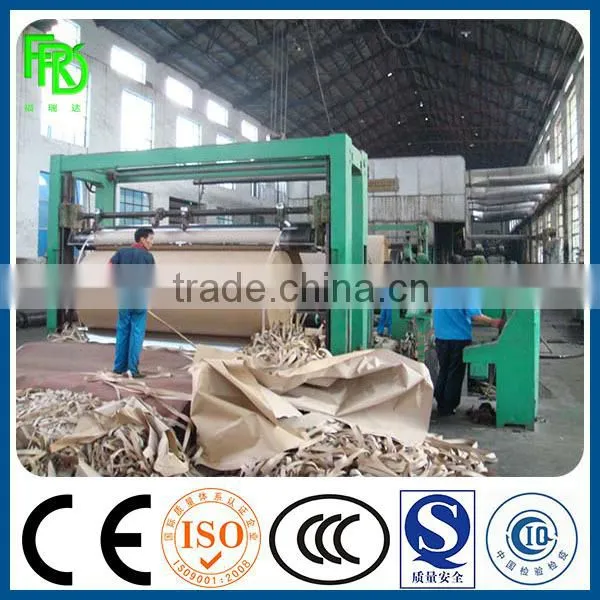

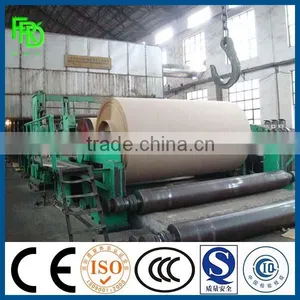

Brief Introduction
This production line can use waster paper,recycled paper as raw material to make high quality craft
paper,finished product can be paper roll ;
It includes following section:
1.pulp making production line;
2.glue adding system ;
3.paper making production line;

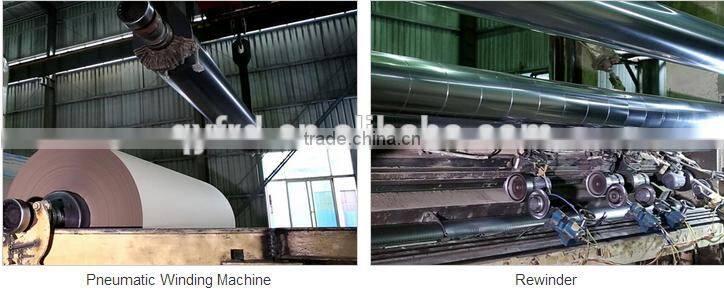

4.paper converting section;
5.boiler section ;
Technical parameters
1.Raw material : waster paper,recycled paper;

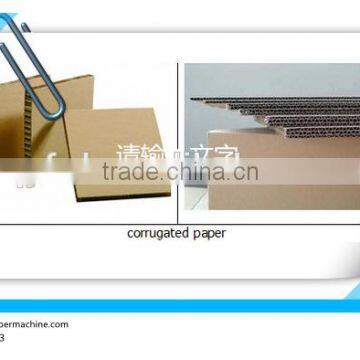

2.Output paper : craft paper,kraft paper,corrugated paper,flute paper,liner paper.
3.Capacity: 10ton per day(24hours);
4.Net paper width: 2100mm;
5.Output paper weight:60-150g/m2;
6.Width of cylinder mould: 2450mm ;
7.Bearing center-center :2900mm ;
8.Working speed:50--80m per min;
9.Design speed:90m per min
10.Drive and control : Alternating current ,frequency conversion, speed control, section drive ;
Raw material of profitable projects 2100mm waste carton box pulping kraft corrugated paper making machine
Quality control
1.All kinds of rollers dynamic balance level setting for G4.
2.Drying cylinder dynamic balance level is set to G6.3.
3.Paper reeling rollers dynamic balance level setting of G2.5.
4.This machine reference standard (not listed parts by industry standards).
5.GB191 packaging storage instructions.
6.GB5799 paper making machinery roller and dryer cylinder with dynamic balance.
7.GB6388 transport packaging transceiver.
8.JB8 product sign.
9.JB1130 cylindrical gear reducer.
10.GB842 weighing apparatus can light industrial machinery and technical conditions.
11.QBJ1-64 pulp and paper professional equipment installation project.
12.Construction and acceptance specification.
13.ZBY9003 cast iron dryer for papermaking machinery technical conditions.
Packing $ Shipping
products will packaged according to their shapes, weight, transport distance and transport modes.
large machines will be packaged in sections. every part of export machinery will be in standard export
packageseaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the
intactness of products.
my name is Lyon, whatsapp: 008615039103734
WeChat: 008615039103734
---Your friend lyon
Qinyang City Friends Machinery Equipment Co.,Ltd
Add:Tanhuai office Qinyang City,Henan Province, China
Mob: +86-15039103734 whatsapp:0086 -15039103734 lyon
Tel: +86-391-5193312 Fax: +86-391-5193312
Web: http://www.qyfrd.en.china.cn
