1575 Waste Paper Recycling Pulp Production of High Quality Toilet Paper Machine

1575 waste paper recycling pulp production of high quality toilet paper machine

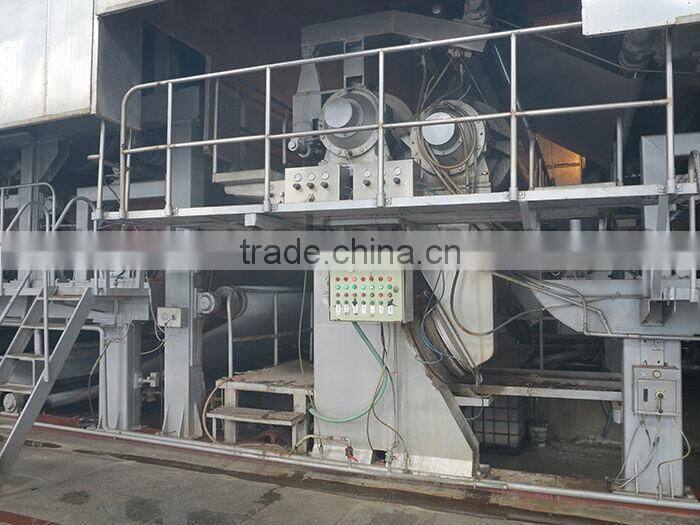

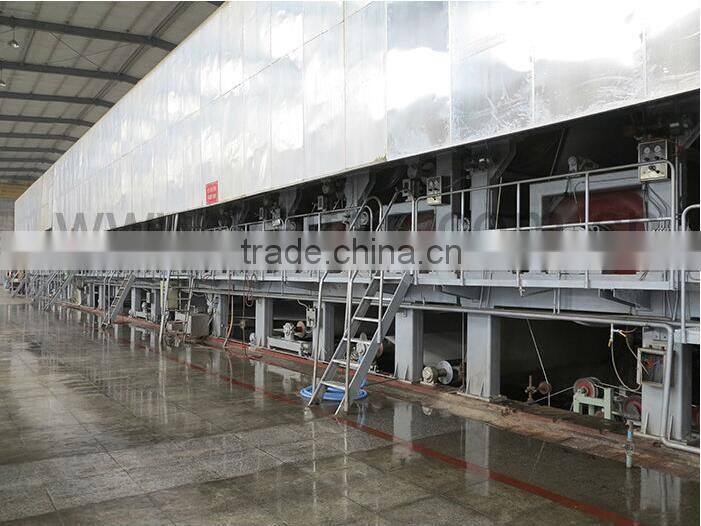

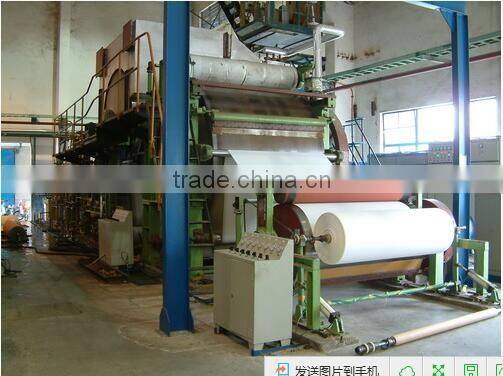

1575type Toilet paper making machine

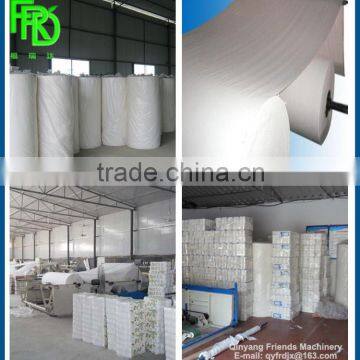

1. Output paper: tissue toilet paper,napkins
2. Output ratio: 13—30g/m²
3. The paper width: 1575mm
4. The mesh width: 1950mm
5. Design speed: 150m/min
6. Working speed: 80—110m/min
7. The capacity: 4T/D
8. The gauge: 2400mm
9. Means of pressure: pneumatic pressure
10. Hanging pulp mode: downside hanging pulp
11. The driver style: frequency control and sub step transmission
12. Machine type: square box type, including the left and right hand machine
13. Working hours a day: 22.5hours
14. Output rate: 95%
15. Arrangement: one layer layout, right hand machine

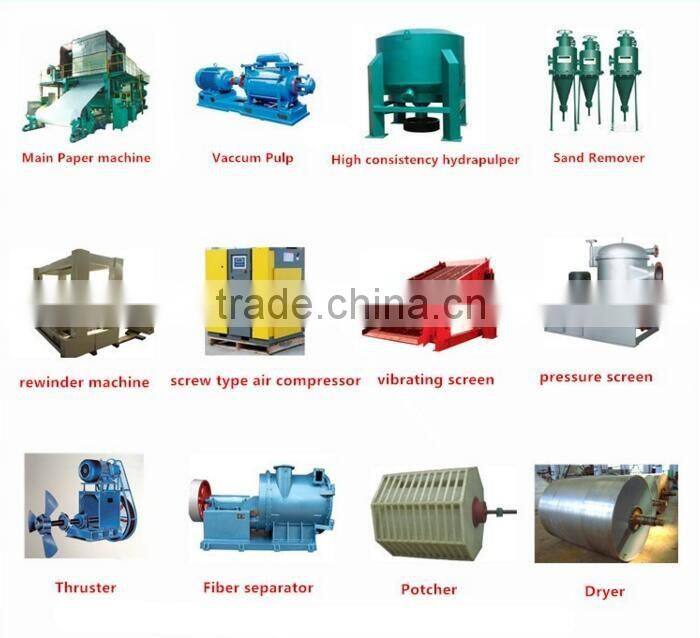

1.Pulp making
Different raw material for pulp making

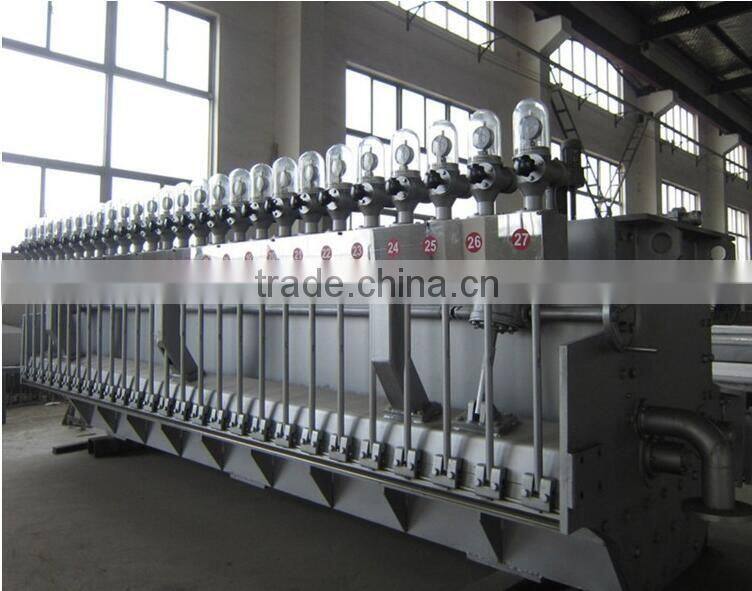

2.Headbox part
Headbox is one key part for paper making machine.
Function:It will mix the pulp from round tube with wate, and make them cover the machine symmetrically.

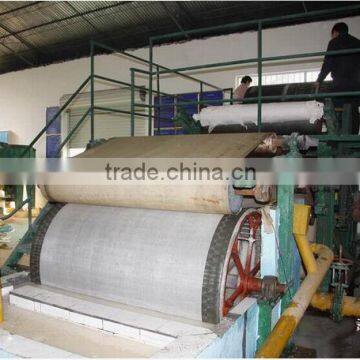

3. Press part
1.Make the wet sheet further dehydration, so as to reduce the steam consumption during drying of paper.
2.Transfer the wet sheet to dryer section and make it dry
3.At the same time of pressing dehydration, increase the binding force of the fiber in paper, improve the tightness and strength of paper
4.Eliminate paper network, improve the smoothness of paper and reduce the two sides of paper.

4.Dry part
Size: Φ1500mm or Φ1800mm
Function:This part usually contains several group dryer.
When wet paper enters into dryer section, it can select different leading way and paper orientation according to PM working speed, production basis weight and pulp impurity.

5.Sizing machine and calender part
Function:After infiltration, infiltration extrusion and a series of physical function, there will be one thineer waterproof layer on the surface paper, increase paper water-absorbing ability, also increase the combine strength and tightness of fibre

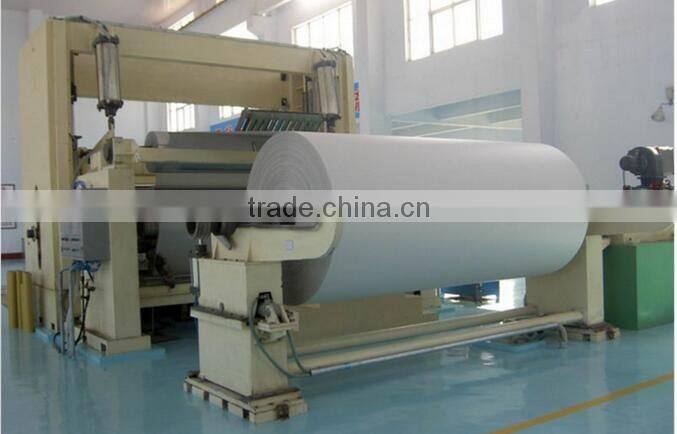

6.Reeling machine part
Reeler: It can select horizontal pneumatic reeling machine or horizontal pope reeling machine according to the working speed.

1. Production line design service
According to customers need for different paper, different production capacity, our engineer will provide different design and drawings. Furthermore,we will provide technology guide for the factory building freely.

2. Install service
We can send our engineer and experienced workers to customers country and help you to install the whole production line. During install period, customer should pay salary and all costs.

3.After sale service
1.All products adopt all-around computer aided design (CAD)
2.Complete sets machine will be pre installed before delivery.
3.One year warranty after machine testing and running.
4.we will send engineers/technicians to install the whole production line
5.After one year,we can guide and help you to maintain the machines.and spare parts will be provided on          cost price.
6.Every 2 years,we can help to overhaul the complete machines for free.
7.Free production technology and process configuration.

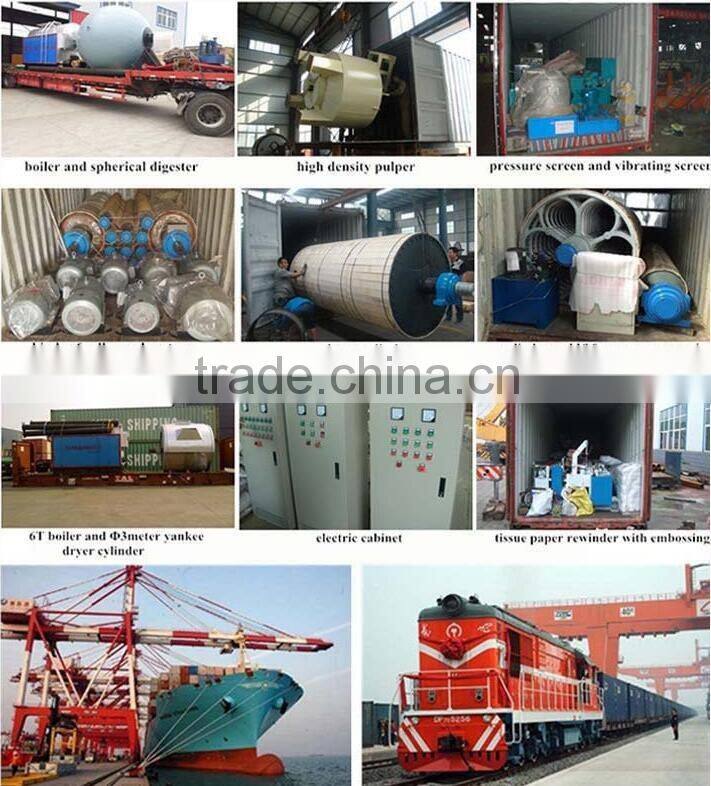

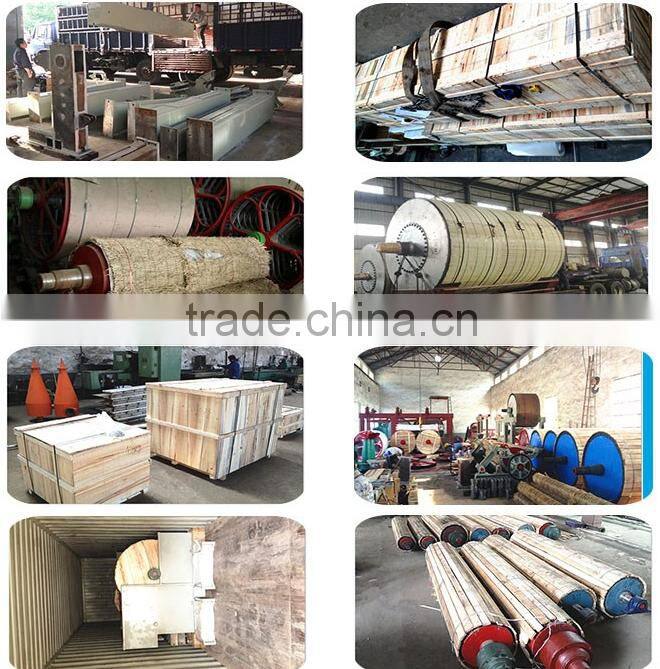

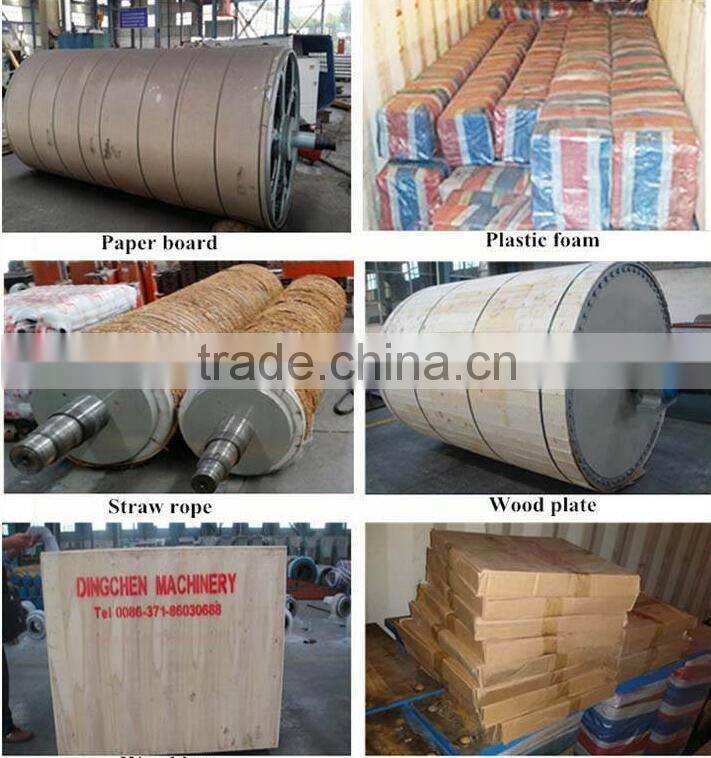

1. Fixed all the movable parts with plastic films.

2. Polystyrene foam plate wrapped around.

3. Wrapped with tighted plastic films several circles.

4. Fixed machine on the fumigated plywood pallet with iron wire.

5. Wrapped with wooden board around and nailed on.
