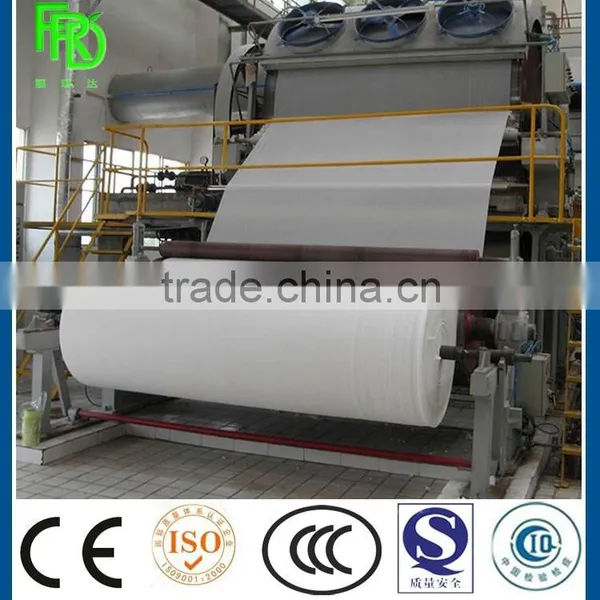

Qinyang Friends tissue paper making machine from China
Technical parameter
Raw material: waste paper
Output paper: tissue paper
Weight: 13-30gsm
Daily capacity: 4-5T/D
Net paper width: 1800mm
Rail gauge: 2700mm
Drive way: Alternating current frequency conversion adjustable speed ,section drive
Work speed: 150-180m/min
Main equipment structure
1.Cylinder section :Φ1500mm x 2350mm x 2700mm Stainless steel round plate mesh mesh cage,For stainless steel mesh,Φ450mm X 2350mm x 2700mm couch roll 1 set.
2. Dryer section: Φ2500mm×2300mm×2700mm alloy dryer can 1 sets, Φ550mm x 2350mm x 2700mm touch roll 1 set.Rubber shore hardness 96 °±2.
3. Winding section:with 1880mm Winding machine 1 set,winding drum Φ900mm × 2350mm × 2700mm.
Furuida machinery company has first-class sales and technical service team, according to customer needs to provide project design, process design and technical training. With pre-sale, sale, after-sale tracking service, fully exclude the majority of customers to worry about. All products have passed CE certification, product continuously updating, with exquisite craft, advanced papermaking technology, strict quality, superior performance of the renowned at home and home and abroad, and to dozens of years like a day of sincerity has been widely recognized by customers.
Turn-key engineering service
Complete project design
Lubrication system & Hydraulic system
Stock preparation system design
QCS system & Steam condensate system
Approach system design
Automation control system(MSC)
Vacuum system
Spare parts
Rolls
DST doctor & DST double doctor
Gear box & Drive gear
Various kinds of stretcher & Corrector
Drive shaft & Universal joint couplings
Paper machine designing & manufacturing
Paper machine remodification & boost
Paper machine erection & test-run
Paper machine ventilation system design &manufacturing
Rewinder supplies
Complete paper machine & equip spare parts supplies
