1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices

1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices thumbnail-1
1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices thumbnail-2
1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices thumbnail-3
1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices photo-1

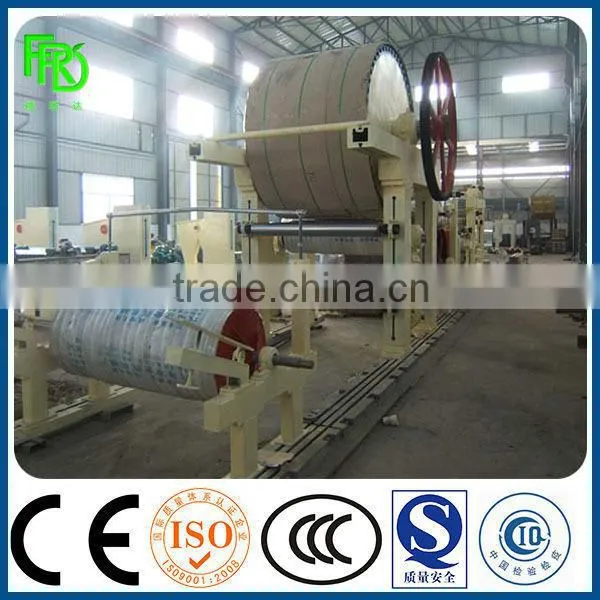

1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices photo-2

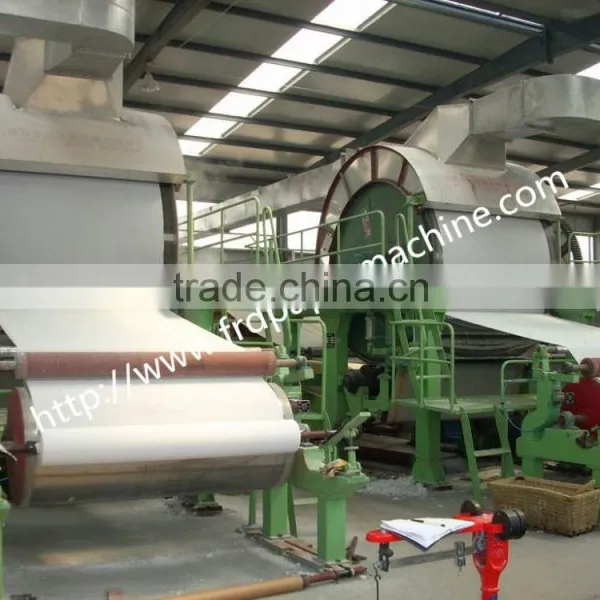

1092mm High Speed Small Toilet Paper Making Machine From Waste Paper Recycling With Low Prices photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, toilet paper
Processing Type:
Other, toilet paper machine
Contact Supplier Request Quote Chat Now
Qinyang City Friends Machinery Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, toilet paper
Processing Type Other, toilet paper machine
Place of Origin Henan, China
Brand Name FRD
Model Number 1092mm
Voltage 380V,3phase
Power(W) 130kw
Dimension(L*W*H) 6m*4m*3m
Weight 15T
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

1092 high speed small toilet paper pulp making machine from waste paper recycling

                                         with low prices

Specifications:

* Toilet paper making machine
* high speed
* High automaticity
* Higher work speed
* High quality

Technical parameters:

1.Output paper: toilet paper,tissue paper
2.Raw material: recycle paper,virgin pulp
3.Output weight:13-40g/m2
4.Capacity:2tons per day
5.Net paper width:1092mm
6.Wire width:1450mm
7.Design speed:150m/min
8.Working speed: 60-110m/min
9.Rail gauge:1880mm
10.Drive way:AC frequency converter and speed section drive

All equipments:

No.
Item
Qty(set)
1
1092mm Single-cylinder Single-wire paper making machine
1
2
Double layer dryer can Exhausted hood
1
3
Model-33 Roots vacuum pump
1
4
Suction box
1
5
0.9m²High frequency vibration screen
1
6
Model 380double disc Refiner
1
7
35m³pulp washer
2
8
Φ700mmThruster
2
9
Disander
1
10
4 inch pulp pump
4
11
1092mm rewinding and perforating machine
1
12
1092mm paper cutting machine
1
13
1ton boiler(energy: coal or gas or diesel)
1

Dryer main include dryer, carrier roller and scraper.
Dryer raw material is iron alloy and the surface is finished by grinding and polishing.
Its smoothness can reach more than 8—11.
Dryer can carry 0.3Mpa pressure.
Before delivery, it went 0.6Mpa safety cold pressing test.

Accessory

Certifications
Company Information

Qinyang City Friends Machinery Equipment Co., Ltd. is specializing in the production of pulp and paper series of complete set of equipment, set research and development, production and sales as one of the modern enterprise.


Friends machinery with advanced modern management system, Seiko produced, independent innovation, collected and created a large number of technical backbone and management elites, all products were certified by CE, enterprise products continuously updating, with exquisite craft, advanced papermaking technology, strict quality, excellent performance of renowned at home and outside, and in a few years like a day of sincerity has been widely recognized by customers.


The company has first-class sales and technical service team, according to customer needs to provide project design, process design and technical training, etc.. A pre-sale, sale, the after-sales tracking service, fully eliminate the worries of the majority of customers.

Packing & Delivery
FAQ

1.what kind of paper machinery can you produce?
Our main paper making machinery:
①.Toilet tissue paper making machine production line
②.Kraft paper making machine production line
③.Corrugated/fluting paper making machinery production line
④.Culture writing and copy /a4 printing paper making machine production line
Please note that: Above paper making machine will be one complete set paper making production line. from pulp making to final jumbo roll paper.


2.Can you design the production line for customer?
Yes, we have a professional team with rich experience of paper mill design by CAD software.
According to different paper(tissue paper,kraft paper,office A4 paper), different raw material(wood, waste paper, paper pulp), Our technicist and engineer will offer different design.


3.What's necessary information for the paper making line?
♣What kind of paper you want to produce(Important) (such as toilet paper,kraft paper,A4)
♣What kind of raw material you will use(Important) (such as waste paper, rice straw etc)
♣The production capacity you want per day(Important)
♣The paper weight .
♣The paper width.
