Corrugated Paper Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, corrugated paper machine
Processing Type:
Other, Kraft paper and culture paper making machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed z Folding Paper Towel MachineNegotiableMOQ: 1 Set -
3200mm Liner Board MachineNegotiableMOQ: 1 Set
-
FRD Kraft Paper MachineNegotiableMOQ: 1 Set
-
Trade Insurance 2100mm Multi Cylinder Mould Multi Dryer Can Carton Paper Making MachineNegotiableMOQ: 1 Set
-
Factory Low Price High Strength 1880mm Kraft Paper Making Machine, Kraft Liner, Test Liner Production LineNegotiableMOQ: 1 Set
Condition
New
Product Type
Other, corrugated paper machine
Processing Type
Other, Kraft paper and culture paper making machine
Place of Origin
Henan, China
Brand Name
FRD
Certification
CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
2015 hot carton paperboard production line/ corrugated paper making machine
Technical parameter:
1. Raw material: Waste paper, wood pulp
2. Output paper: Kraft paper, corrugated paper
3. Output paper weight: 120-250GSM
4. Net paper width: 2000mm
5. Copper cylinder width: 2400mm
6. Capacity: 15-20T/D
7. Working speed: 25-50m/min
8. Rail space: 2900mm
9. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main machine structure:
1. Cylinder section: Φ 1500mm× 2400mm stainless steel mesh 3sets; Φ 450mm× 2400mm couch roll 4 sets; Reverse roll 1 set; Rubber Share hardness is 38º C± 2, pneumatic pressure device.
2. Press section: Φ 650× 2400mm natural marble roll 1set, Φ 600mm× 2400mm rubber roll 1 set, rubber hardness HSD 95º C± 2. Pneumatic pressure device.

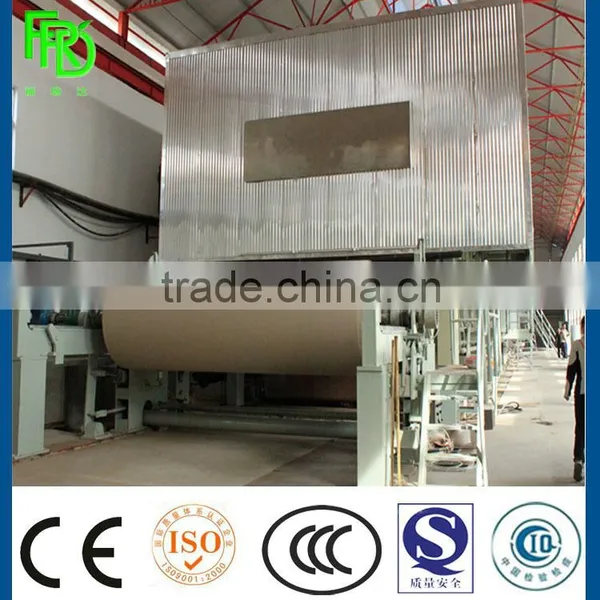

3. Dryer section: Φ 2500mm× 2400mm alloy dryer can 2sets, Φ 600mm× 2400mm touch roll 1 set, Rubber hardness HSD 95º C± 2. Pneumatic pressure device. The second dryer can section is euipped with Inverse press roll Φ 400mm× 2400mm 1 set, Rubber hardness HSD 95º C± 2.
4. Model design: Alloy square frame, section drive, pneumatic pressure device, Alternating current frequency conversion adjustable speed.
1. Raw material: Waste paper, wood pulp
2. Output paper: Kraft paper, corrugated paper
3. Output paper weight: 120-250GSM
4. Net paper width: 2000mm
5. Copper cylinder width: 2400mm
6. Capacity: 15-20T/D
7. Working speed: 25-50m/min
8. Rail space: 2900mm
9. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main machine structure:
1. Cylinder section: Φ 1500mm× 2400mm stainless steel mesh 3sets; Φ 450mm× 2400mm couch roll 4 sets; Reverse roll 1 set; Rubber Share hardness is 38º C± 2, pneumatic pressure device.
2. Press section: Φ 650× 2400mm natural marble roll 1set, Φ 600mm× 2400mm rubber roll 1 set, rubber hardness HSD 95º C± 2. Pneumatic pressure device.
3. Dryer section: Φ 2500mm× 2400mm alloy dryer can 2sets, Φ 600mm× 2400mm touch roll 1 set, Rubber hardness HSD 95º C± 2. Pneumatic pressure device. The second dryer can section is euipped with Inverse press roll Φ 400mm× 2400mm 1 set, Rubber hardness HSD 95º C± 2.
4. Model design: Alloy square frame, section drive, pneumatic pressure device, Alternating current frequency conversion adjustable speed.
| NO. | Equipments | Quantity(set/sets) |
| 1 | 1880mm double-cylinder and multi-mesh kraft paper machine | 1 |
| 2 | dryer can exhaust hood | 1 |
| 3 | axial-flow ventilator | 1 |
| 4 | 15type roots vacuum pulp | 1 |
| 5 | suction box | 1 |
| 6 | 1880three roll calendar | 1 |
| 7 | 1880mm winding machine | 1 |
| 8 | Rewinding machine | 1 |
| 9 | frequency conversion controlling cabinet | 1 |
| 10 | work table | 1group |
| 11 | 2T boiler | 1 |
