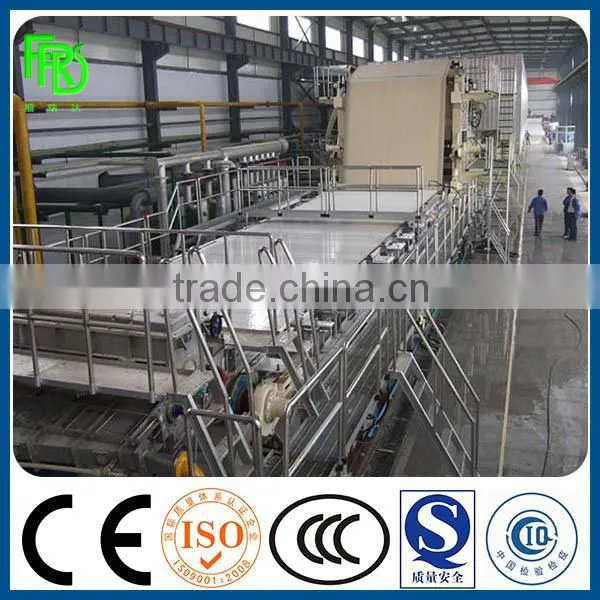

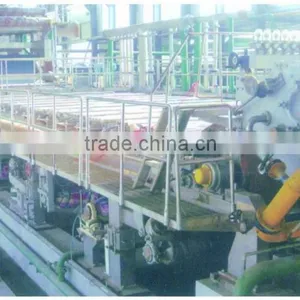

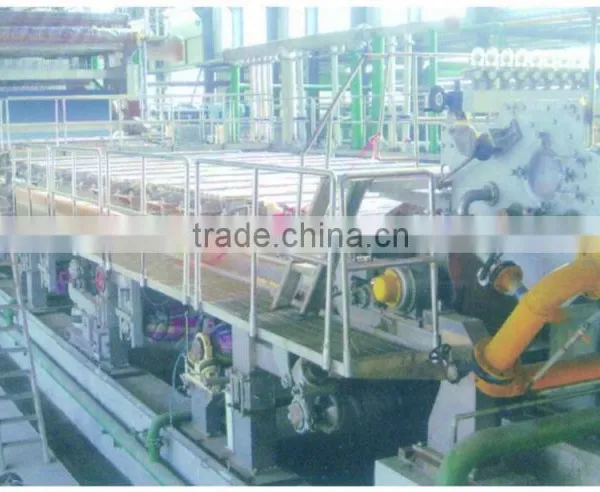

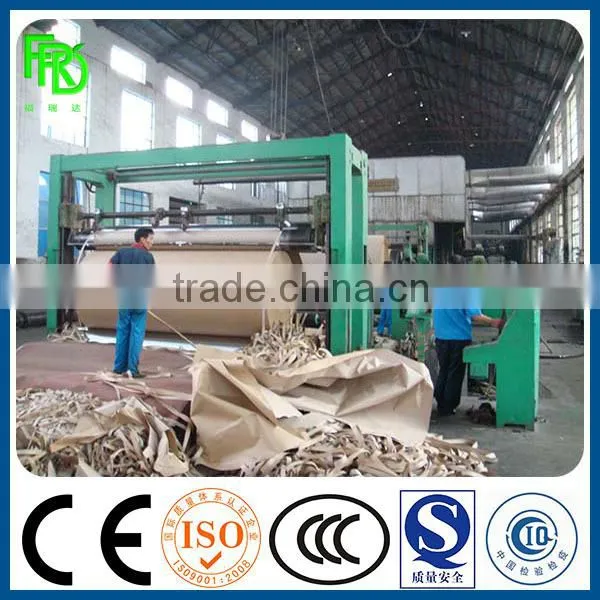

Help Center3200mm Liner Board Machine
Related Products
-
FRD Kraft Paper MachineNegotiableMOQ: 1 Set -
Trade Insurance 2100mm Multi Cylinder Mould Multi Dryer Can Carton Paper Making MachineNegotiableMOQ: 1 Set
-
Factory Low Price High Strength 1880mm Kraft Paper Making Machine, Kraft Liner, Test Liner Production LineNegotiableMOQ: 1 Set
-
Easy Operation Toilet Paper Rewinding Perforating Printing Making Machinery Toilet Paper Converting MachineNegotiableMOQ: 1 Set
-
Production Line of Cardboard Paper Making Machine With High Quality From Qinyang FriendsNegotiableMOQ: 1 Set
Technical parameter:
1. Raw material: Waste paper, wood pulp
2. Output paper: Kraft paper, corrugated paper, fluting paper
3. Output paper weight: 120-250GSM
4. Net paper width: 2000mm
5. Copper cylinder width: 2400mm
6. Capacity: 15-20T/D
7. Working speed: 25-50m/min
8. Rail space: 2900mm
9. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main machine structure:
1. Cylinder section: Φ 1500mm× 2400mm stainless steel mesh 3sets; Φ 450mm× 2400mm couch roll 4 sets; Reverse roll 1 set; Rubber Share hardness is 38º C± 2, pneumatic pressure device.
2. Press section: Φ 650× 2400mm natural marble roll 1set, Φ 600mm× 2400mm rubber roll 1 set, rubber hardness HSD 95º C± 2. Pneumatic pressure device.
3. Dryer section: Φ 2500mm× 2400mm alloy dryer can 2sets, Φ 600mm× 2400mm touch roll 1 set, Rubber hardness HSD 95º C± 2. Pneumatic pressure device. The second dryer can section is euipped with Inverse press roll Φ 400mm× 2400mm 1 set, Rubber hardness HSD 95º C± 2.
4. Model design: Alloy square frame, section drive, pneumatic pressure device, Alternating current frequency conversion adjustable speed.
For twenty years, the rapid development of enterprises, production capacity and production levels rising, expand the scale of production, has been awarded the contract to, the credibility of the enterprise.By the users trust and praise.
