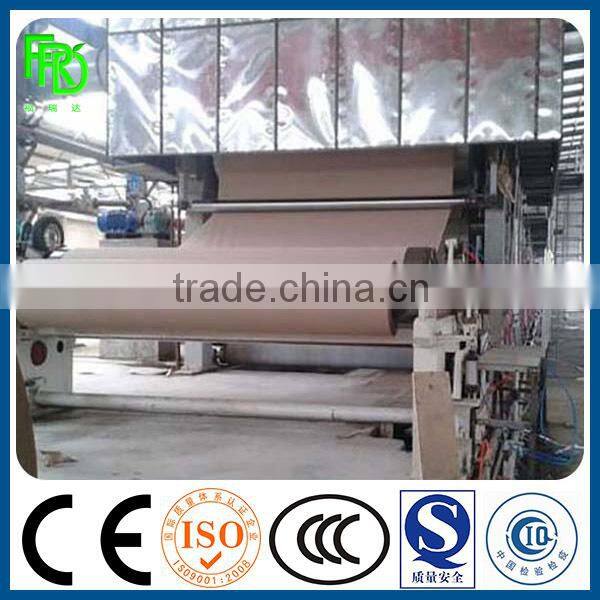

Help CenterTrade Insurance 2100mm Multi Cylinder Mould Multi Dryer Can Carton Paper Making Machine
Related Products
-
Factory Low Price High Strength 1880mm Kraft Paper Making Machine, Kraft Liner, Test Liner Production LineNegotiableMOQ: 1 Set -
Easy Operation Toilet Paper Rewinding Perforating Printing Making Machinery Toilet Paper Converting MachineNegotiableMOQ: 1 Set
-
Production Line of Cardboard Paper Making Machine With High Quality From Qinyang FriendsNegotiableMOQ: 1 Set
-
High Quality Corrugate Kraft Paper Paper Making Production LineUS$ 10,000 - 200,000MOQ: 1 Set
-
Small Capacity Flutting Liner Paper Makong MachineUS$ 10,000 - 200,000MOQ: 1 Set
Kraft Paper Machine Copy Paper Making Machinery White Cardboard Machines
Fluting, Testliner, white cardboard, Kraft PM, Writing & copy PM.
Basis weight: 90-350g/m2
Trim width at Pope: 1800-6600mm
Working speed: 100-600m/min
Daily production: 30-700t/day according to different paper width, working speed, etc..
Typical configuration:
1. Headbox: pressure headbox / Hydraulic headbox with anti-pulsation device

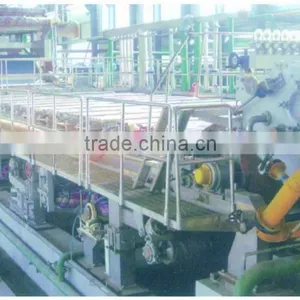

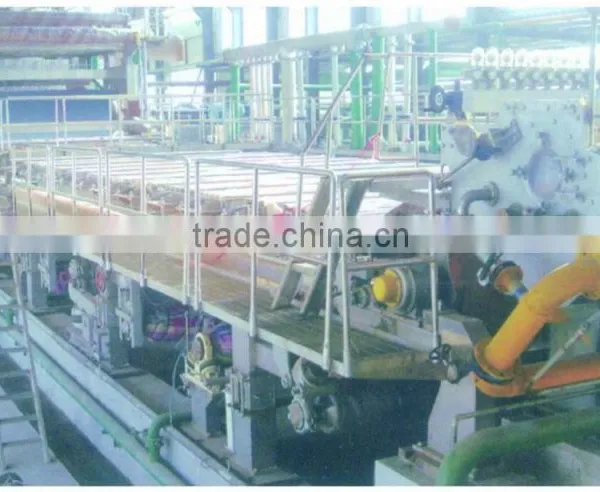

2. Wire part: Longitudinal wire or Vat cylinder for different paper grades and machine configuration.
Breast roll |
Suction couch roll |
Vacuum tube |
Guide roll |
Wire return roll |
Platform, Walkways, Ladders |
Forming roll |
Dewatering elements |
Roll doctor |
Forwarder roll |
Forming wire |
Shower (HP, LP) |
Couch pit agitator |
3. Press part: The configuration type will be different due to different paper grades and machine such as Large-dia. Press, Vacuum peress, Extended-nip press, etc..The linear pressure ranges from 60-150 N/cm generally.
Suction pickup roll |
Stonie roll |
Hydraulic loading & control system |
Suction press roll |
Suction box for felt cleaning |
Shower (HP/LP) |
Spread roll |
Felt |
Frame |
BD press roll |
Felt regulator |
Platform, walkways, ladders |
Plain press roll |
Granite roll |
|
4. Drying part: two-row type arrangement with several group
Drying cylinder |
Suction cylinder |
Doctor for drying cylinder |
Gear wheel |
Frame |
Close hood with heat recovery system |
Wire guide |
Stretcher |
5. Sizing press: Generally, Sizing is equipped on cardboard paper machine to increase mechanical properties.
The main list:
The finished product:
Friends paper making machinery equipment Co.,Ltd is a high-tech enterprise of a research and development,manufacturing,technical services in one,the company passed the ISO9001 quality management system certification in 2009.The company mainly produces pulping equipment,paper making equipment,clean pulping equipment and environmental protection equipment four categories,more than 60 series and more than 200 kinds of products,sixteen kinds of products obtained national patent.
Companies adhere to the “industrial science and technology innovation as the driving force,and constantly develop new products to energy saving and high efficiency,high technology and services to customers,with superior product quality to win the trust of customers.Friends has the right to import and export,the products are sold through out the country and exported to Vietnam,Thailand,India,Indonesia,South Africa,Syria,USA,Middle East,Russia and other countries,in the international market has formed a good corporate image and product brand.
Sustainable development of an enterprise depends on the brand,the effective maintenance and continuation of business.Unified,strong and Implicit profound brand culture,is the foundation and the power enterprises’ growth.There is no culture,enterprises can only stop stay in the shallow level of penny earn,never popular.Erect a banner to the enterprise culture.Pointed out the direction,highlight the core with goal of strengthening the management of Enterprises,from building the unique spirit of enterprise system start.
Companies adhere to the “industrial science and technology innovation as the driving force,and constantly develop new products to energy saving and high efficiency,high technology and services to customers,with superior product quality to win the trust of customers.Friends has the right to import and export,the products are sold through out the country and exported to Vietnam,Thailand,India,Indonesia,South Africa,Syria,USA,Middle East,Russia and other countries,in the international market has formed a good corporate image and product brand.
Turn-key engineering service
Complete project design
Lubrication system & Hydraulic system
Stock preparation system design
QCS system & Steam condensate system
Approach system design
Automation control system(MSC)
Vacuum system
Spare parts
Rolls
DST doctor & DST double doctor
Gear box & Drive gear
Various kinds of stretcher & Corrector
Drive shaft & Universal joint couplings
Paper machine designing & manufacturing
Paper machine remodification & boost
Paper machine erection & test-run
Paper machine ventilation system design &manufacturing
Rewinder supplies
Complete paper machine & equip spare parts supplies
