1. generator natural gas feature
1) generator natural gas consumption: 0.28Nm³/kw.h
2) generator natural gas running cost lower.
3) generator natural gas can be installed on your site.
4) We supply you spare parts during the whole service life for generator natural gas.
5) generator natural gas adopt Cummins engine block, Deutz engine, Steyr engine or China engine. Quality very good and it is easy for customer to get maintenance spare parts.
6) generator natural gas adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
7) generator natural gas adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for generator natural gas is 2~7kPA.
2. Our advantage on generator natural gas
1. Professional generator natural gas manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards and USA technology to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
all the above advantage will be showed by photos.
3. Generator natural gas specification
| Gas gen-set | Gas-Engine | Alternator | Overall Size (mm) | Net Weight (kg) | ||
| Model | Rated Power (kW/kVA) | Rated Current (A) | Model | Model | ||
| SPT10GF | 10/12.5 | 18 | SP2100DT | 164C | 1600X650X1250 | 470 |
| SPT20GF | 20/25 | 36 | SP4100DT | 184EF | 2000X730X1320 | 620 |
| SPT30GF | 30/37.5 | 54 | SP4105DT | 184H | 2100X730X1320 | 760 |
| SPT40GF | 40/50 | 72 | SP6105DT | 224D | 2480X800X1320 | 1200 |
| SPT50GF | 50/62.5 | 90 | SP6105DT | 224E | 2500X800X1320 | 1250 |
| SPT70GF | 70/87.5 | 126 | SP6135DT | 224G | 2550X1010X1430 | 2410 |
| SPT90GF | 90/112.5 | 162 | SP6135ADT | 274D | 2550X1010X1470 | 2530 |
| SPT120GF | 120/150 | 216 | SP6140ADT | 274F | 2700X1010X1470 | 2600 |
| SPT160GF | 160/200 | 288 | SP12V135DT | 274H | 3060X1350X1790 | 3200 |
| SPT200GF | 200/250 | 360 | SP12V138DT | 4C | 3060X1350X1790 | 3300 |
| SPT400GF | 400/500 | 720 | SP12V190DT | 1FC | 4600X2040X2210 | 10700 |
| SPT500GF | 500/625 | 900 | SP12V190ZDT | 1FC | 4820X2040X2780 | 12000 |
| SPT700GF | 700/875 | 1260 | SPG12V190ZLDT | 1FC | 5120X2040X2250 | 11800 |
| SPT800GF | 800/1000 | 1440 | SPA12V190ZLDT | 1FC | 6190*2110*2800 | 12000 |
| SPT1000GF | 1000/1250 | 1800 | SPAD12V192ZLT2 | 1FC | 6710*2950*3000 | 32000 |
4. generator natural gas electronic data
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |

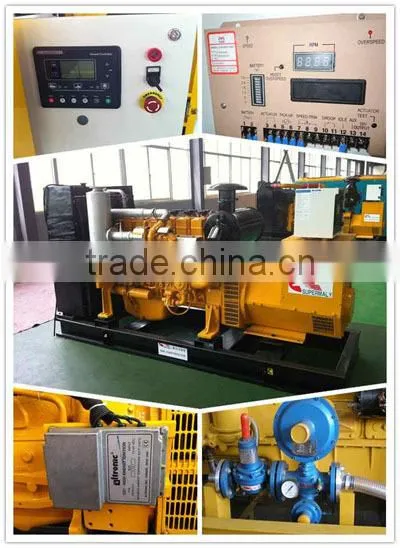

5. generator natural gas photos
generator natural gas installed all over the world
generator natural gas tested before delivery
Packaging and shipping of generator natural gas
Our factory 35000 square meters. welcome visit us.
Warranty policy of generator natural gas:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service of generator natural gas:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
If there is any problem, pls contact with me by email or online. Thanks.
