1. natural gas generator set feature
1) natural gas generator set gas consumption: 0.28Nm³/kw.h
2) natural gas generator set running cost lower.
3) natural gas generator set can be installed on your site.
4) We supply you spare parts during the whole service life for natural gas generator set.
5) natural gas generator set adopt Cummins engine block, Deutz engine, Steyr engine or China engine. Quality very good and it is easy for customer to get maintenance spare parts.
6) natural gas generator set adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
7) natural gas generator set adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for natural gas generator set is 2~7kPA.
9) natural gas generator set with electrical mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
2. Our advantage on natural gas generator set
1. Professional natural gas generator set manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards and USA technology to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
all the above advantage will be showed by photos.
3. natural gas generator set specification
| Gas gen-set | Gas-Engine | Alternator | Overall Size (mm) | Net Weight (kg) | ||
| Model |
Rated Power (kW/kVA) |
Rated Current (A) | Model | Model | ||
| SPT10GF | 10/12.5 | 18 | SP2100DT | 164C | 1600X650X1250 | 470 |
| SPT20GF | 20/25 | 36 | SP4100DT | 184EF | 2000X730X1320 | 620 |
| SPT30GF | 30/37.5 | 54 | SP4105DT | 184H | 2100X730X1320 | 760 |
| SPT40GF | 40/50 | 72 | SP6105DT | 224D | 2480X800X1320 | 1200 |
| SPT50GF | 50/62.5 | 90 | SP6105DT | 224E | 2500X800X1320 | 1250 |
| SPT70GF | 70/87.5 | 126 | SP6135DT | 224G | 2550X1010X1430 | 2410 |
| SPT90GF | 90/112.5 | 162 | SP6135ADT | 274D | 2550X1010X1470 | 2530 |
| SPT120GF | 120/150 | 216 | SP6140ADT | 274F | 2700X1010X1470 | 2600 |
| SPT160GF | 160/200 | 288 | SP12V135DT | 274H | 3060X1350X1790 | 3200 |
| SPT200GF | 200/250 | 360 | SP12V138DT | 4C | 3060X1350X1790 | 3300 |
| SPT400GF | 400/500 | 720 | SP12V190DT | 1FC | 4600X2040X2210 | 10700 |
| SPT500GF | 500/625 | 900 | SP12V190ZDT | 1FC | 4820X2040X2780 | 12000 |
| SPT700GF | 700/875 | 1260 | SPG12V190ZLDT | 1FC | 5120X2040X2250 | 11800 |
| SPT800GF | 800/1000 | 1440 | SPA12V190ZLDT | 1FC | 6190*2110*2800 | 12000 |
| SPT1000GF | 1000/1250 | 1800 | SPAD12V192ZLT2 | 1FC | 6710*2950*3000 | 32000 |
4. natural gas generator set electronic data
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |

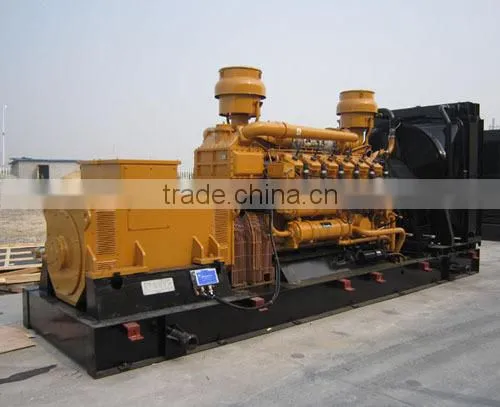

5. natural gas generator set photos
natural gas generator set installed all over the world
Test before delivery for natural gas generator set
Packaging and shipping of natural gas generator set
Our factory 35000 square meters. welcome visit us.
Warranty policy of natural gas generator set:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service of natural gas generator set:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
If there is any problem, pls contact with me by email or online. Thanks.
