Specifications

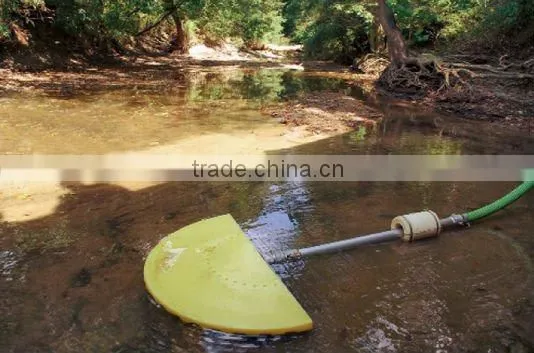

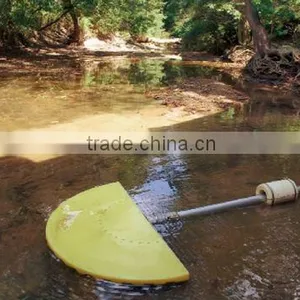

The vacuum skimmer is composed of two parts: one is the skimmer's main unit and another is the power station.The vacuum skimmer is composed of two parts: one is the skimmer’s main unit and another is the power station.
The diesel vacuum power station with a vacuum pump driven by a diesel engine or motor. Resulting in a vacuum in the buffer tank, can collect oil spill on a beech, ground or water surface into a buffer tank through the suction head. The collected oil spill are then pumped into the oil storage facility on the shore or boat, so that the recovery function can be achieved.
This equipment can be widely used on a beach, shoal, reef, land or other site where there are oil spills to be recovered. It can also be used on the waters of harbours, oil ports, wharfs, rivers, lakes, shipyards, ship-breaking yards, petroleum and chemical industries, power plants, wastewater treatment plants and other site where there are oil spills to be recovered.
Technical Data:
|
Model
Parameter |
JXY- ZJK-5 |
JXY- ZKJ-10 |
JXY- ZKJ-20 |
JXY- ZKJ-30 |
JXY- ZKJ-60 |
|
Max. skimming rate (m³/h) |
5 |
10 |
20 |
30 |
60 |
|
Max. Vacuum
|
-0.044MPa |
-0.044MPa |
-0.044MPa |
-0.044MPa |
-0.044MPa |
|
Buffer tank Diameter (mm) |
710 |
710 |
710 |
840 |
900 |
|
Oil pumping station power (KW) |
4.0/3 |
6.3/4 |
6.3/5.5 |
14.5/7.5 |
14.5/11 |
Note: The technical data are subject to change without notice due to modifications to the product and shall be confirmed by the manufacture and the customer.
