Home > Instruments & Meters > Meter for Electricity > Current Meter > Double Display YB28VA DC Digital 10A Voltmeter Ammeter Digital DC Voltage Ammeter
Double Display YB28VA DC Digital 10A Voltmeter Ammeter Digital DC Voltage Ammeter
US$ 10.00 - 10.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
YB28VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo wenzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LCD 199.9V & DC50A Amp Volt Combo Meter With Shunt , Power Supply AC220VUS$ 10 - 10MOQ: 100 Pieces -
D52-2048 AC80-300V 100A Din Rail LED Voltmeter Ammeter With Active and Reactive Power and Power Factor 5in 1AC Combo MeterUS$ 11.5 - 12.5MOQ: 100 Pieces
-
Din Rail LED AC 200-450V 0-100A Display Voltmeter Ammeter With Active and Reactive Power and Power Factor 5 in 1 Combo MeterUS$ 11.5 - 13MOQ: 100 Pieces
-
Din Rail Ammeter Voltmeter Dual Dipaly AC80-300V AC0.1-99.9A Amp Volt Combo MeterUS$ 7.5 - 10MOQ: 100 Pieces
-
Din Rail Dual LED Display Voltage and Current Meter Din-rail Voltmeter Ammeter Range AC 200-450V 0.1-99.9AUS$ 7.5 - 10MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
YB28VA
Display Type
Digital Only
Measuring Range
600V 20A
Accuracy Class
1% (+ /-1)
Supply Voltage
DC4.5-30V
Operating Temperature
-10~+65
Dimensions
54 x30 x 21mm
Feature
- Measure voltage: DC0-600V
- Measure current:20A

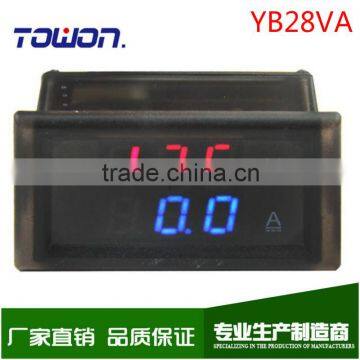

- Display: 0.28"LED
- Display color: double color (Red+Blue)
- Working voltage: DC 4.5-30V Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
- Working current:≤20mA

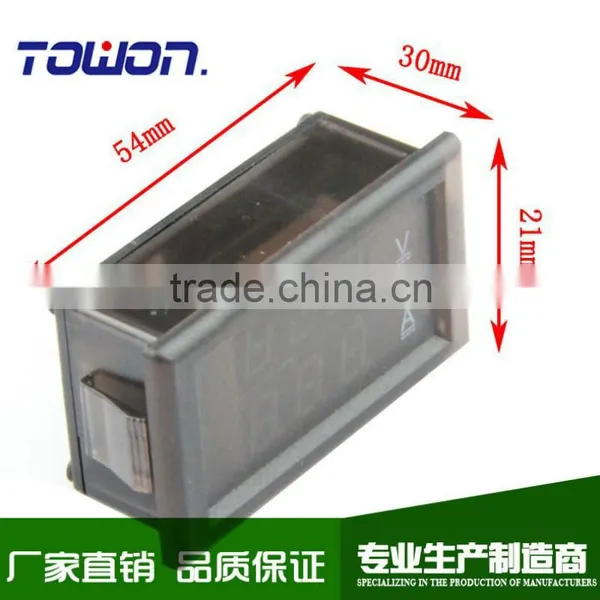

- Outside dimension: 54 x30 x 21mm
- Mounting dimension: 47.2 x 27.3mm
- Measure Rate: ≥500mS/ Time
- Measure Accuracy: 1% (± 2 words)
- Cable for charger, voltage test: about 150mm
- Cable for Transformer : about 150mm

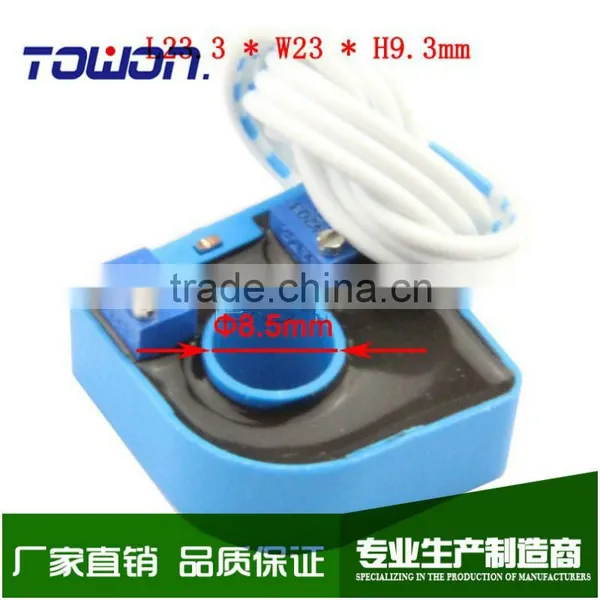

- Threading hole: diameter 8.5 mm
- Transformer dimension: L23.3 x W23 x T9.3m
- Extreme working conditions:
- The minimum power supply voltage:+4.0V
- The highest power supply voltage:+30V
- The working temperature: -10 to +65 Degree
- Working humidity: 10-80% (no condensation)
- Working air pressure: 80-106kPa
- Do not direct illuminat

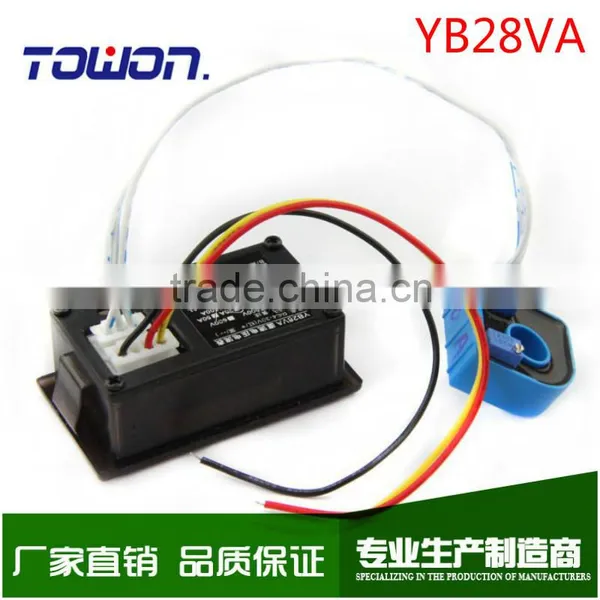

Wiring:
- Red line: Header of Power meter - Positive, the highest can not over than 30V.
- Yellow line: Voltage test "Positive"
- Black line: Header of meter Negative, voltage test Negative (Common ground line)
Connection note:
- Transformer can be arbitrary string in the anode, cathode, any line of test line or the anode, cathode current of equipment.
- Because after 24V battery charge floating voltage may be more than 30V, so "no" suggest directly use 24V battery power supply.
- In order to get higher precision of measurement, it is recommended that the electricity to preheat the first five minutes to zero calibration.
USES:
- The meter is equipped with three wiring and wiring is simple, convenient access to solar system/car/battery car/motorcycle car line, is used to monitor the battery voltage, timely grasp the battery charge and discharge, voltage and current measurement can also be used for other products.
Note:

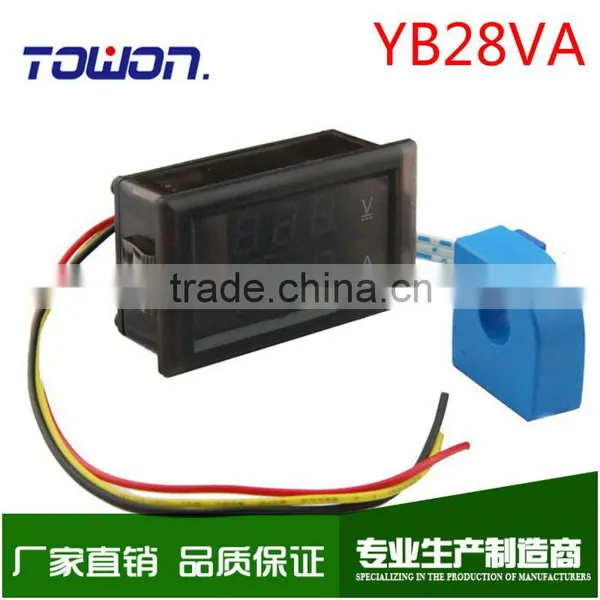

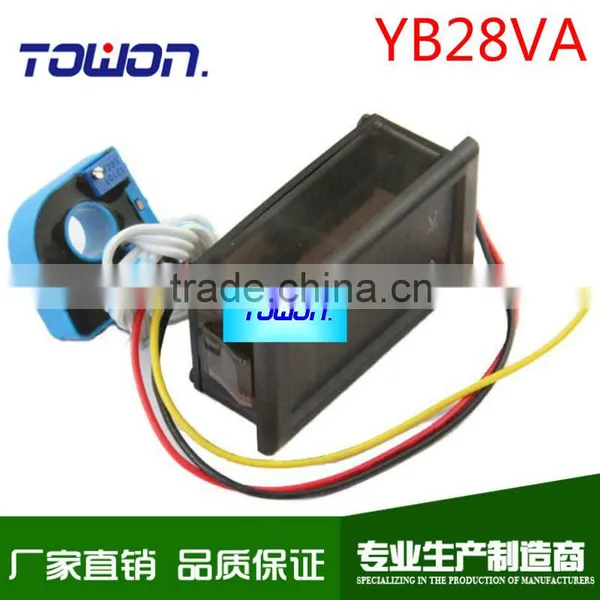

- In this meter include: LED display table, current transformer CT, no need to purchase another transformer or shunt.
- Please try not to install the meter and the current transformer in high temperature, strong magnetic field, large transformer, otherwise it will affect the precision.
- When choosing range, not the larger the range, the better, the greater the scale range error, Suggestions for the actual test value of 1.5 or 2 times
