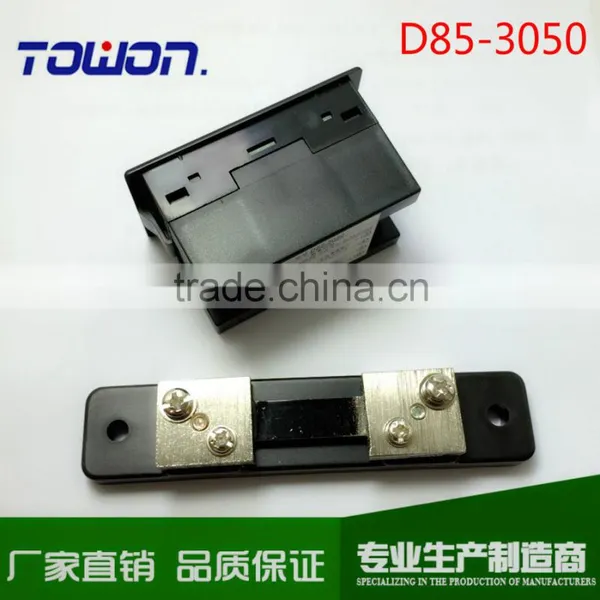

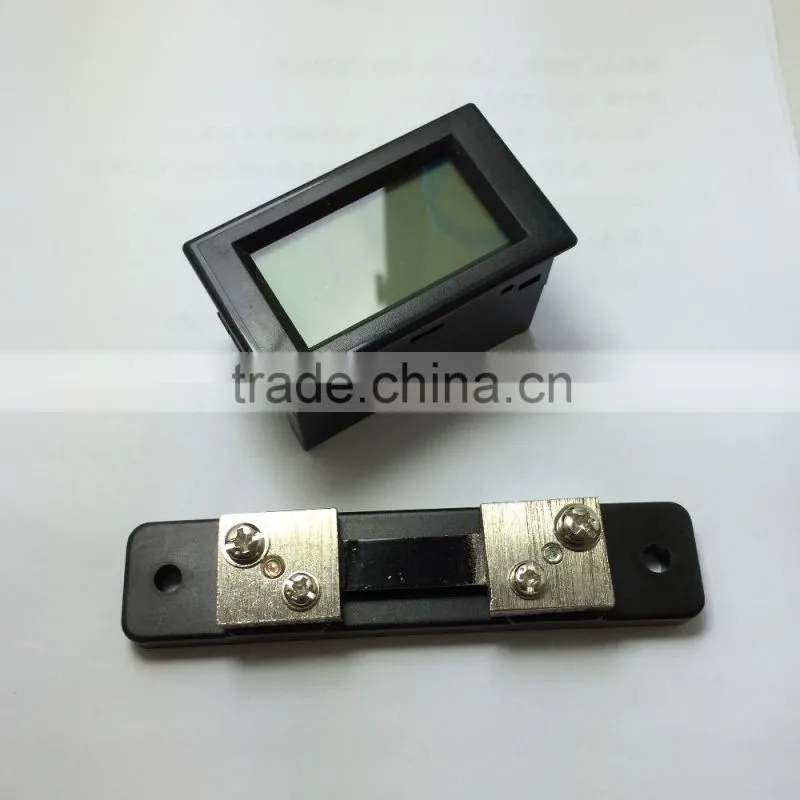

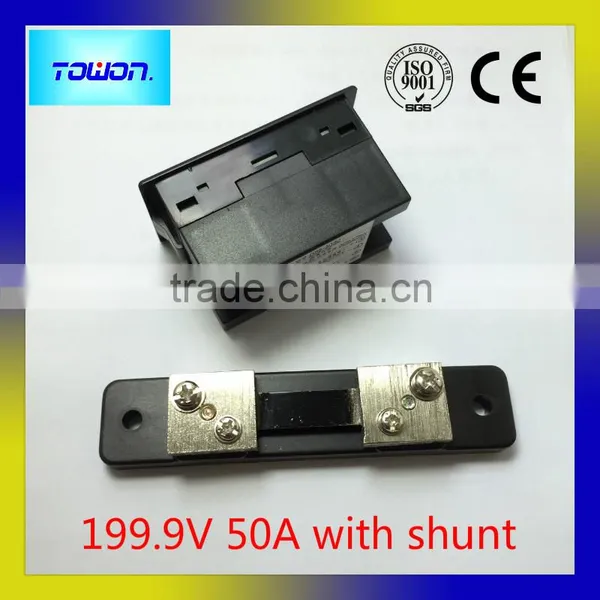

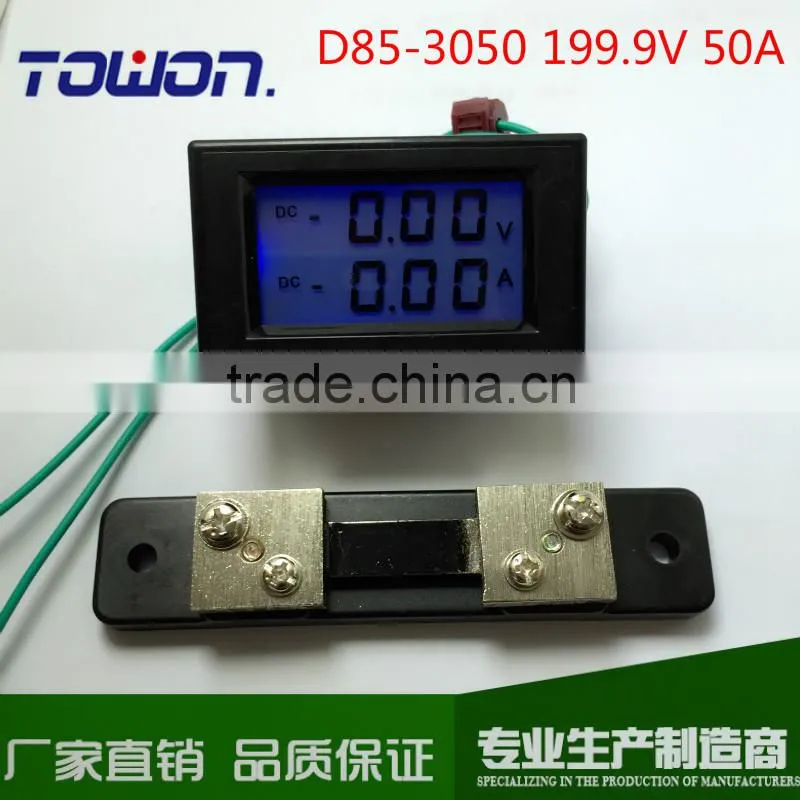

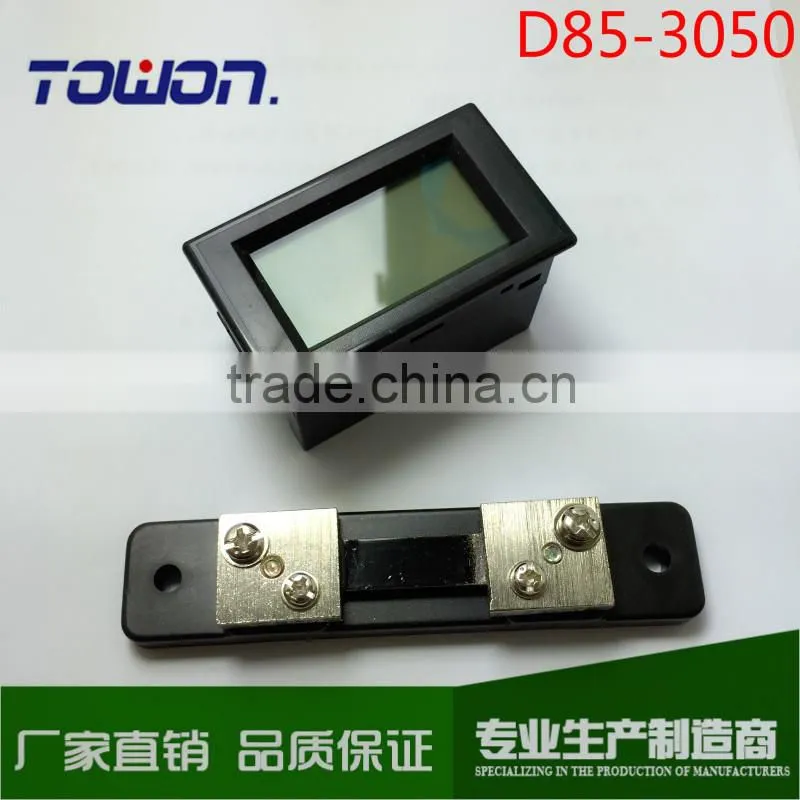

DC199.9V & 50A LCD Digital DC ammeter voltmeter 2 in 1 combo meter with shunt power supply:AC 220V
If you have 50A/75mv shunt you can only buy amp & volt combo meter here
Description:

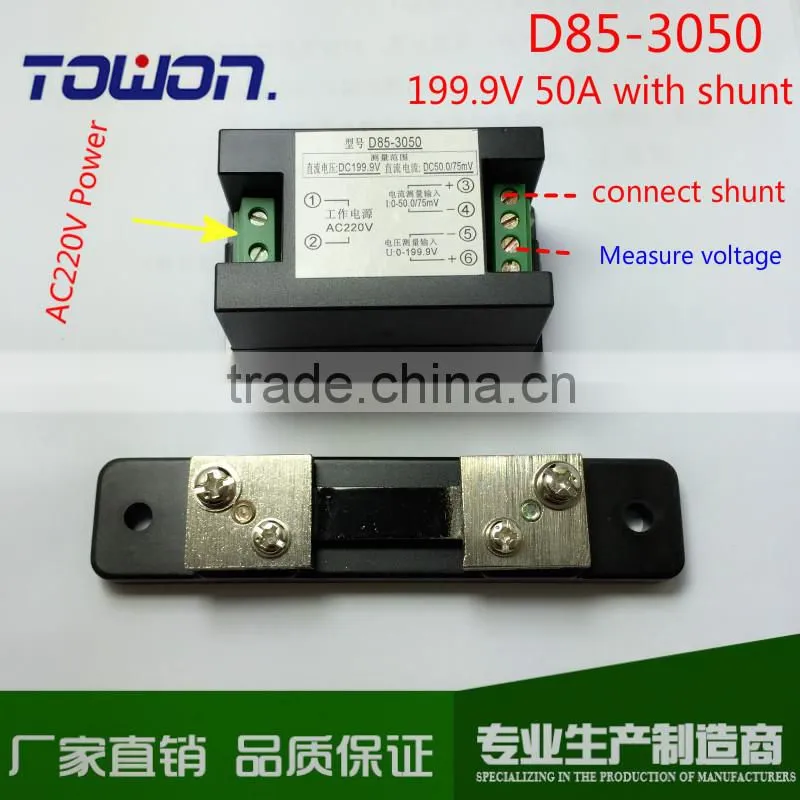

The ammeter is in the same instrument on the screen at the same time show the measured DC voltage and DC current. The Er measurement of the DC voltage and DC current to be measured is completely isolated in the instrument, the user may need to be used in the external circuit common ground or other forms measured.
Main technical indicators:
1. Measurement accuracy: 1% ± 2 words
Display: LCD liquid crystal display (visible screen size: 43 * 25mm)
Measuring range: 0-199 .9 v 50A DC
4 Power Consumption: <0.5VA
Measurement speed: about 2 times per second
Working power supply: AC220V ± 10%
Dimensions: 70 (L) * 40 (W) * 39mm (deep / thick)
8 installation size: 68 (L) * 38 (W) mm (embedded installation)
