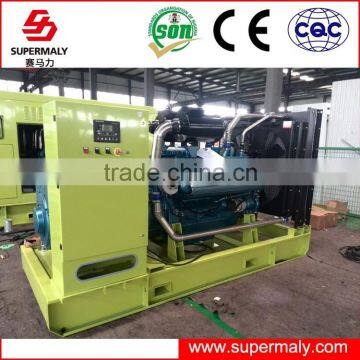

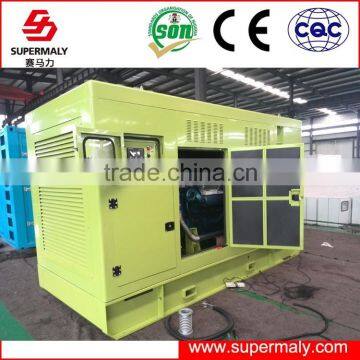

Specification of 150kva with doosan engine
Genset model :SDW120GF
Frequency :50HZ
Voltage :400/230V
Phase :3P 4W
Prime power :120/150
Standby power :132/165
Overall Size mm:2400*950*1300
Gross Weight (kg):1400
Diesel Generator :
Model:P086TI-1
Type :Closed water-cooled, in line,4 stroke ,wet cylinder liner, direct injection, 1500rpm
Rated power(kw):149
Intake type:Turbocharged
No.of Cylinder :6.L
Bore *Stroke : 111*139
Displacement (L):8.1
Compression Ratio :16.4:1
Alternator :
Model :XN274FS
Power effiency :92.3%
Excitation type :Brushless
Insulation Class:H
- 40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield;
- MCCB, standard control panel; (digital display control panel supports eight languages worldwide)
- steel common base with shock absorber
- dry type air filter, fuel filter, lubricating oil filter, starter motor, and self-charging generator;
- starter battery and connecting cables;
- industrial 90dB muffler and standard connecting parts
- wooden case
- Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, diesel generator certification, test report, alternator manual, etc. .
Other model :
| Genset model | Prime power kw/kva | Standby power kw/kva | Diesel Engine Model | Rated power kw/kva | Intake type | No.of cylinder | Displacement L | Lub oli capacity L | Rated fuel consumption L/h |
| SDW80GF | 80/100 | 88/110 | D1146T | 108 | Turbocharged | 6.L | 8.1 | 22 | 24 |
| SDW100GF | 100/125 | 110/137.5 | D1146T | 108 | Turbocharged | 6.L | 8.1 | 22 | 24 |
| SDW120GF | 120/150 | 132/165 | P086TI-1 | 149 | Turbocharged | 6.L | 8.1 | 15.5 | 33 |
| SDW150GF | 150/188 | 170/213 | P086TI | 177 | Turbocharged | 6.L | 8.1 | 15.5 | 3.9 |
| SDW160GF | 160/200 | 176/220 | P086TI | 177 | Turbocharged | 6.L | 8.1 | 15.5 | 3.9 |
| SDW200GF | 200/250 | 220/275 | P126TI | 241 | Turbocharged | 6.L | 11.1 | 23 | 53 |
| SDW250GF | 250/313 | 275/344 | P126TI -II | 265 | Turbocharged | 6.L | 11.1 | 23 | 60 |
| SDW300GF | 300/375 | 330/413 | P158LE-1 | 327 | Turbocharged | 8.V | 14.6 | 28 | 73 |
Alternator:you can choose Stamford, Marathon,Leroy Somer ,and so on.
OEM of 150kva with doosan engine
Packing :wooden case or ply wood
Shipping :after 2-15days
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service
