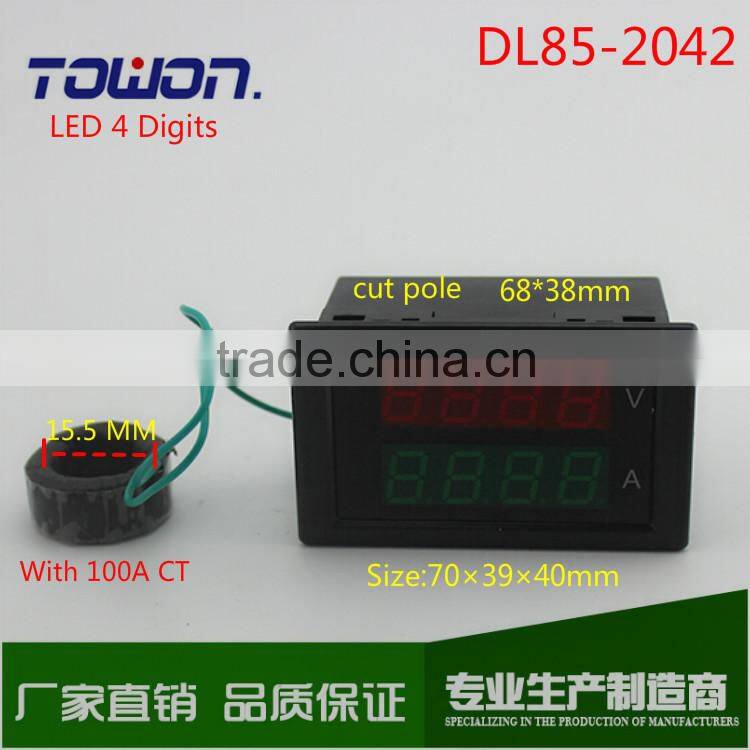

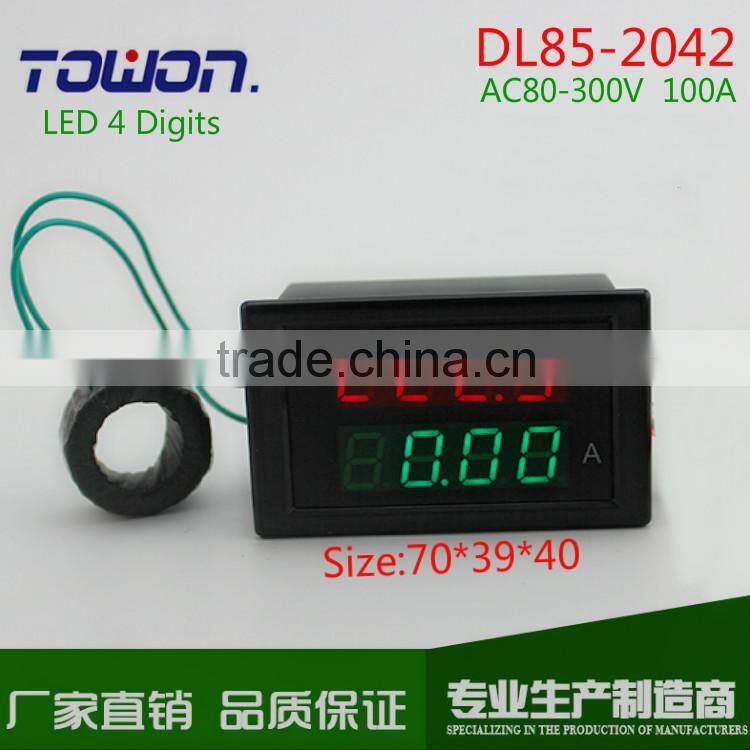

Dual LED 4 digital AC 80-300V 0.00-100.0A display Voltage and current meter panel voltmeter ammeter
- 500000 Piece / Pieces per Month
- Shanghai ninbo wenzhou
- Credit Card
- Acrel PZ48-AI/C Single phase current meter LED display with RS485 Modbus-RTU communication
- panel mountable type DC ammeter AMC72-DI/C input DC0-5A LED display digital DC ammeter
- Acrel PZ72-AI/J smart ammeter with Alarm out over/under current
- Acrel AC Three-phase Voltmeter LCD display digital Voltage Meter with RS485 modbus
- Single-phase AC Digital Ammeter AMC72-AI LED Display Input: AC 1A or 5A
- complete set of impulse current generator
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TOWON | Model Number: | DL85-2042 |
Display Type: | Digital Only | Measuring Range: | AC80-300V 100A | Accuracy Class: | 1% |
Supply Voltage: | 220V | Operating Temperature: | -10~60 | Dimensions: | 70*40*39 |
Product Description
AC voltage and current meter can display AC voltage and current at the same time.
Technical Indicators
1. Accuracy: 1%+-2Words
2. Display mode: AC voltage and current with 4- digital 0.31- inches LED,
Range: AC Voltage: 80-300V
AC Current: 0-100.0A Please don't exceed the range, or will damage the meter!!
The resolution ratio will change by itself, when input current lower than 10A, then resolution ratio is 0.01A, When input current higher than 10A the resolution ratio is 0.1A
Power supply:<0.2VA
Speed: 2 per second
Size: 70*39*40
Installing Size: 68mm*38mm
Application method

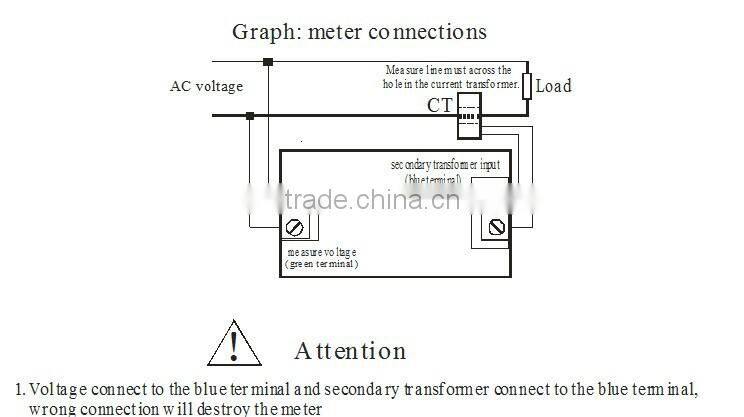

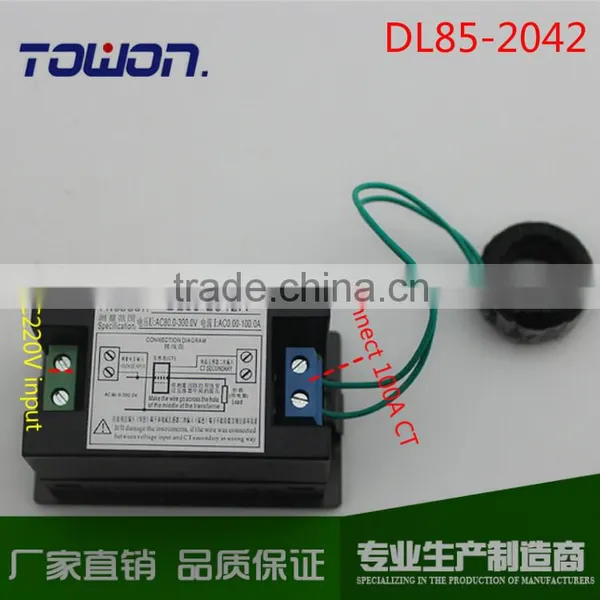

1. Connect the wires ( Blue wire) of secondary transformer to the blue terminal on the meter, the measure line must across the hole in the current transformer.
2. Connect the measure voltage wire to the green terminal.
