Help CenterDin Rail LED AC 80-300V 99.9A Voltmeter Ammeter Display Active Power and Power Factor Time Energy Meter Voltage Current
Related Products
-
D69-2042 Dual LCD Display Voltage and Current Meter Blue Backlight Panel Voltmeter Ammeter Range AC 80-300V 0-99.9A BlackUS$ 6 - 7MOQ: 1000 Pieces -
DL85-2041 Dual LED Display Voltage and Current Meter Blue Backlight Panel Voltmeter Ammeter Range AC 80-300V 0-50.0AUS$ 6 - 6MOQ: 100 Pieces
-
DL85-2042 Amp Voltmeter AC80-300V 100A Display LED Digital Voltmeter Ammeter Volt Amp Panel BlackUS$ 6 - 8MOQ: 1000 Pieces
-
D69-2041 AC80-300V/50A Amp Meter Voltmeter Dual Display LCD AC Digital Voltmeter Ammeter Volt Amp Panel MeterUS$ 6 - 7MOQ: 100 Pieces
-
White Cover D69-2041 AC80-300V/50A AC Amp Volt Combo Meter With 50A Current TransformerUS$ 6 - 7MOQ: 1000 Pieces
Measure:
1. AC Voltage V
2. AC Current A
3. Active power W
4. Electric energy Kwh
5. Electric energy of cumulative time h
6. Power factor
7. Reset to zero. Press the SAM CK for 5 seconds, the Electric energy and Electric energy of cumulative time will reset to zero.
DIN rail multi function Digital meter can measure AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.
Technical Indicators
1. Accuracy: 1%±2 words
2.Display Mode: AC voltage and power factor use four red led of 0.31-inch
AC current and electric energy of cumulative time use five red led of 0.31-inch
Active power, electric energy use five green led of 0.31-inch
3.Range: AC voltage : AC 80.0-300.0V
AC 0.0-100.0A ( when measure signal lower than 100A, the accuracy is 0.01A, when measure
signal higher than 100A, the accuracy is 0.1A, the accuracy auto-change)
Active power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )
0.0-45000W ( measure voltage AC 200.0 - 450.0V )
Electric energy: 0.000-99999kwh
Electric energy of cumulative time: 0.00 - 999.59h
Power factor: 1.000-0.000
4.Speed: 2 times per second
5.Size: 54*80*64
6.Installation: Din-Rail
Application Method

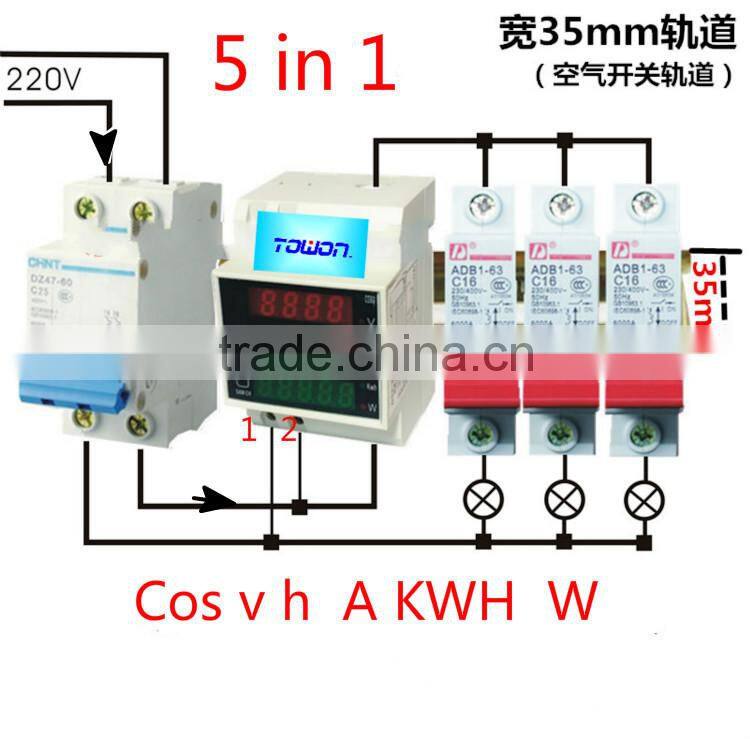

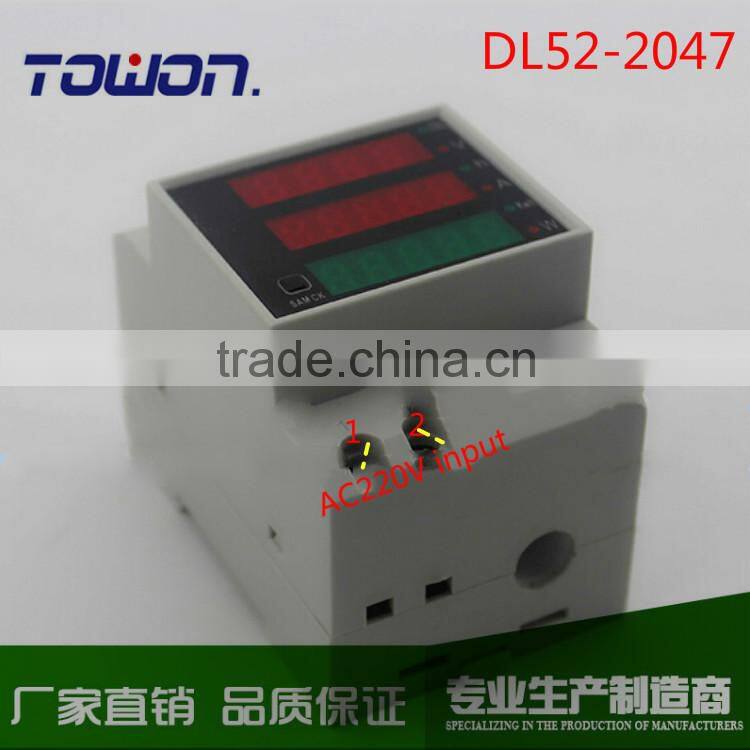

1.Connect the measuring voltage to the 1 and 2 terminal.

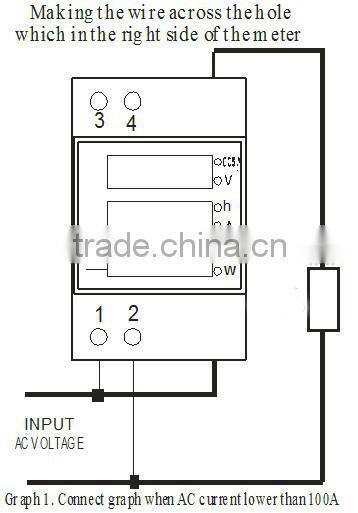

2.Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.
3.When power on, the meter will display the measure result of the AC voltage (V), AC current (A) and active power (W)and the correlative red led will light up.

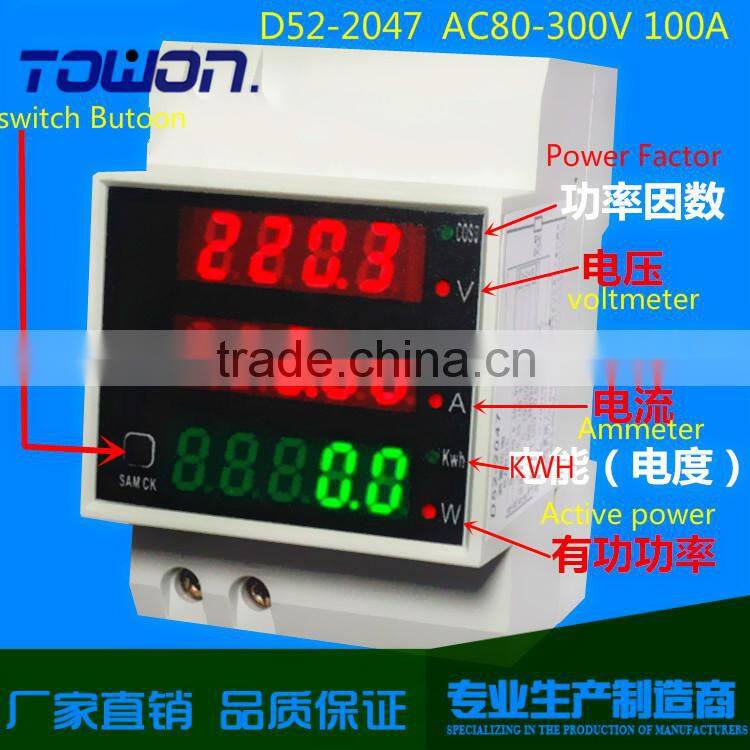

4.When press the button of SAM CK (on the right of meter) down, the meter will change to display the measure result of power factor (cosΦ), electric energy of cumulative time (h) and electric energy (kwh) and the correlative red led will light up.
5.When press the button of SAM CK down again, the meter will display the measure result of the AC voltage, AC current and active power.
6. When power off, the meter can save the value of electric energy and electric energy of cumulative time, and go on cumulating data when the meter power on again.
7.When the meter is displaying electric energy, you can press down the button of SAM CK last for five seconds, then the electric energy and electric energy of cumulative time will to be zero and start to cumulate when release the button.
