Help CenterD69 Multi-functional LED Display Panel Meter Voltmeter Ammeter With Active and Electric Energy and Power Factor 200-450V 0-100A
Related Products
-
Din Rail LED AC 80-300V 99.9A Voltmeter Ammeter Display Active Power and Power Factor Time Energy Meter Voltage CurrentUS$ 14.8 - 16MOQ: 100 Pieces -
D69-2042 Dual LCD Display Voltage and Current Meter Blue Backlight Panel Voltmeter Ammeter Range AC 80-300V 0-99.9A BlackUS$ 6 - 7MOQ: 1000 Pieces
-
DL85-2041 Dual LED Display Voltage and Current Meter Blue Backlight Panel Voltmeter Ammeter Range AC 80-300V 0-50.0AUS$ 6 - 6MOQ: 100 Pieces
-
DL85-2042 Amp Voltmeter AC80-300V 100A Display LED Digital Voltmeter Ammeter Volt Amp Panel BlackUS$ 6 - 8MOQ: 1000 Pieces
-
D69-2041 AC80-300V/50A Amp Meter Voltmeter Dual Display LCD AC Digital Voltmeter Ammeter Volt Amp Panel MeterUS$ 6 - 7MOQ: 100 Pieces
Measure:
1. AC Voltage 80V-300V
2. AC Current 0-100A
3. Active power 0-30000W
4. Electric energy 0.000-99999kwh
5. Power factor 1.000-0.000

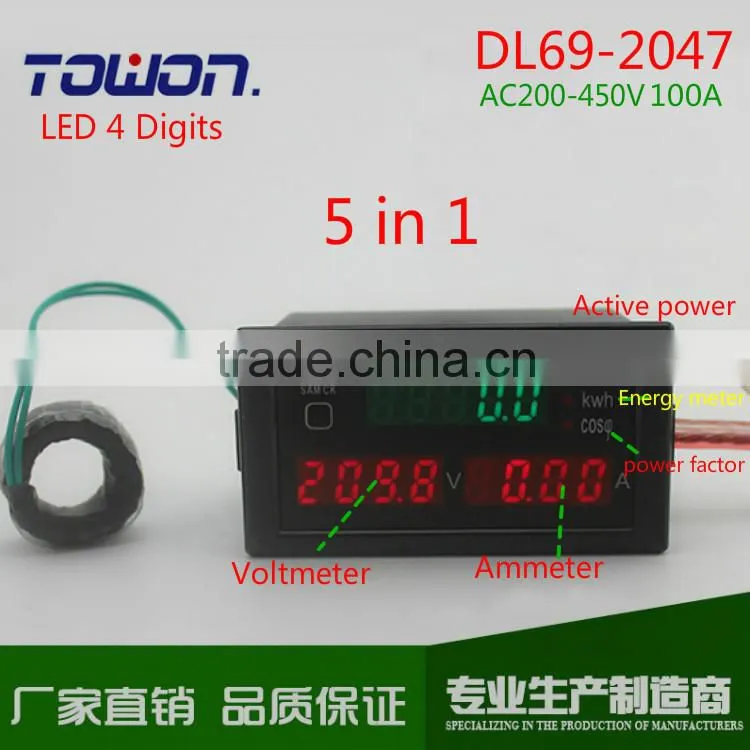

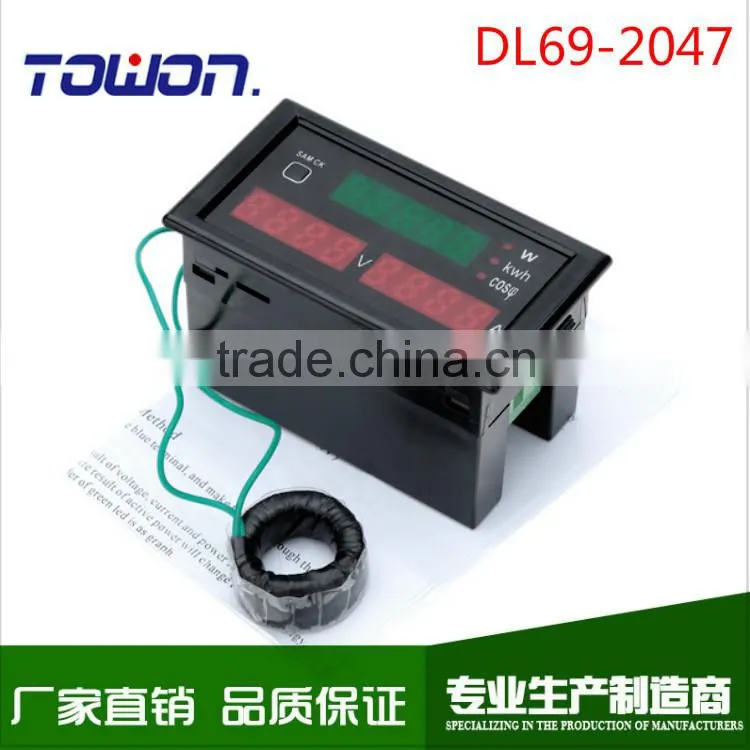

D69-2047multi-function digital meter use to measure AC voltage, AC current, active power, electric energy and power factor.
Technical Indicators
1.Accuracy: 1%±2 words
2.Display Mode: AC voltage and power factor use four red led of 0.32-inch
AC current use four red led of 0.32-inch
Active power, electric energy use five green led of 0.32-inch
3.Range: AC voltage :
AC 80.0-300.0V/ AC
AC 0.0-100.0A
( when measure signal lower than 10A, the accuracy is 0.01A, when measure signal higher than 10A
the accuracy is 0.1A, the accuracy auto-change)
Active power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )
Electric energy: 0.000-99999kwh
Power factor: 1.000-0.000
4.Speed: 2 times per second

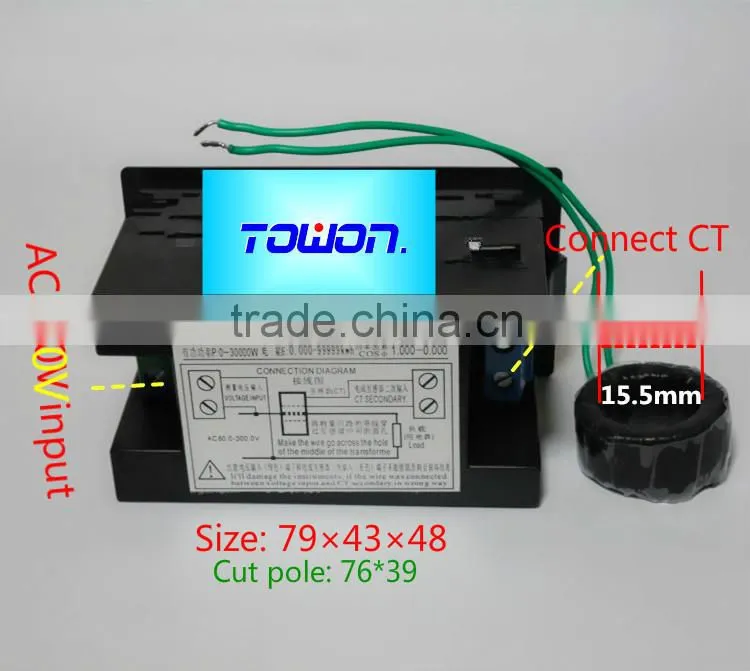

5.Size: 79×43×48
6.Installation Size: 76×39
Application Method

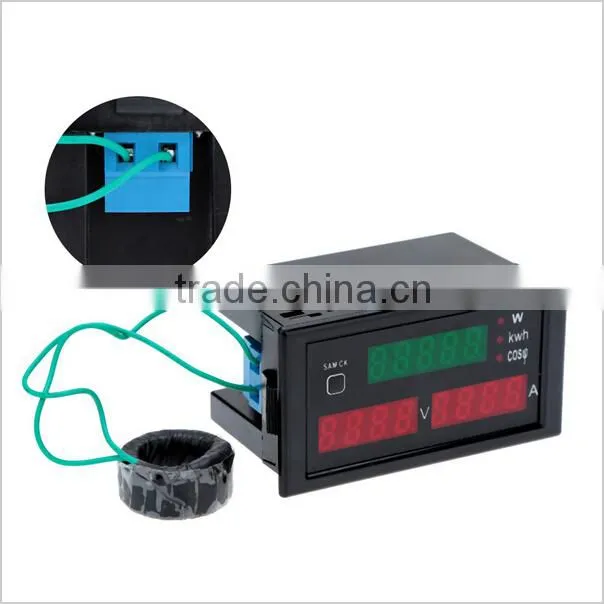

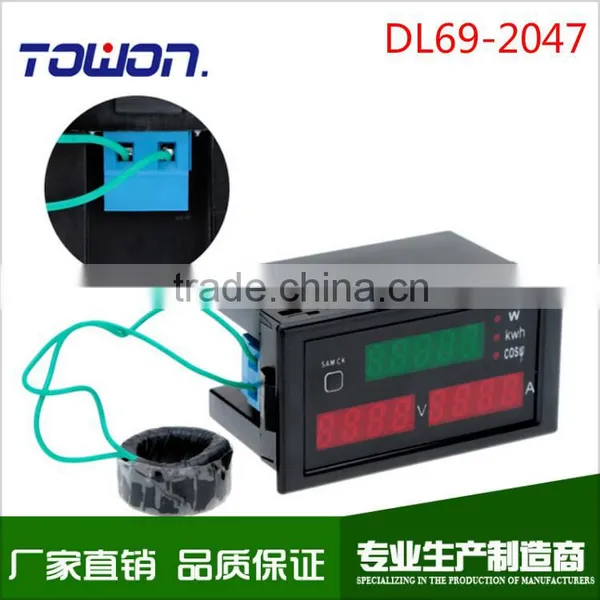

1. Connect the secondary transformer ( green wire ) to the blue terminal, and make the wire through the hole in the current transformer as graph.

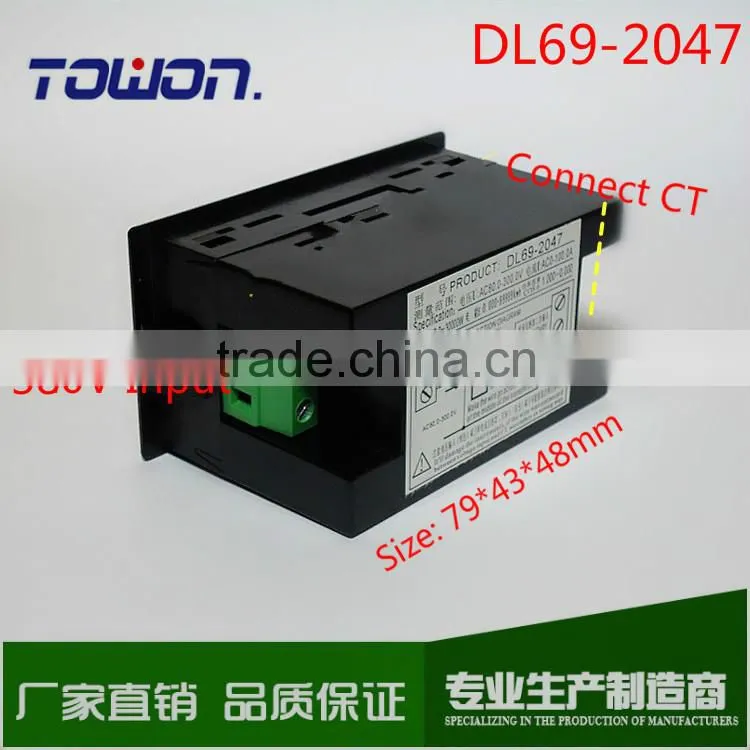

2. Connect the measuring voltage to the green terminal.
3. When power on, the meter will display the measure result of voltage, current and power factor. Then every time when you press the button of SAM CK, the measure result of active power will change to electric energy, power factor and active power in turn. The display order of green led is as graph.
4.When you want to clear electric energy, you should press the button of SAM CK and let the meter display the electric energy ( the electric energy of indicator light (kwh)power on ), then press down the button of SAM CK last for five seconds, then the electric energy will to be zero and start to a new cumulate period.
