3 Core Unshielded Broadcast
Security & Alarm Wire –EC-O12003C001
Specifications | |||
Type |
Security & Alarm wire |
Issue No. |
1 |
Date of Issue |
2012-6-13 |
Page |
1 |
Application |
|
It is use in alarm installation or it is also suitable for low voltage applications such as telephone extensions and circuits.
|

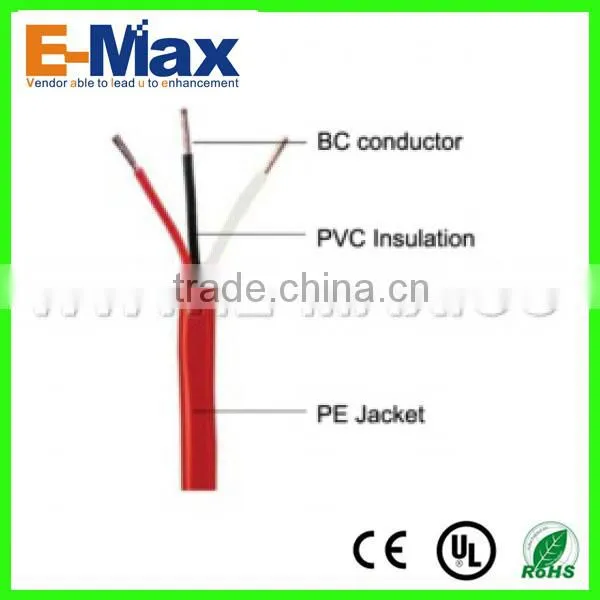

Component |
Material |
Diameter(mm) |
Inner Conductor |
BC |
1.63*3 |
Insulation |
PVC(red/black/white) |
2.14 |
Jacket |
PVC, red, or customized |
0.508(thickness) |
Nom.Capacitance Conductor to Conductor @1 KHz |
33pF/ft |
Nom.Cap.Cond.to Other Cond.& Shield @1 KHz |
33pF/ft |
Nom.Conductor DC Resistance @ 20 Deg.c |
1.7 Ohms/1000ft |
Max. Operating Voltage - UL |
330 V RMS(UL AWM style2464) |
Max.Recommended Current |
20 Amps per conductor @ 25℃ |
WHO WE ARE
Hangzhou E-Max Industry Co., Ltd is specialized in wires & cables and related products. With our sophisticated supply chainmanagement, industry insights and expertise, we provide our customers with total solution for the wires and cable industry, including:
- Qualified wires & cables, tools and accessories for wiring &cabling
- Raw materials, machineries and testing equipments & facilities for wires and cables manufacturing
- Solutions and consultation for cabling, cable factory set up,upgrade, expansion, etc.
We stick to our mission as the Vendor Able to Lead U to Enhancement, and this is what we call “VALUE”.

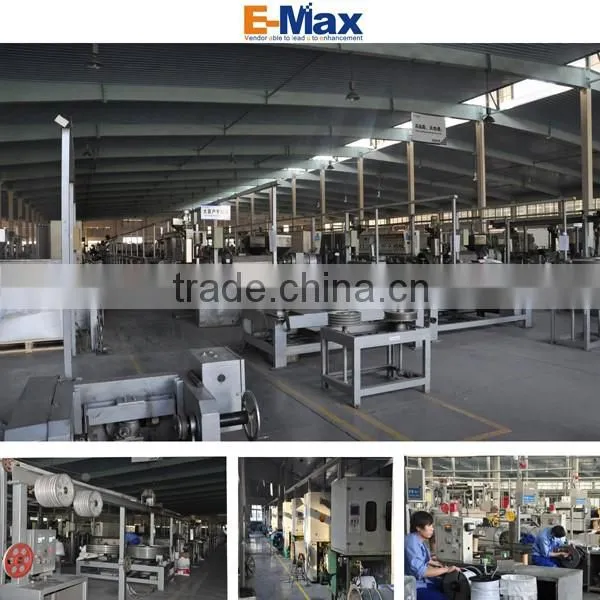

OUR WORKSHOP
FAQ
1.What warranties do your products carry?
-E-Max guarantees that all of our products, wires cables, connectors, tools and more are free from defects. We will take back any product that does not meet the agreed quality by both parties.
If you have any qouestions,pls contact me.
Below is our contact infomation at your service:
Contacts:Cleo
Hangzhou E-Max Industry Co.,Ltd
Add:No.388 Fengtan Road, Gongshu District, Hangzhou City,
Zhejiang Province, 310011,China
Website:
Tel: 0086-571-86806515 Fax: 0086-571-86807515
MB:018358575119
