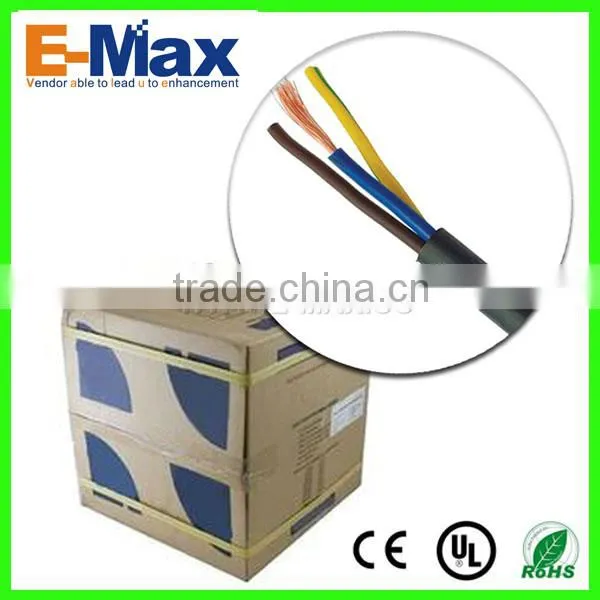

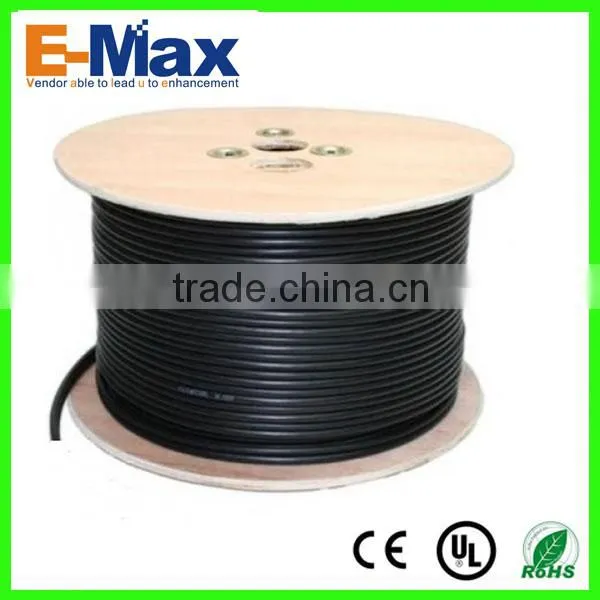

3 Core LV POWER Cable
- 10000000 Meter / Meters per Month
- Shanghai Shenzhen or China Main Port
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | E-Max or OEM | Model Number: | EC-O15003C004 |
Insulation Material: | Other, PVC, PVC(red/black/white) | Type: | Other, telecommunication plants and for power distribution | Application: | Other, telecommunication plants and for power distribution, telecommunication plants and power distribution of ac and dc power |
Conductor Material: | Other, BC | Jacket: | PVC |
Product Description
3 Core LV Cable –EC-O15003C004
Specifications | |||
Type | Power Wire | Issue No. | 4 |
Date of Issue | 2012-6-13 | Page | 1 |
Application |
Power Wire is ideally suited for use in telecommunication plants and for power distribution of ac and dc power in conduit or cable trays. |

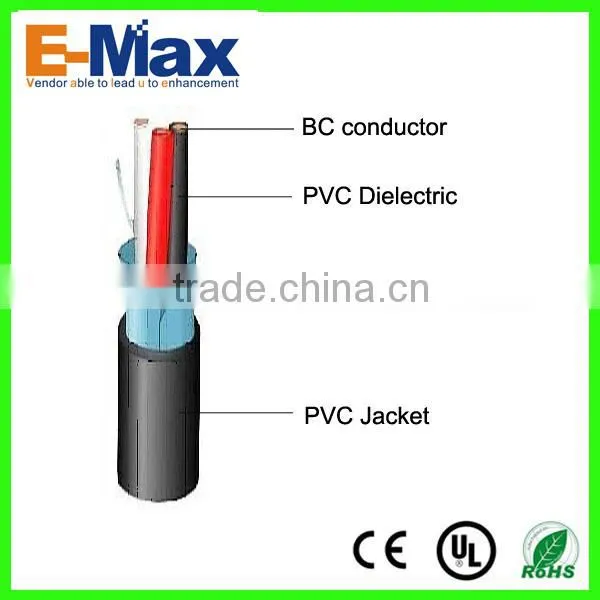

Construction
Component | Material | Diameter(mm) |
Inner Conductor | BC | 7*0.38*3 |
Dielectric | PVC(red/black/white) | 1.65 |
Shield | AL/P foil and 7*0.20TC braiding | / |
Jacket | PVC grey or customized | 4.7mm |
Electrical Properties
Flame retardancy | IEC 60332-1 | |
Flame propagation | IEC 60332-3 cat. A | |
Min. bending radius | 8 x cable-∅ | |
Outer Sheath | Amount of halogen acid gas | max. 17 %(IEC 60754-1) |
Limiting Oxygen Index (LOI) | min. 30 %(IEC 60332-3 ann. B) | |
Temperatur Index (TI) | min. 300 °C(ASTM-D-2863) | |
Temperature range: | -30 °C up to +70 °C (during operation) | |
-5°C up to +50 °C(during installation) | ||
≤ 300 mm²: max. +160 °C > 300 mm²: max. +140 °C (under short circuit) |
WHO WE ARE
Hangzhou E-Max Industry Co., Ltd is specialized in wires & cables and related products. With our sophisticated supply chainmanagement, industry insights and expertise, we provide our customers with total solution for the wires and cable industry, including:
- Qualified wires & cables, tools and accessories for wiring &cabling
- Raw materials, machineries and testing equipments & facilities for wires and cables manufacturing
- Solutions and consultation for cabling, cable factory set up,upgrade, expansion, etc.
We stick to our mission as the Vendor Able to Lead U to Enhancement, and this is what we call “VALUE”.
OUR WORKSHOP
FAQ
1.What warranties do your products carry?
-E-Max guarantees that all of our products, wires cables, connectors, tools and more are free from defects. We will take back any product that does not meet the agreed quality by both parties.
If you have any qouestions,pls contact me.
Below is our contact infomation at your service:
Contacts:Cleo
Hangzhou E-Max Industry Co.,Ltd
Add:No.388 Fengtan Road, Gongshu District, Hangzhou City,
Zhejiang Province, 310011,China
Website:
Tel: 0086-571-86806515 Fax: 0086-571-86807515
MB:018358575119
