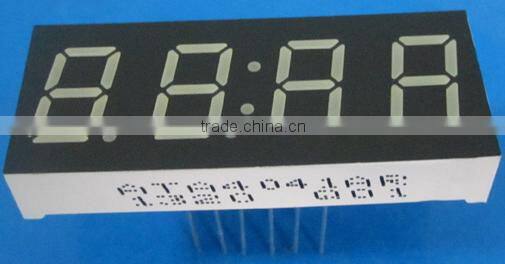

High-quality Seven Segment Led Display Four Digitals

High-quality Seven Segment Led Display Four Digitals photo-1
High-quality Seven Segment Led Display Four Digitals photo-2
High-quality Seven Segment Led Display Four Digitals photo-3
High-quality Seven Segment Led Display Four Digitals photo-4
High-quality Seven Segment Led Display Four Digitals photo-5
High-quality Seven Segment Led Display Four Digitals photo-6
US$ 0.1 - 0.3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ATA
Model Number:
ATA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ATA
Model Number ATA
Usage Indoor
Tube Chip Color Full Color
Display Function Other, household appliance
Pixels 20mm

high-quality seven segment led display four digitals

High-quality seven segment led display four digitals

Product Description

 Specification

Type  YELLOW

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

40

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current(Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V



Type GREEN

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

46

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V



Type RED

Parameter

Symbol

Maximum Rating

Unit

Power Dissipation

Pd

38

mW

Peak Forward Current

Ifp

60

mA

Continuous Forward Current( Forward )Current

Ifm

30

mA

Reverse Voltage

VR

5

V

Operating Temperature Range

Topr

-20→ +65

°C

Storage Temperature Range

Tstg

 -20→ +70

°C

Static Voltage

Var

500

V

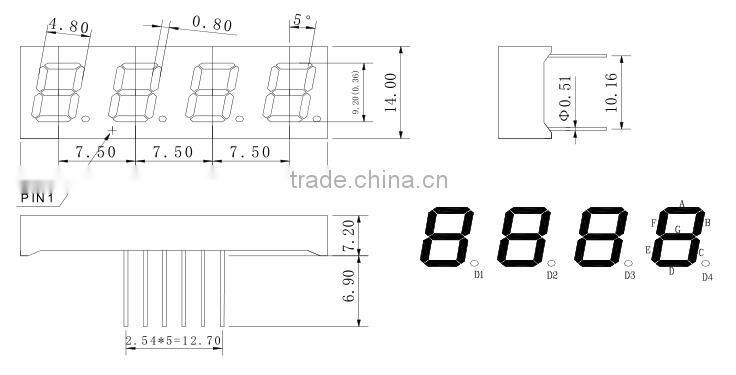

Dimension

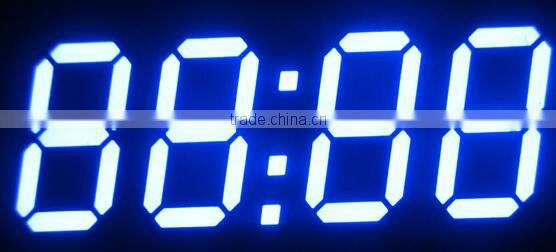

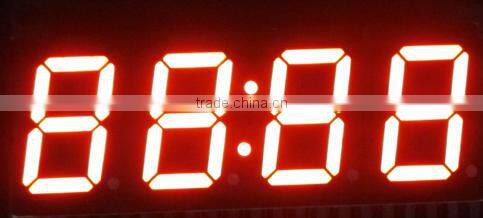

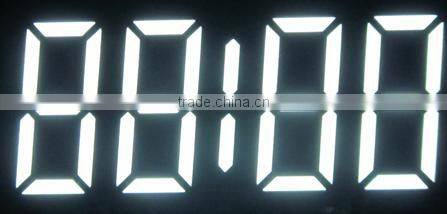

Products show

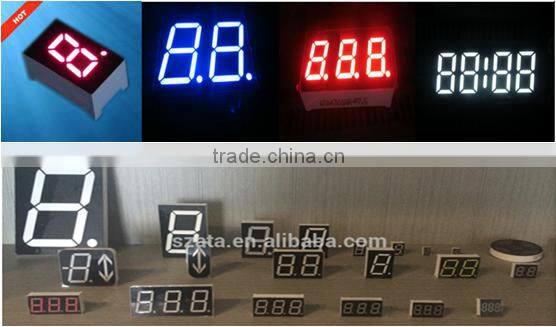

Similiar products

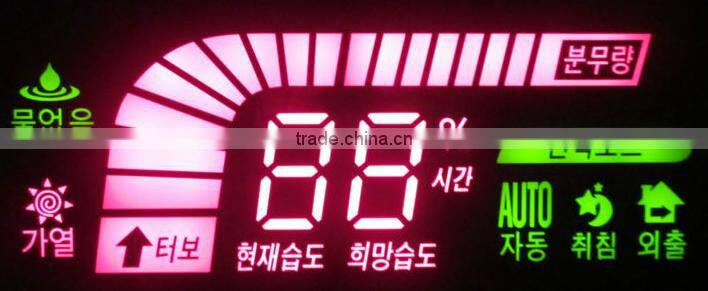

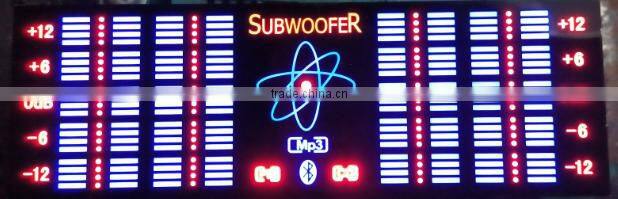

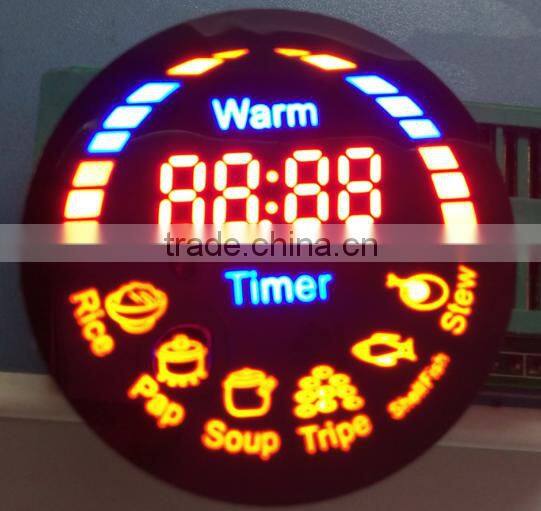

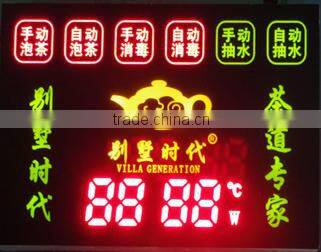

customized products





Company Information

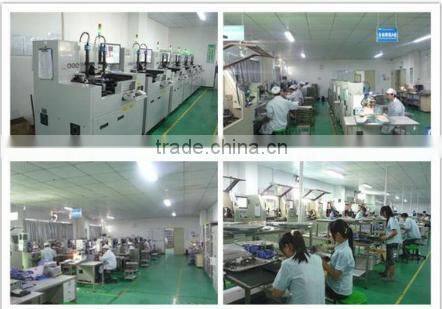

Introduction of Our Company



SHENZHEN AITEAI TECHNOLOGY CO.,LTD.



     Our company is specialized in LED diode, nixie tubes, dot matrix modules, clock plate, back plate, and all kinds of indoor and outdoor LED display screen with single or dual color etc.Our products sells well for uniform brightness and enjoys a great reputation in China . Our products decease less than 1% brightness within 1 year. With many years experience in production and management, we can offer customers with reliable quality, favorable price of LED display.



Our belief is "to pursuit excellence on the basis of good faith". Our purpose is to  provide our customers the best quality and service. Besides, we have rich experience in cooperating with some big companies such as TCL, Desay etc.



1. We can supply you all kinds of 7 segment LED display:



---Digit size: from 0.25" to 16"



---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 14 segment both are available



3. Available Emitting color: red, green, blue, yellow, amber, white, bi-color



4. Available surface color: black and grey



5. Lens color: milky white or same with emitting color
