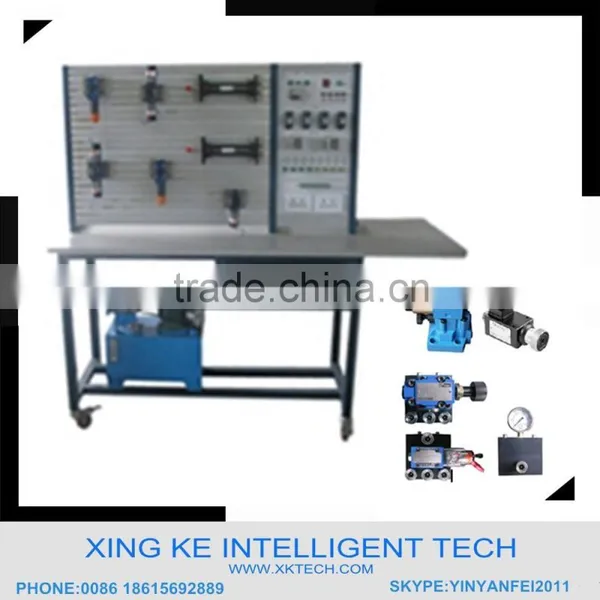

1.Products overview
1.1 The bench adopts control plate of relay control, factory standard configuration does not include the PLC, but user can self-prepared the PLC and do the corresponding experiment. This equipment configured with common hydraulic components
for Practical Teaching in the mechanical, electrical and mechanical integration.
1.2 Products are aluminum desktop, square tube frame, is arranged at the bottom of the slide with casters. The platform is on the right side of the control module, including the leakage protection function.
2. The main technical indexes of the product
2.1 Size: 1600mmx600mmx1530mm 100kg
2.2 The power supply: the three-phase AC380V, power < 2000 VA.
2.3 Motor: Y80 power: 1.5KW s peed: 1400r/Min voltage: 380V
2.4 Pump: CB-FC10 rated displacement: 2ml/rev rated pressure: 0.8MPa
2.5 Performance and characteristics
(1)The bench adopts design of the vertical table-mounted, electrical controls for right mounted arrangement.
(2)The control panel for the hydraulic control panel with PLC connection interface and relays are two control modes,
the electrical system for the independent control mode without disturbing each other, and safe 24V voltage.
(3)The hydraulic bench set system oil temperature rise detection sensors and system pressure unloading control device;
(4)Hydraulic bench components adopt industrial physical body, you can achieve the purpose of the actual field
operations.
(5)When the hydraulic system pressure in working not greater than 5Mpa, hydraulic components without leakage.
(6)The hydraulic station equipped with flow control valve, can according to the requirements to adjust the required
flow quantity for diversion, and is equipped with a flow meter can regulate and control when needed.
3. Experimental contents
3.1 Differential circuit
3.2 Two bits four-way reversing loop
3.3 The synchronization loop controlled by throttle valve
3.4 Inlet Throttling Speed Control Circuit
3.5 bypass throttle speed control system
3.6 back to the oil throttle governor loop
3.7 Fast slow switching circuit
3.8 liquid control one-way valve locking loop
