Specifications
1.pneumatic trainer2.pneumatic training
3.PLC trainer
4.durable,economical and practical

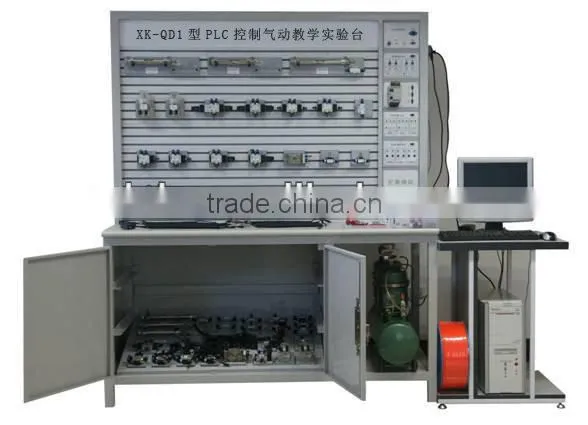

Pneumatic Trainer,PLC Control Pneumatic Teaching Training Equipment
1. product structure:
desktop structure ,working table used the "T" type aluminum materials, provides great convenience for the
installation and location of pneumatic components.
2. main parameters:
Ø Size: 1800 mm x 630 mm x 1500 mm;
Ø The power supply: single phase AC220V, power < 500W
3.main components:
training platform, aluminum working mesa, the power module, PLC module, relay modules, pneumatic
components (including air filtration, reduced pressure, oil mist is a joint, pressure reducing valve, the
manual directional control valves, electromagnetic reversing valves, air control directional valves, travel
valves, one-way valves, throttle valve, one-way throttle valve, quick exhaust valve, "OR gate" type shuttle valve , the single-acting cylinder, double-
acting cylinder, rotating cylinder, etc), gas source, and tool accessories, computer (optional) components.
4.main functions:
PLC commonly used programming instructions learning and training, pneumatic basic loop training. Have
a safety protection function.
5.annex:
experimental jump line, commonly used tools, software disc, the product specification
6.Training project:
1. Single-acting cylinder reversing loop
2. Double-acting cylinder reversing loop
3. Single-acting cylinder speed control loop
4. Double-acting cylinder on-way speed regulation loop
5. Double-acting cylinder both way speed regulation loop
6. Speed changing-over loop
7. Buffering loop
8. Twice pressure control loop
9. High-and-low pressure exchanging loop
10. Counting loop
11. Delay loop
12. Overload protection loop
13. Interlocking loop
14. Single cylinder single reciprocating control loop
15. Single cylinder continuous reciprocating action loop
16. Linear-motion cylinder and angle-motion sequential action loop
17. Multiple cylinder sequential action loop
18. Double-cylinder synchronization action loop
19. Four-cylinder linkage loop
20. Unloading loop
21. Joint gate type shuttle valve application loop
22. Rapid escape valve application loop
