Discrete Component Trainer/Electronic Training Kit/XK-DZDB1 for Teaching Aid
(Electronic trainer/Electronic Training Kit/Teaching Aid Equipment)

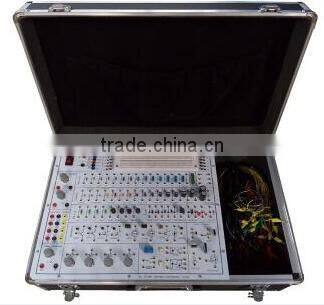

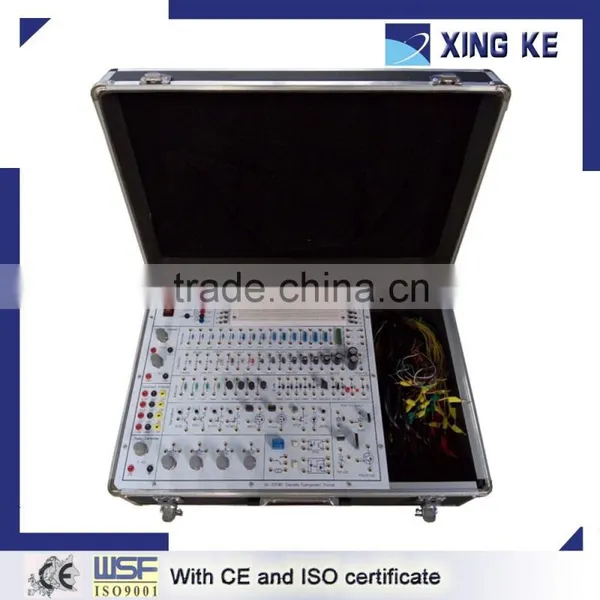

XK-DZDB1 Discrete Component Trainer panel consists of bread board panel, common power supply and signal source, basic components(resistance, capacitance and inductance), basic semi-conductor components, such as diode, transistor, MOSFET, unijunction transistor, SCR, photoelectric coupler and relay. can familiarize the students with common components and understand their characteristics, the students need to build the circuits by themselves to realize the experiment, thus not only can exercise their operational ability, but also can learn the knowledge
1) Power supply: AC220V±10%,50HZ,≤10W
2) With power supply indication, main power supply, grounding protection and over current protection.
3)Outer size: 480mm×330mm×150mm(L*W*H)
4)Weight: 5.5kg
5)Working temperature: 0~+40℃
6)Storage temperature: -10℃~+80℃
7)Experiment power supply
DC±5V,1A
DC±15V,1A
AC±6V,1A
AC±24V,1A
DC 0~±30V, adjustable voltage source
8)Pulse generator: 100~1000Hz,amplitude 5V.
1 Experiment box panel includes power supply, pulse generator, bread board and discrete components area.
Power supply includes DC and AC power supply, DC power supply also includes adjustable voltage source and constant voltage source
fundamental components includes Resistor with different wattage, Capacitor, Inductor and Potentiometer. Opto-Coupler, Relay
Diode includes Diode, Ge-Diode, FSD, Zener Diode,Varactor Diode,LED and LDR VDR
Transistor includes BJT JFET IGFET UJT
Power components includes DIAC,TRIAC,SCR,IGBT
2 Experiment box accessories
1)Power supply line 1piece
2)K2 jumping wire 60 pieces
3)Manuals(with disc) 1piece
Training project
Study the working of
1.Resistors,Capacitors,Inductors,Potentiometer.
2.Study the working of Relay and Opto-Coupler.
3.Study the frequency response working of Opto-Coupler.
4.Study of Ohm’s law.
5.Full wave and half wave rectifying experiment
6.Filtering experiment
7.Voltage stabilization and voltage-multiplying experiment
8.Simple logical gate circuit experiment
9.Study of kirchoff’s voltage and current law
10.Study of voltage and current divider rule.
11.Study of different types of Diode characteristics (Diode, Ge-Diode, FSD, Zener Diode, LED and Varactor Diode).
12.Study of different types of transistors characteristics(BJT,JFET, MOSFET, UJT).
13.Study of different types of power component( DIAC,TRIAC, SCR and IGBT)
14.Study of effect of frequency on R, L, C.
15.Study of RC integrator and differentiator
16.Study of RC filters
17.Study of Transient response of series RC and RL
18.Study of Transient response of series RLC series and parallel resonance RLC
