Simulator Electronic Faults Bench/XK-EST1/ Training Kit for Vocational School

Simulator Electronic Faults Bench/XK-EST1/ Training Kit for Vocational School thumbnail-1
Simulator Electronic Faults Bench/XK-EST1/ Training Kit for Vocational School photo-1
US$ 500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XINGKE
Model Number:
XK-EST1
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XINGKE
Model Number XK-EST1

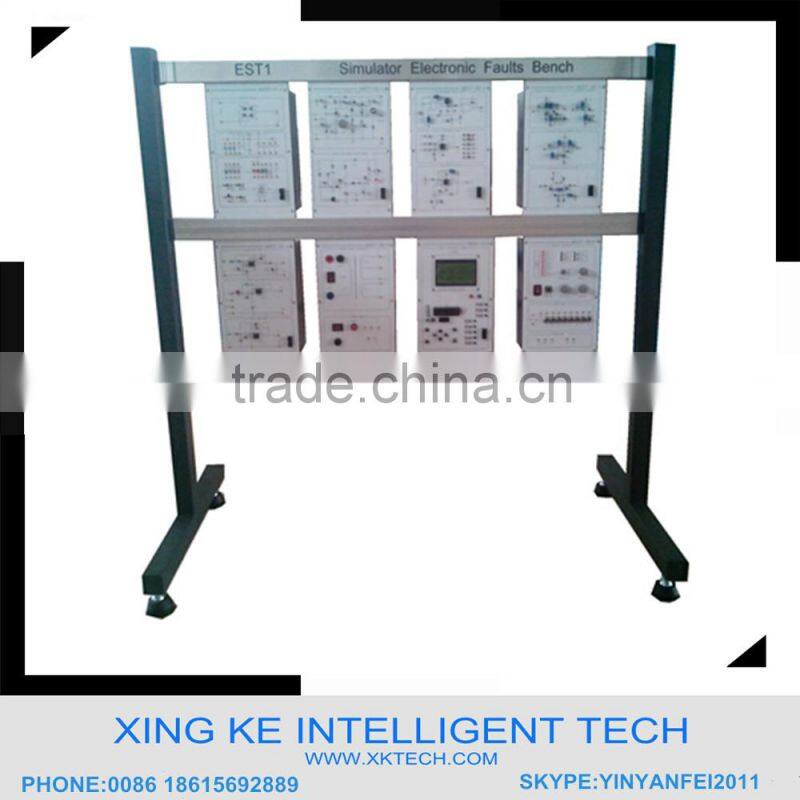

                                                        XK-EST1  Simulator Electronic Faults Bench



Simulator Electronic Faults Bench/XK-EST1/ Training kit for Vocational School





Product Overviews



This training platform consists of training platform, power supply hanging box, transistor circuit hanging box, signal source hanging box, power supply hanging box, load hanging box, operational circuit hanging box, typical analog electronic circuit hanging box and fault setting hanging box. Can realize the experiment and training projects related with analog electronic transistors, operational amplifier. It is applied for all kinds of subjects as electrical machinery, motor drive and control, electrical control technology, electrical control device, factory electrical control, electrical and electronics of the electrical, automation, mechatronics majors, also can be used for junior, intermediate and higher level electrical and related technician’s training.



Technical index





1.Input voltage: single phase AC220V



2.Training platform main power: ≤300W



3.Size: 1000 x 1000 x 500mm





Experiment list



Experiment 1   Half-wave rectification experiment

Experiment 2   Full-wave rectification experiment

Experiment 3   The whole bridge rectifier experiment

Experiment 4   Common-emitter amplification circuit

Experiment 5   Common base amplifying circuit

Experiment 6   Common collector amplifying circuit

Experiment 7   Differential amplification circuit

Experiment 8   Voltage series negative feedback circuit

Experiment 9   Voltage parallel negative feedback circuit



 Simulator Electronic Faults Bench/XK-EST1/ Training kit for Vocational SchoolSimulator Electronic Faults Bench/XK-EST1/ Training kit for Vocational SchoolSimulator Electronic Faults Bench/XK-EST1/ Training kit for Vocational School
