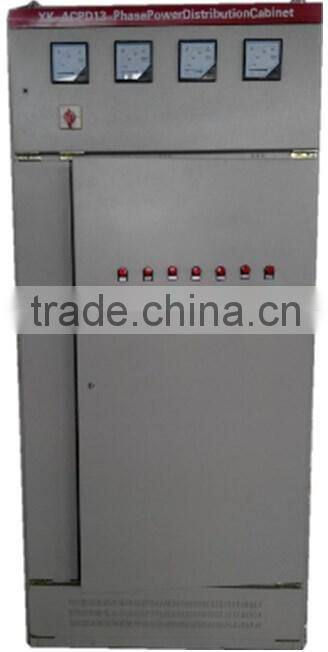

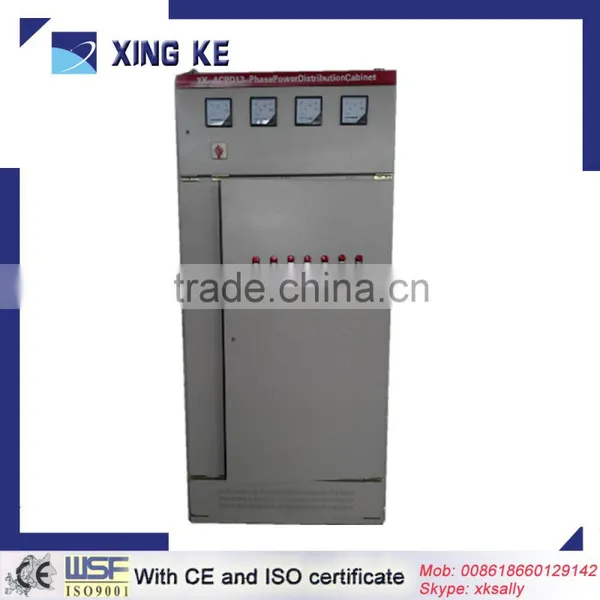

Low Voltage Power Distribution Cabinet/XK-ACPD1/Didactic Equipment for School Lab
(Power distribution cabinet/didactic equipment/school lab equipment)
XK-ACPD1 low voltage power distribution cabinet is designed according to the power grid construction requirement and power grid running experience. It is applied to 0.4KV voltage class, it is a comprehensive cabinet with the functions of power energy distribution, control, protection and power energy measuring. It adopts GGD standard cabinet with rational structure which is convenient to assemble, adjust , maintain and repair and more confirm to the real low voltage power distribution cabinet requirement.
As the training device, it has certain difference with the real engineering low voltage power distribution cabinet. Its components type is many, contains most of the common electrical components of the real low voltage power distribution cabinet. This device is equipped with isolation switch, plastic shell breaker, miniature circuit breaker, current mutual inductor, power energy meter, AC contactor, thermal overload relay, can make the students learn more electrical components knowledge.
2.1 Product size: 2200mm*1000mm*600mm
2.2 Rated voltage: 400V,50HZ
2.3 Environment temperature: -50C~+400C
Main composition
1) Training platform: adopts GGD standard cabinet
2)Isolation switch: HD13BX-630

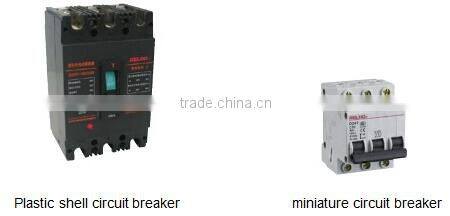

3)Circuit breaker
Plastic shell circuit breaker adopts DZ20Y-225,miniature circuit breaker is adopted DZ47-63
4)AC contactor: CJT1-60
5)Accessories: isolation switch spanner, principle wiring diagram, manual
6)Thermal relay: JR36-63,technical parameter:
Rated current:63A
Rated voltage: AC380V
Fixed current range:40-63A
7)Current mutual inductor
Current mutual inductor adopts BH-0.66 and its technical parameter is as follows:
Rated voltage:0.66KV
Rated current primary/secondary;400A/5A

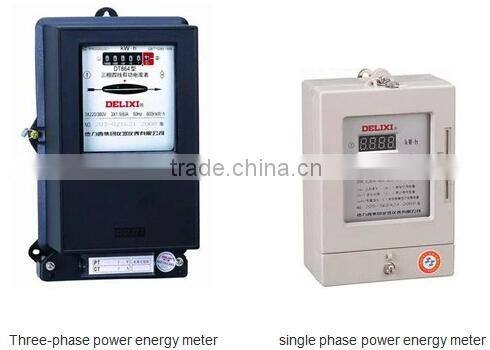

8)Power energy meter
Three-phase power energy meter adopts DT862, technical parameter:
Reference voltage: 3 x 220/380V
Reference current: 3 x 5A
Single phase power energy meter adopts DDS666, technical parameter:
Reference voltage:220V
Reference current:20A
