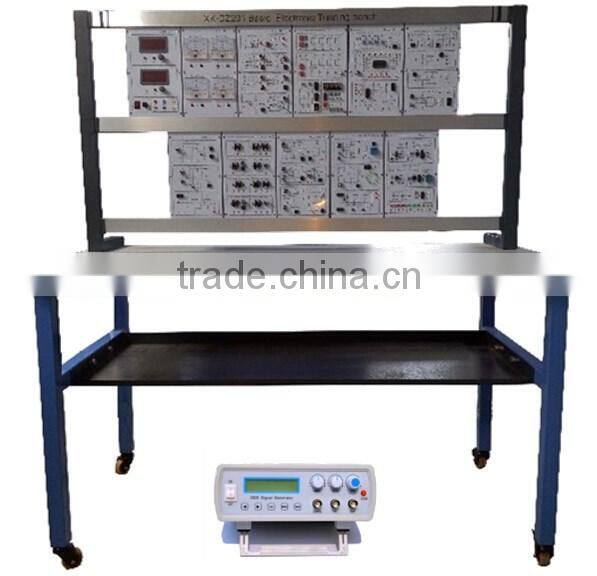

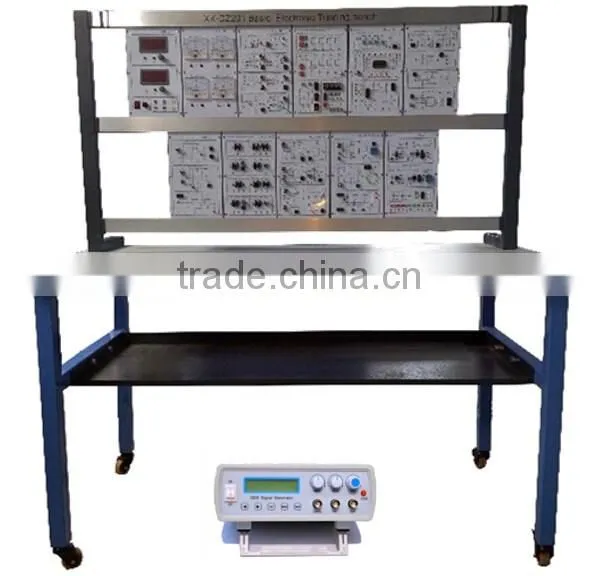

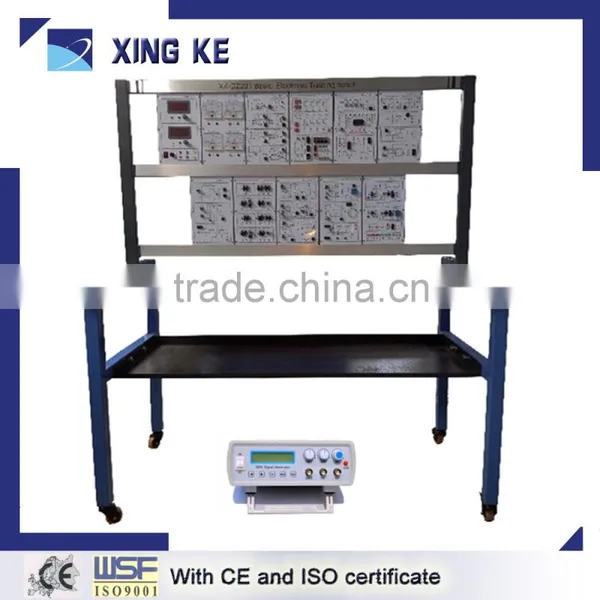

Basic electrical/electronic circuit training equipment/XK-DZ201/school lab training
(electrical training equipment/electronic training equipment/school lab training equipment)

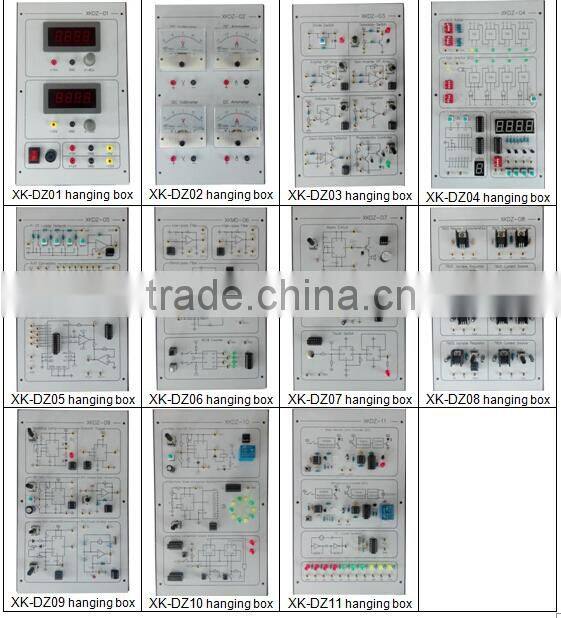

XK-DZ201 basic electrical/electronic circuit training platform adopts independent experiment hanging box, convenient to use. This training equipment includes power supply hanging box, voltmeter and ammeter hanging box, basic electronic circuit hanging box, waveform generator hanging box, digital circuit hanging box, signal processing circuit hanging box, DC stabilized power supply hanging box, diode and transistor application hanging box and a signal generator. The students can familiarize the common function circuit and understand their characters.
1)Power supply: single phase AC220V±10%,50HZ,≤10W
2)With power supply indication, main power indication, grounding protection, over circuit protection
3)Outer size: 1230mm×640mm×1338mm
4)Working temperature: 0~+400C
5)Experiment power supply
DC±5V,1A
DC±12V,1A
DC 0~±15V, adjustable voltage source
6)DDS function signal generator
Can output sine wave, square wave(duty cycle can be adjusted by 1%-99%), triangle wave and sawtooth wave and other function waveform
Maximum effective output over 9Vpp, frequency 0.01Hz-2MHz,resolution 10mHz
With TTL synchronous output and integrates counter, 60MHz frequency meter functions
With the characters of easy to use, high signal stability, output signal has DC bias and its amplitude can be adjusted.
Support linear scanning, log scanning, can set the scanning frequency range and scanning time at will.
1)Diode and transistor switch character experiment
2)Photoelectric control experiment
3)Basic operation circuit experiment
4)Comparator experiment
5)Schmitt trigger experiment
6)Monostable trigger experiment
7)Multivibrator experiment
8)Adder and subtractor experiment
9)Touch switch experiment
10)Counter experiment
11)Digital nixie tube display experiment
12)A/D and D/A conversion experiment
13)Active power circuit experiment
14)Three-terminal regulator voltage stabilization performance research experiment
15)Electronic responder experiment
16)Infrared remote control experiment
17)Electronic wheel amusement lamps experiment
