Fine table cnc plasma cutter for metal sheets

Specifications

With knife or vertical bar table
Good performance on thin plate
High precision linear guide rail
Integrated table structure

fine table cnc plasma cutting machine, table cnc plasma cutter, cnc plasma cutting table, cutting table, plasma cutter, desktop cnc plasma cutter, cnc cut machine, cnc cut off machine, metal cutting machine, steel cutter, aluminum cutting machine

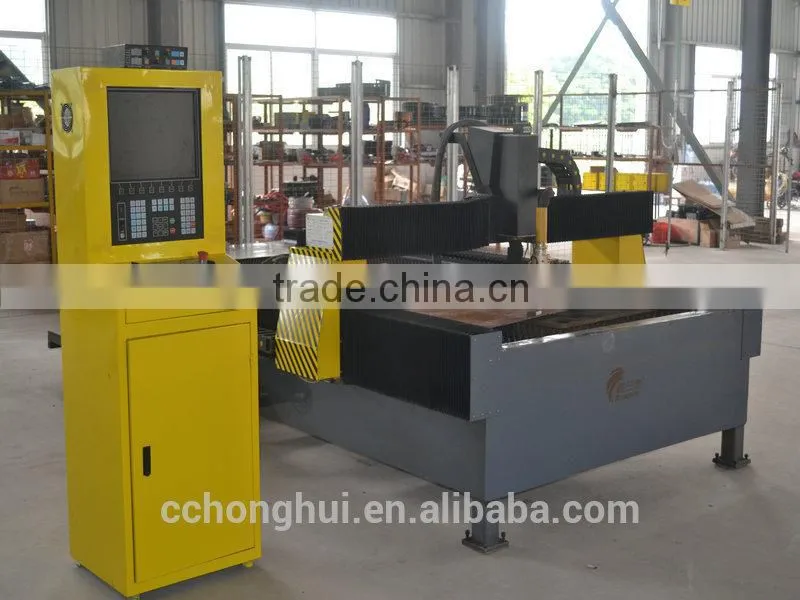

Fine table cnc plasma cutting machine adopts integrated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.

Fine table cnc plasma cutting machine have excellent performance when cutting thin sheets, both horizontal and vertical is equipped with dust cover to make sure the cutting accuracy will not affected by dusts.





The main structure and features of fine table cnc plasma cutting machine



  1. The machine is equipped with gear rack, servo motor and planetary reducer on both                 horizontal and vertical direction.

   2. Both horizontal and vertical drive adopts PMI linear guide rail ,  to ensure the moving accuracy and cutting quality.

   3. Automatic memory function when power off or emergency stop.

   4. Auto alarm function when faced with a mistake or arc breaking.

   5. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.

   6. 17" LCD touch screen, convenient design, easy to operate.



 The configuration and parameters of table cnc plasma cutting machine

Configuration
Structure	Integrated  frame structure
Drive motor	Panasonic servo motor
Reducer	Shimpo
Crossbeam guide rail	PMI linear guide rail
Guide rail	24kg level H guide rail
CNC system	SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional)
Nesting software	FASTCAM
Automatic height controller	HYD arc voltage THC
Plasma power supply	Thermadyne, Hypertherm and Kjellberg
Specification
Voltage	220V
Working temperature	- 10°C -45°C
Humidity	<95%, no condensation
Cutting thickness	0.5 to 50mm
Cutting speed	50 to 10000 mm/min
Travel speed	1 to 12000 mm/min
Cutting width	0.5m less than track width
Cutting length	1m less than track length
Torch lifting height	200mm
Cutting material	mild steel, stainless steel, aluminum etc
Operation language	Multilanguage







Main parts of fine table cnc plasma cutting machine
