Specifications
With knife or vertical bar tableGood performance on thin plate

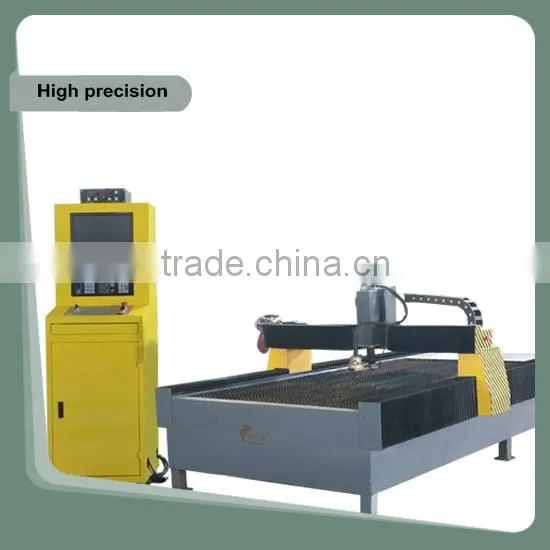

High precision linear guide rail
Integrated table structure
fine table cnc plasma cutting machine, table cnc plasma cutter, cnc plasma cutting table, cutting table, plasma cutter, desktop cnc plasma cutter, cnc cut machine, cnc cut off machine, metal cutting machine, steel cutter, aluminum cutting machine

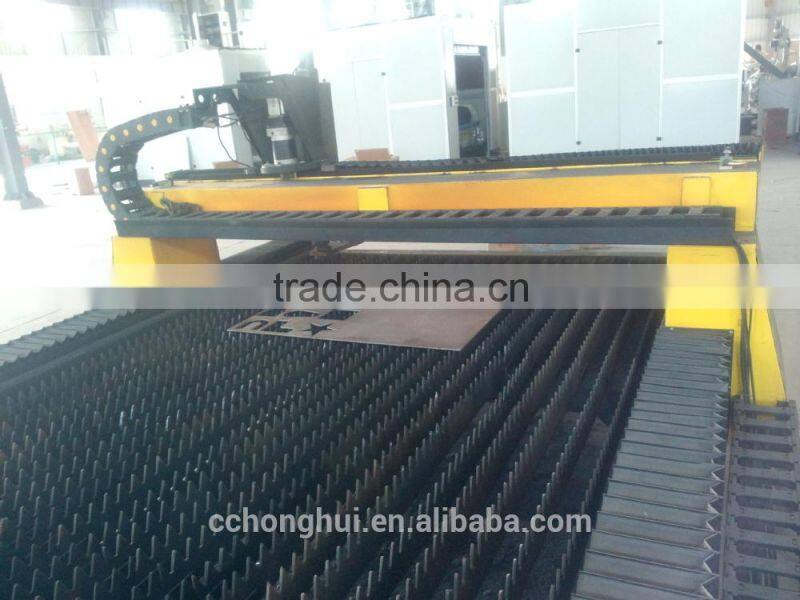

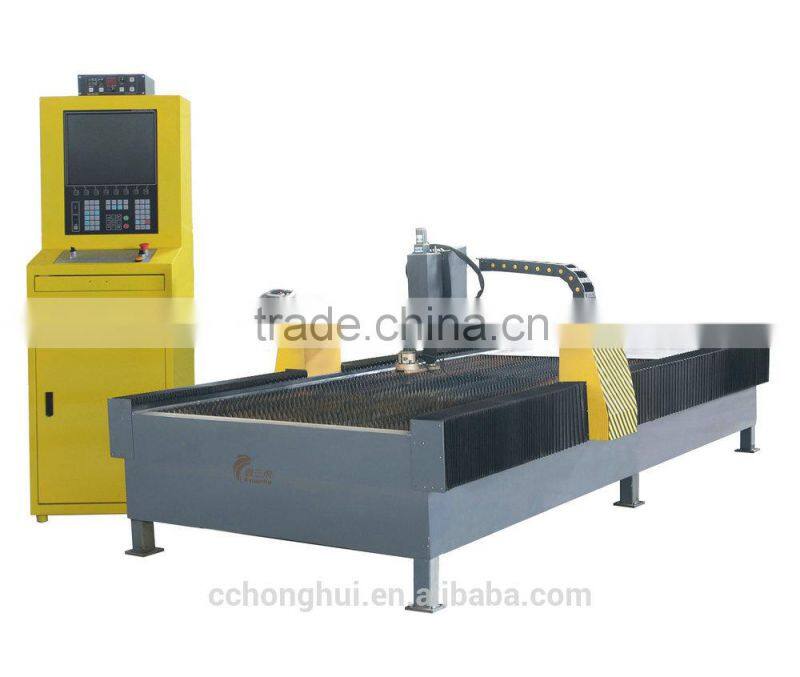

Fine table cnc plasma cutting machine adopts integrated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.
Fine table cnc plasma cutting machine have excellent performance when cutting thin sheets, both horizontal and vertical is equipped with dust cover to make sure the cutting accuracy will not affected by dusts.
The main structure and features of fine table cnc plasma cutting machine

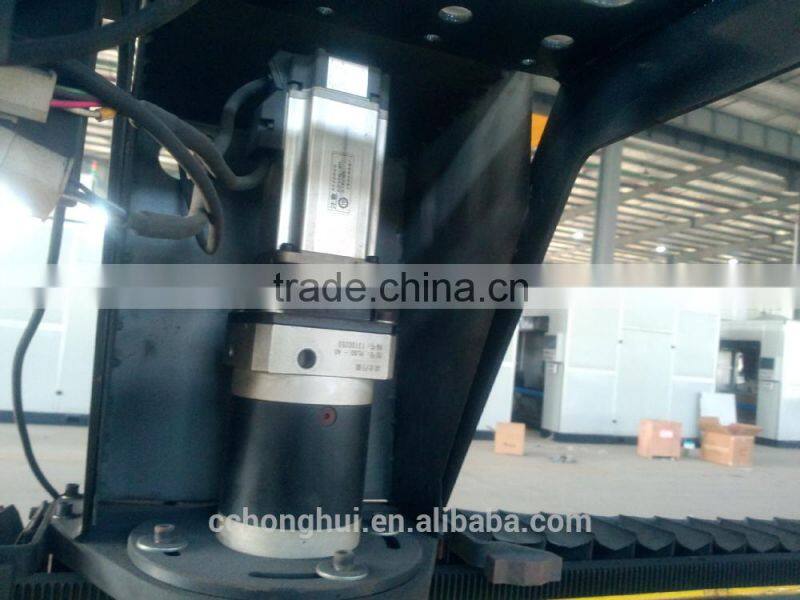

1. The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction.
2. Both horizontal and vertical drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
3. Automatic memory function when power off or emergency stop.
4. Auto alarm function when faced with a mistake or arc breaking.
5. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.

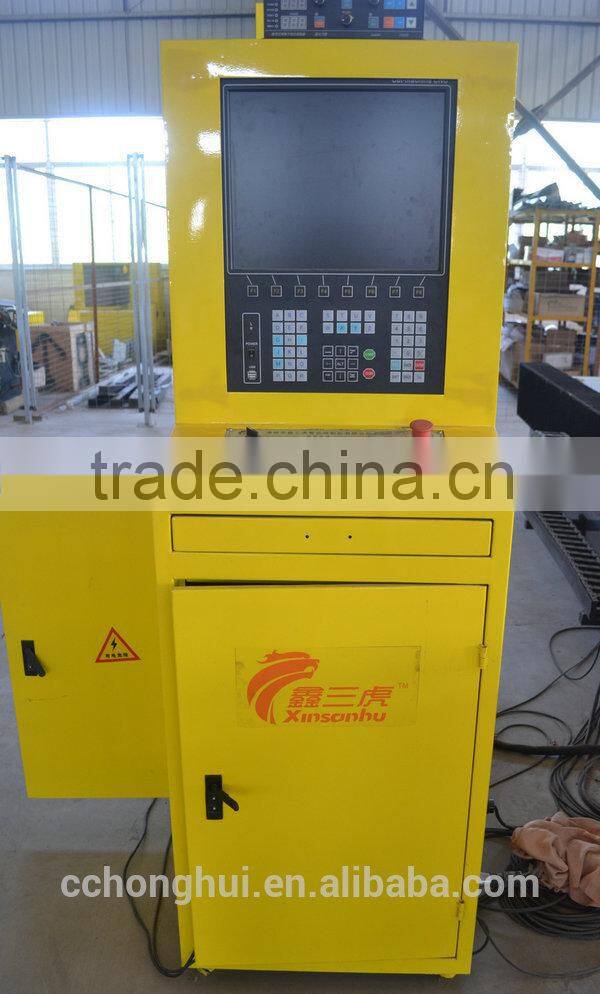

6. 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of table cnc plasma cutting machine
| Configuration | |||||
| Structure | Integrated frame structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 24kg level H guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 0.5 to 50mm | ||||
| Cutting speed | 50 to 10000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Operation language | Multilanguage | ||||

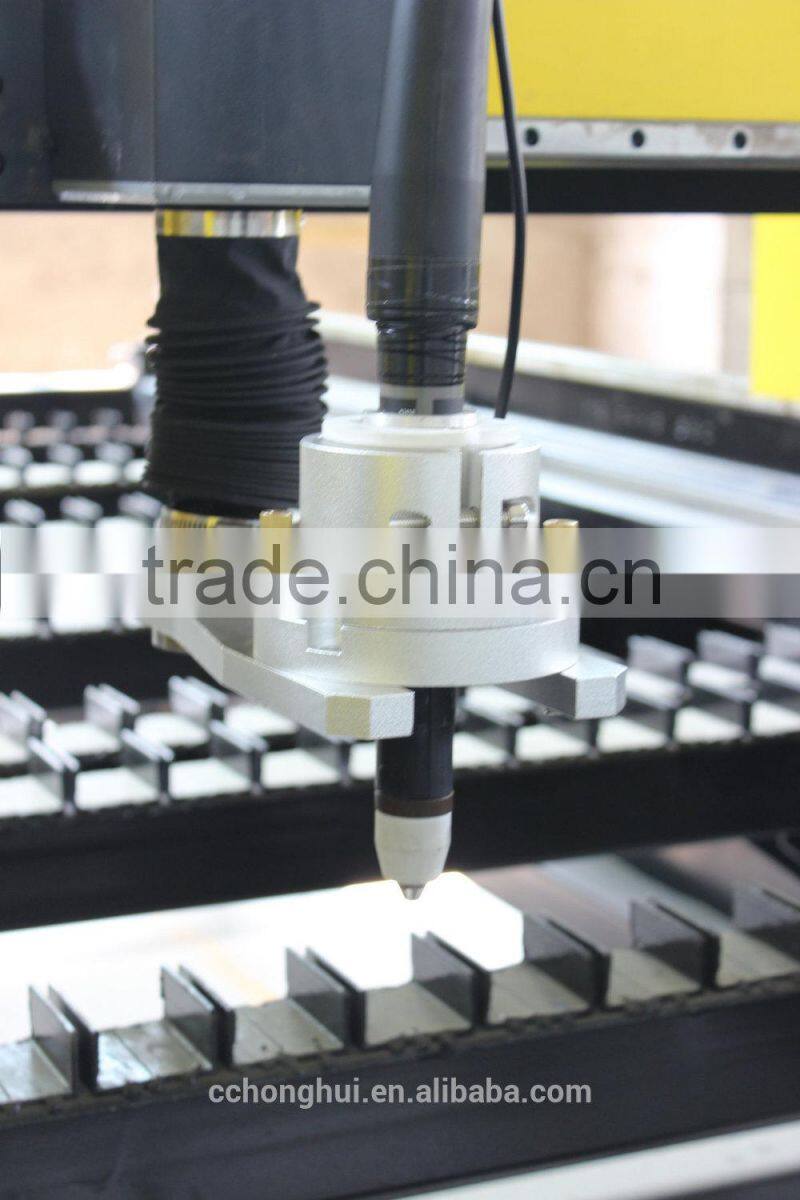

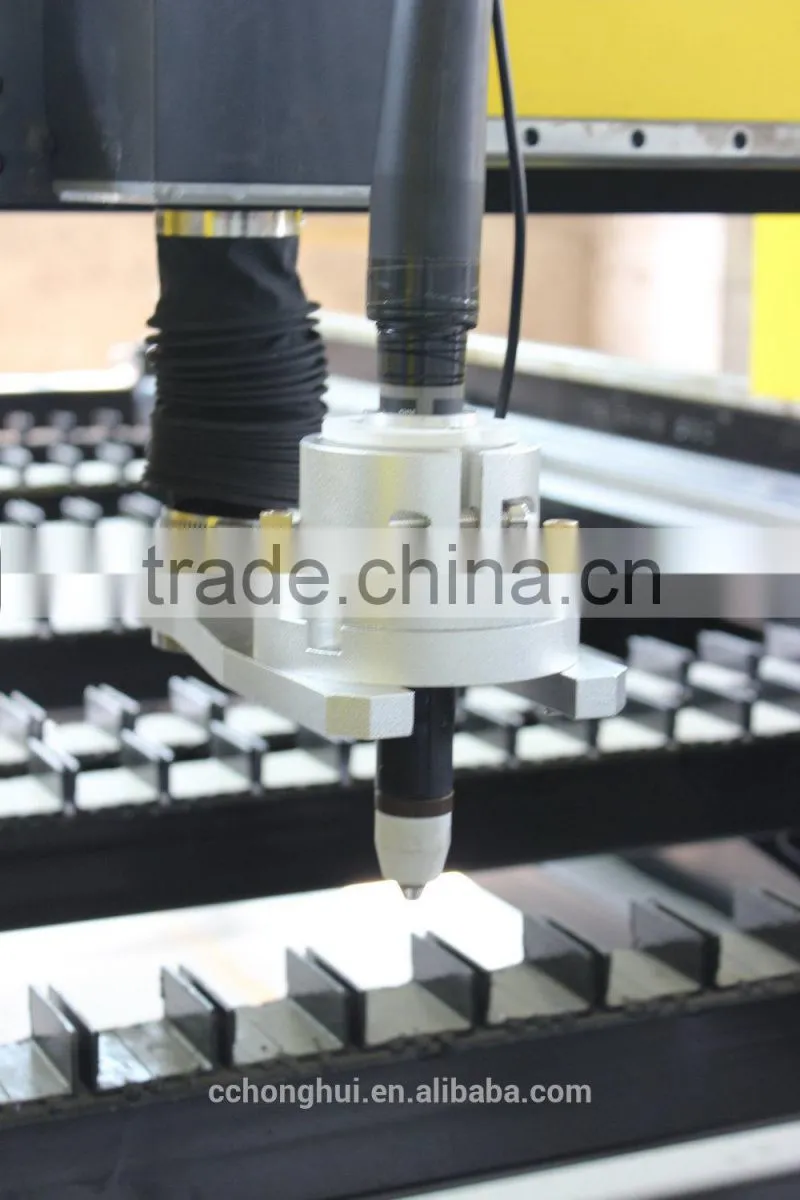

Main parts of fine table cnc plasma cutting machine
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
