Help CenterTable Cnc Plasma Cutting Machine for Metal Sheets
Related Products
-
Portable Cnc Gas Cutting Machine for Metal CuttingUS$ 1,880 - 2,580MOQ: 1 Set -
Portable Flame Cutter Mini Cnc Cut MachineUS$ 1,880 - 2,580MOQ: 1 Set
-
ZT Series Straight Flame Cutting MachineNegotiableMOQ: 1 Set
-
CNCTG Series Cnc Fine Plasma Cutting MachineNegotiableMOQ: 1 Set
-
Portable Plasma Cutting Machine Plasma Cutter Metal Plasma Cut MachineUS$ 1,980 - 2,580MOQ: 1 Set
Specifications
With knife or vertical bar tableGood performance on thin plate
High precision guide rail
Plasma and flame torch optional
table cnc plasma cutting machine, table cnc plasma cutter, cnc plasma cutting table, cutting table, plasma cutter, desktop cnc plasma cutter, cnc cut machine, cnc cut off machine, metal cutting machine, steel cutter, aluminum cutting machine

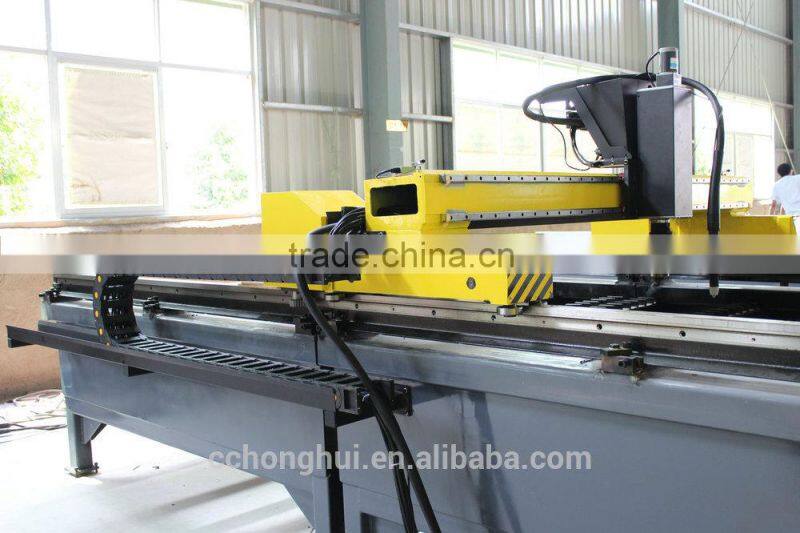

Table cnc plasma cutting machine adopts seperated frame type cutting table, can be equipped with zigzag or straight bar on the table surface.
Table cnc plasma cutting machine have excellent performance when cutting thin sheets, such as less than 10mm sheets.
The main structure and features of table cnc plasma cutting machine
1. The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction.

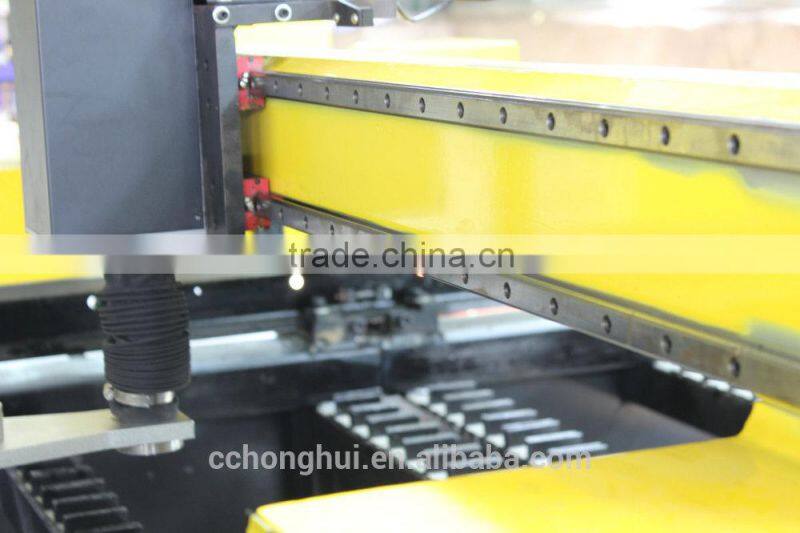

2. Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
3. Automatic memory function when power off or emergency stop.
4. Auto alarm function when faced with a mistake or arc breaking.
5. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
6. 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of table cnc flame cutting machine
| Configuration | |||||
| Structure | Seperated frame structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 24kg level H guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 0.5 to 50mm | ||||
| Cutting speed | 50 to 10000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Operation language | Multilanguage | ||||

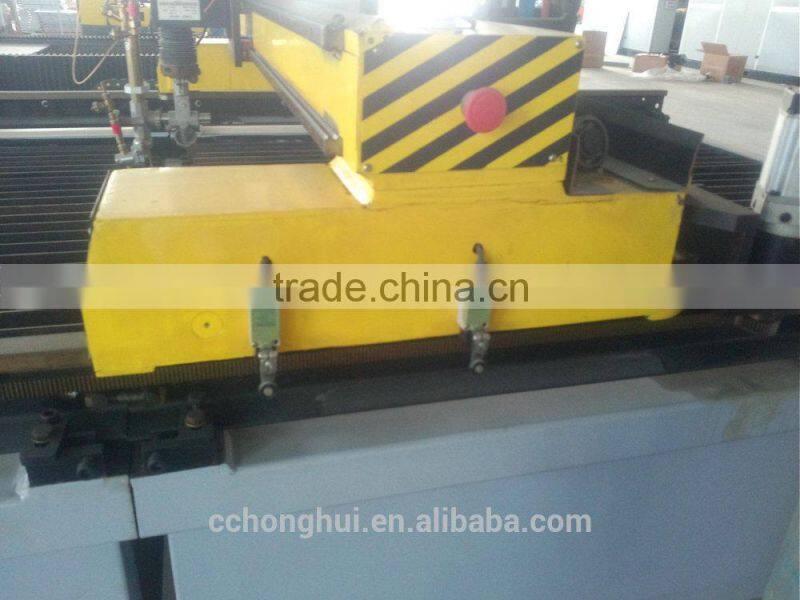

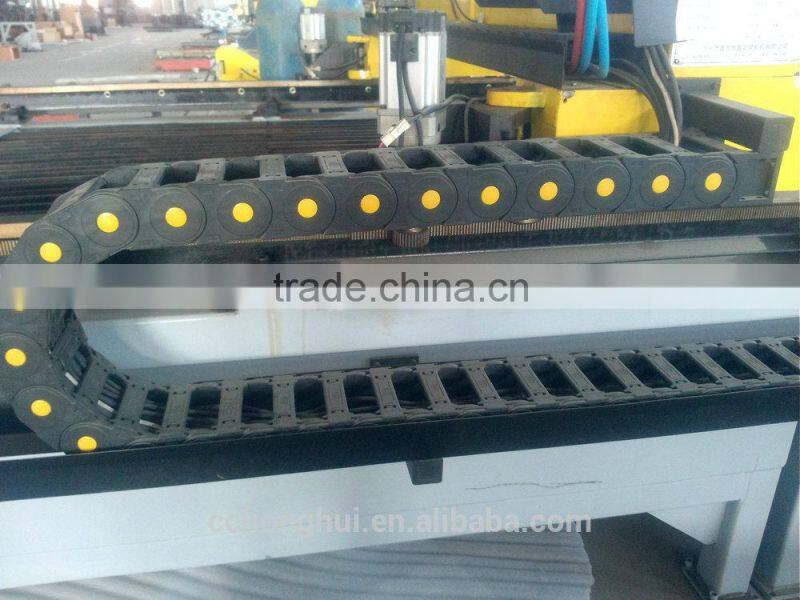

Main parts of table cnc plasma cutting machine
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
