Help CenterPortable Cnc Gas Cutting Machine for Metal Cutting
Related Products
-
Portable Flame Cutter Mini Cnc Cut MachineUS$ 1,880 - 2,580MOQ: 1 Set -
ZT Series Straight Flame Cutting MachineNegotiableMOQ: 1 Set
-
CNCTG Series Cnc Fine Plasma Cutting MachineNegotiableMOQ: 1 Set
-
Portable Plasma Cutting Machine Plasma Cutter Metal Plasma Cut MachineUS$ 1,980 - 2,580MOQ: 1 Set
-
Cnc Pipe Profile Cutting MachineUS$ 28,000 - 45,000MOQ: 1 Set
Specifications
Light weight, portableAuto tempering device inside the cutting torch
Less adhering slag, smooth and precise
portable cnc cutting machine, cnc gas cutting machine, cnc flame cutting machine, mini cnc machine, light cnc cutting machine, cnc cut off machine, flame cutter, gas cutter, cnc cut machine

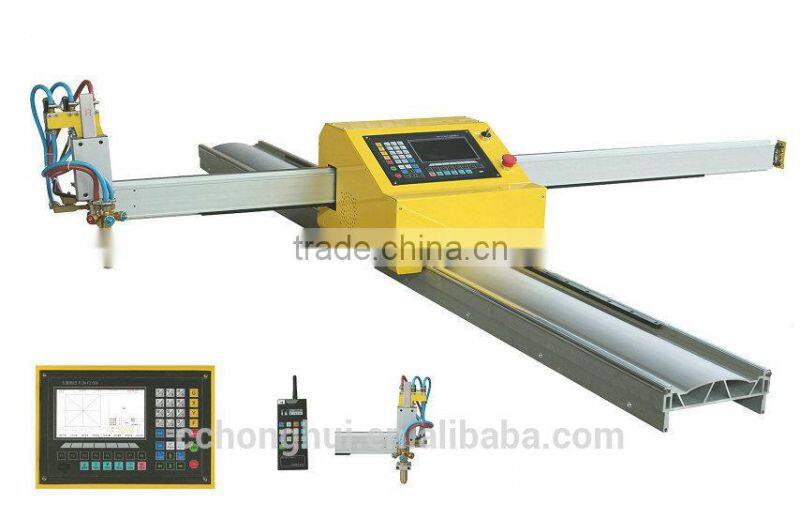

Portable cnc cutting machine adopts aluminum alloy as its guide rail and crossbeam, is light weight and portable and take less space to work.
With the properties of good quality, high precision and strong operability, portable cnc gas cutting machine can cut mild steel sheets of different thickness, cutting ability is comparable with laser cutting when price is much lower. It is widely used in shipbuilding, light industry machinery and other manufacture with the advantages of easy to install, light weight and take less space.
Portable CNC gas cutting machine can cut 5 to 150mm sheets by using different cutting torch size.
The main structure and features of portable cnc gas cutting machine
1. Automatic memory function when power off or emergency stop.
2. Auto alarm function when faced with a mistake or arc breaking.
3. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
4. 7" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of portable cnc gas cutting machine
| Configuration | |||||
| Drive motor | Stepper motor | ||||
| Reducer | planetary | ||||
| Crossbeam guide rail | Aluminum alloy guide rail | ||||
| Guide rail | Aluminum alloy guide rail | ||||
| CNC system | SJTU-SK (START optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | Automatic THC | ||||
| Flame cutting torch | Xinsanhu | ||||
| Cutting gas | Oxygen and propane or acetylene | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Cutting thickness | 5 to 150mm | ||||
| Cutting speed | 50 to 5000 mm/min | ||||
| Travel speed | 1 to 8000 mm/min | ||||
| Cutting width | 0.5m less than track width | ||||
| Cutting length | 1m less than track length | ||||
| Cutting material | mild steel | ||||
| Operation language | Multilanguage | ||||
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
