Three Phase Solid State Relay 100A SSR, 3-phase Solid State Relay 100A SSR IBEST

Zhongshan IBEST Electrical Co., Ltd.

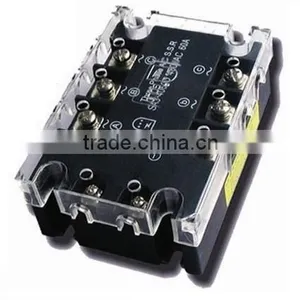

Three Phase Solid State Relay 100A SSR, 3-phase Solid State Relay 100A SSR IBEST thumbnail-1
Three Phase Solid State Relay 100A SSR, 3-phase Solid State Relay 100A SSR IBEST photo-1
US$ 12 - 30 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
SSR-3-100A Series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number SSR-3-100A Series
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power

Specifications

Three Phase Solid State Relay
1.SSR :15A, 25A, 40A, 50A, 80A, 100A
2.with CE approval, quality reliable, high quality

1.Features of IBEST 100A Three phase Solid State Relay  :



-         Load current range: AC 100A ( Other range: 5A, 15A, 25A, 40A, 50A, 60A, 80A, 100A. )



-         Load voltage range: AC 24~660V AC.



-         Control voltage: DC 3~32V; Control current: 6mA~25mA.



-          Input constant current control, AC Zero point On and OFF function



-          Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.



-          Optic isolated (≥ 2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.



-          Input or output LED indication.



-         Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.



-         Reliable quality to replace famous brands .





2. Ordering Code
Model and TypeLoad CurrentLoad VoltageControl VoltageAppearance Buy
SSR-3-15A AC 15A AC 24~660V DC 3~32V Normal
SSR-3-25A AC 25A AC 24~660V DC 3~32V Normal
SSR-3-40A AC 40A AC 24~660V DC 3~32V Normal
SSR-3-50A AC 50A AC 24~660V DC 3~32V Normal
SSR-3-60A AC 60A AC 24~660V DC 3~32V Normal
SSR-3-80A AC 80A AC 24~660V DC 3~32V Normal
SSR-3-100A AC 100A AC 24~660V DC 3~32V Normal




3.Technical Specifications:
Property projectSpecific parameter
Max. Load CurrentAC 15A, 25A, 40A,  50A, 80A, 100A
Load VoltageAC 24~660V
Isolated Voltage>2000V AC 1 min.
Insulation Voltae>2000V AC 1 min.
Control VoltageDC 3~32V
Control Current6mA~25mA
Turn-On Voltage< 1.3V
Off-set leakage300v/us
On - Off Time100ms
Frequency Range47/63 Hz
Status IndicatorRed LED
Ambient Temperature-40~80 C
Net Weight750g





Our company is a professiona manufacutures of:



1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.

Three phase Solid State Relay 100A SSR, 3-phase Solid State Relay 100A SSR IBEST<img src="/img/pb/644/291/566/566291644_761.JPG" alt="IBEST Inducitve Proximity Sensor, Proximity Switch" ori-width="800" ori-height="667">





Welcome to contact us!
